Description
Description

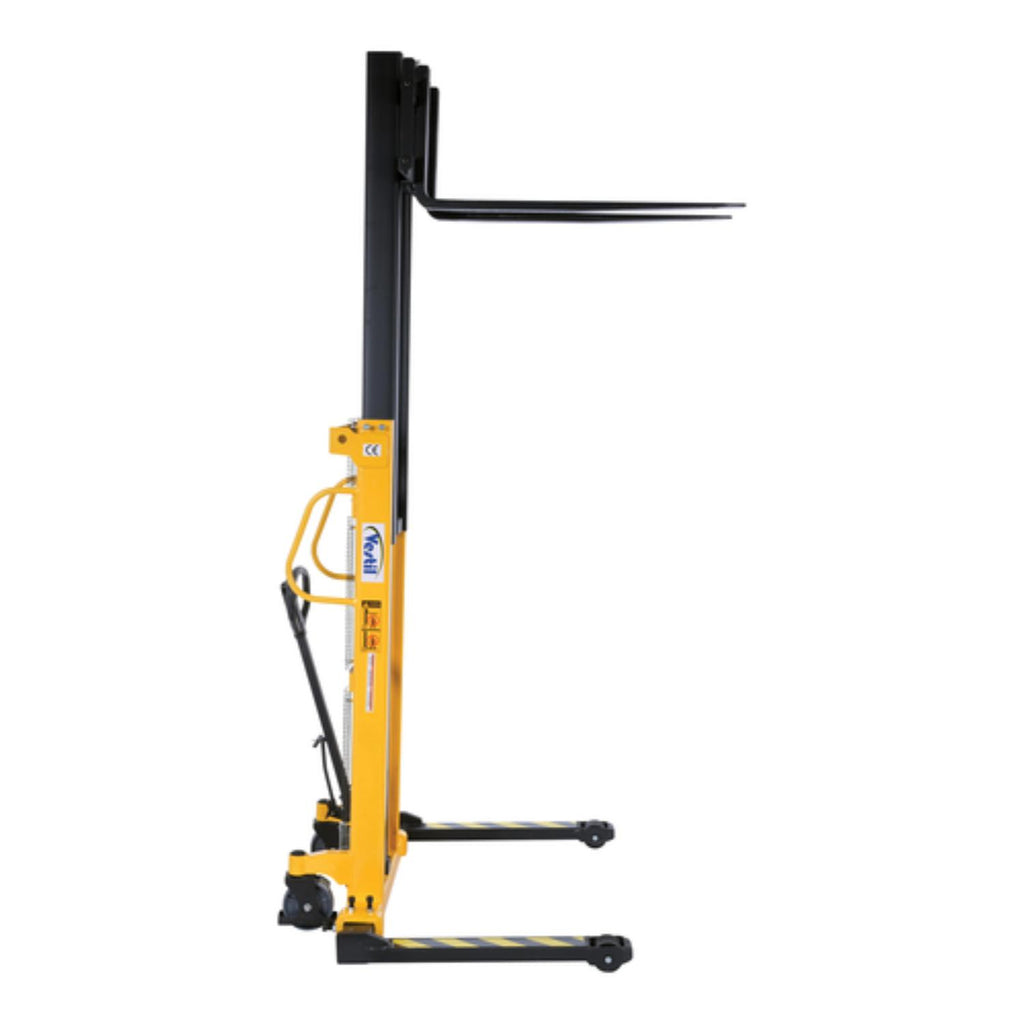

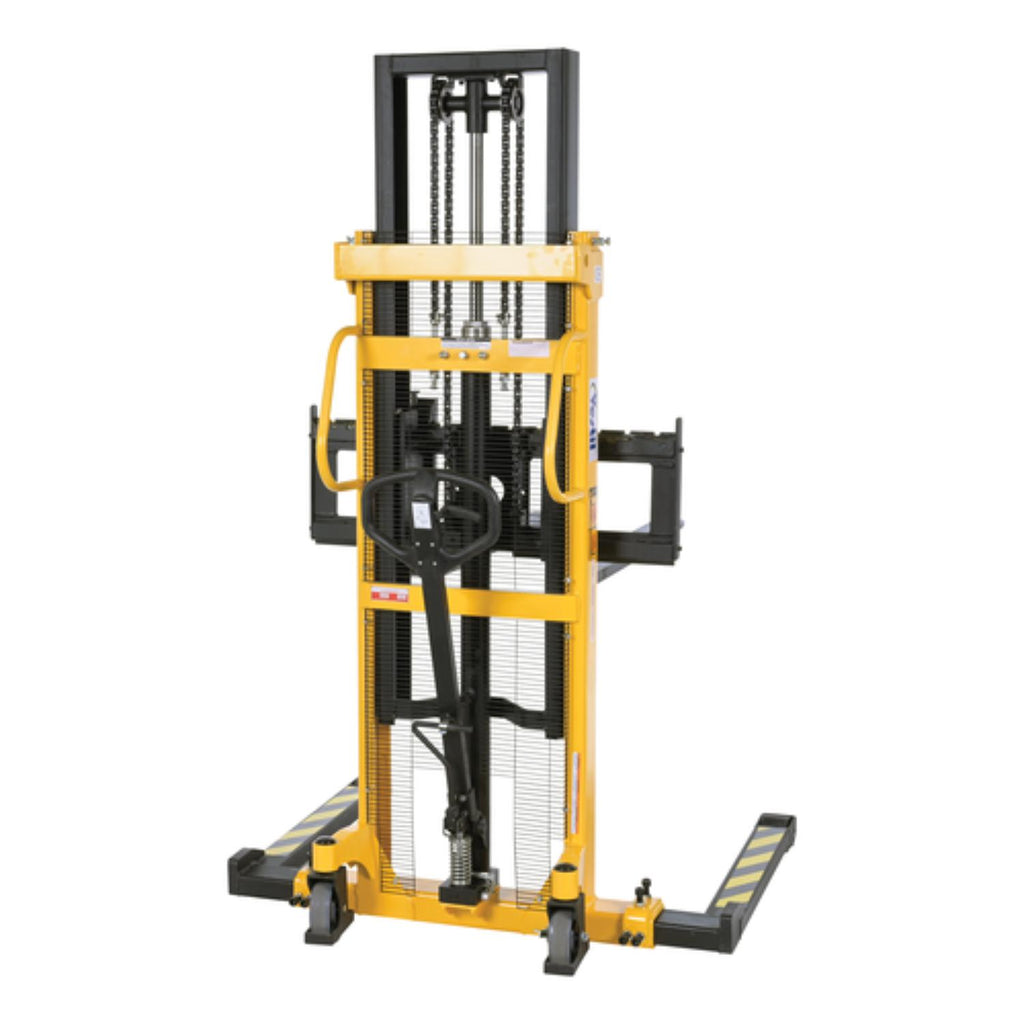

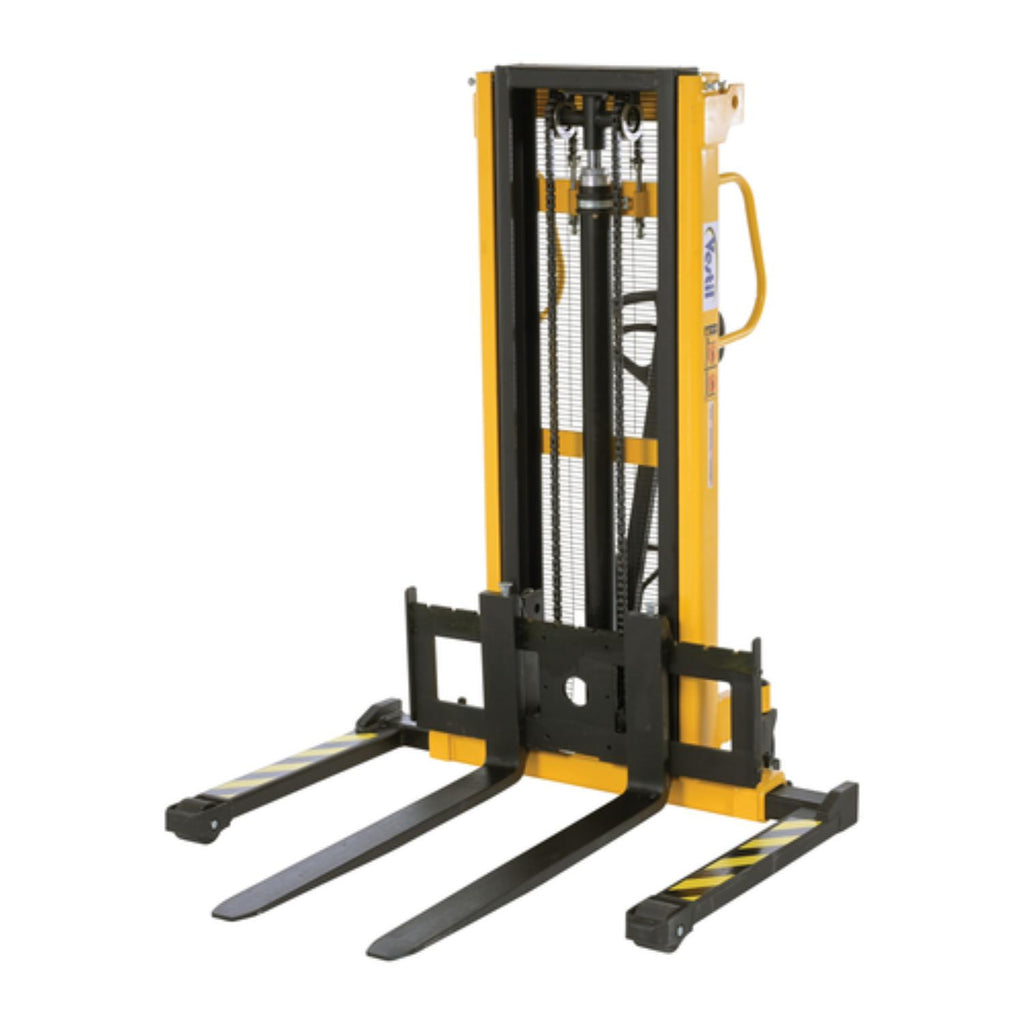

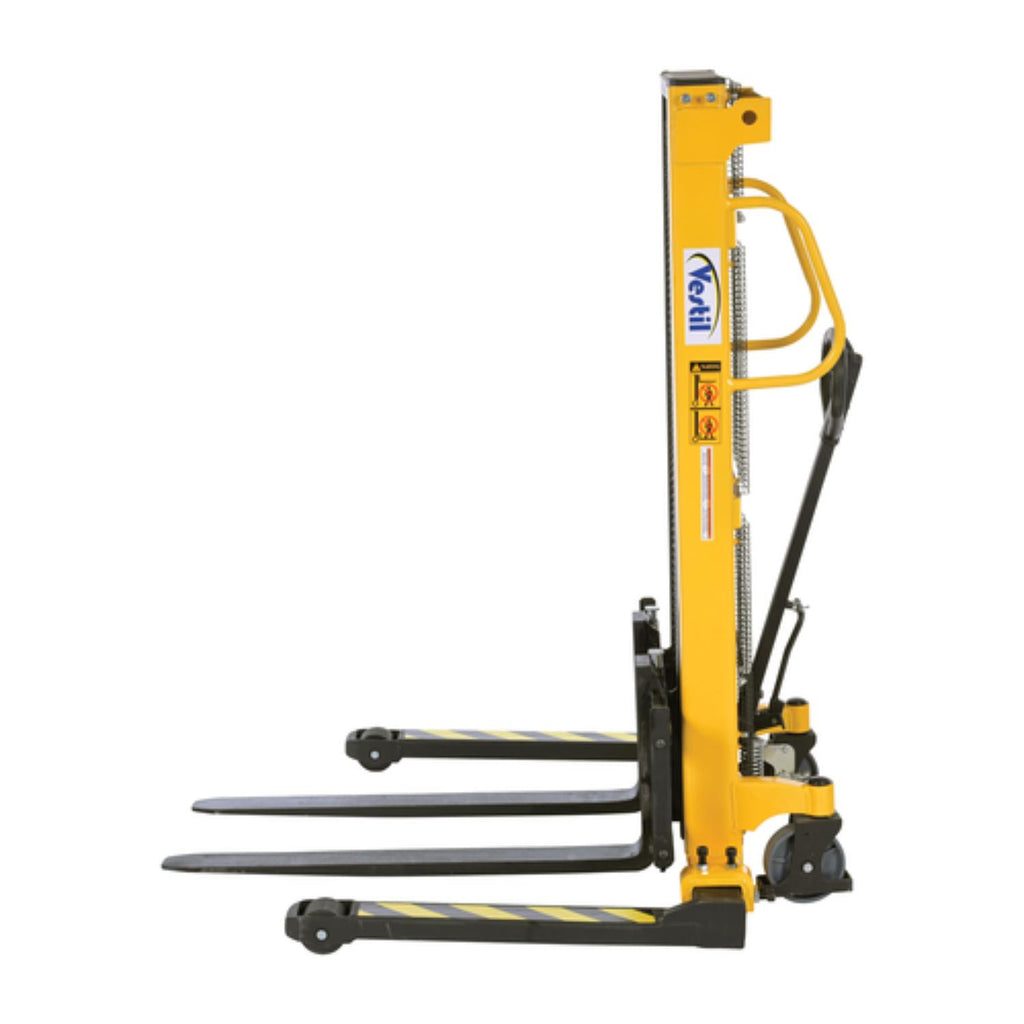

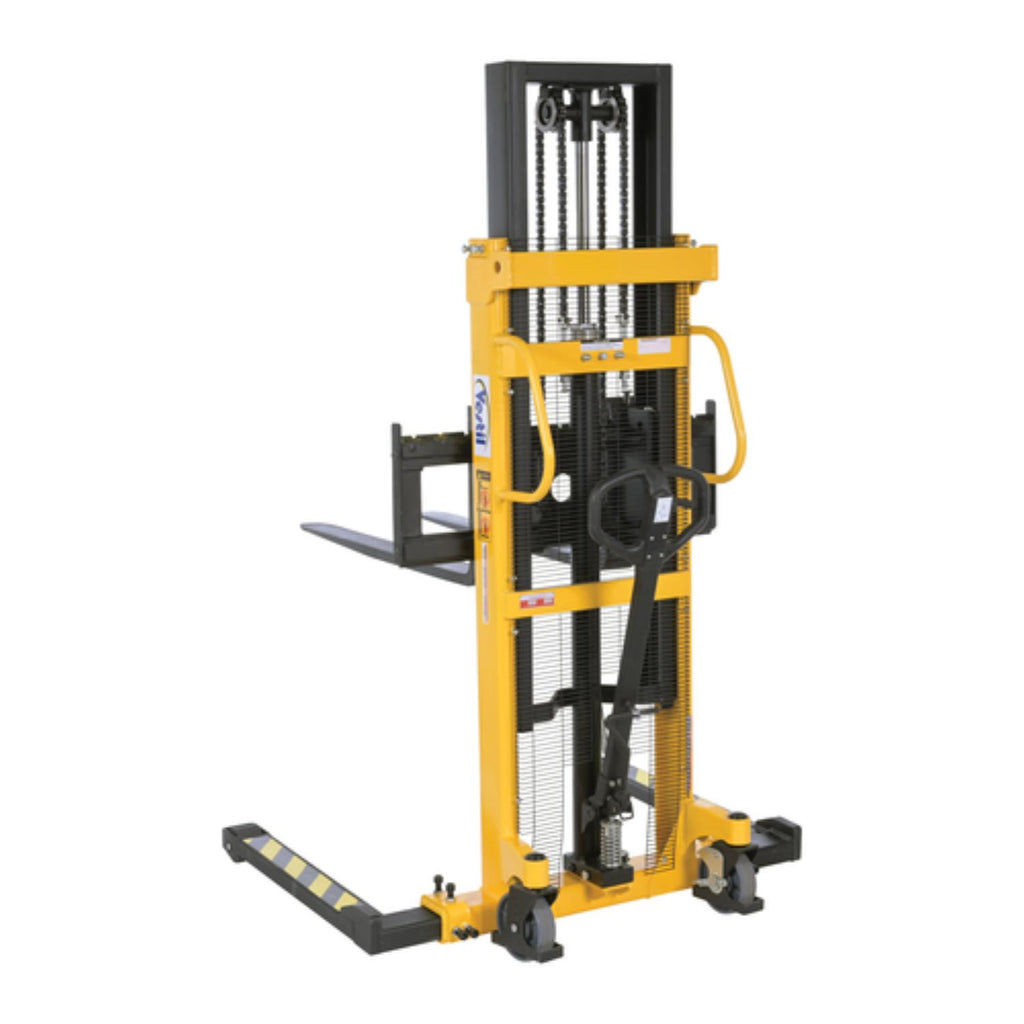

The manual stacker is ideal for use in various workplace applications. It is maintenance free and easy to use. An upright welded mesh guard protects, while still provide excellent visibility. It features a heavy-duty mast and a unique winch design for easier and safer lifting. An optional removable platform is available.
Features
- Both hand and foot operated lift
- Adjustable forks and adjustable legs
- Full height push handle allows for easy steering
- Two (2) rigid and two (2) swivel wheels with brakes
Specifications
| Specification | Detail |
|---|---|
| Power Source | Manual |
| Maximum Lift Height (in) | 98.5 |
| Minimum Lift Height (in) | 1.375 |
| Maximum Travel Distance (in) | 97.125 |
| Weight Capacity (lbs) | 2200 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 1.375 |
| Maximum Width Between Forks (in) | 98.5 |
| Adjustable Legs | Yes |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 38 |
| Maximum Width Between Legs (in) | 50 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 7 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Steel |
| Overall Height (in) | 78 |
| Overall Width (in) | 46 |
| Overall Depth (in) | 61.25 |
| Weight (lbs) | 818 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
