Description
Description

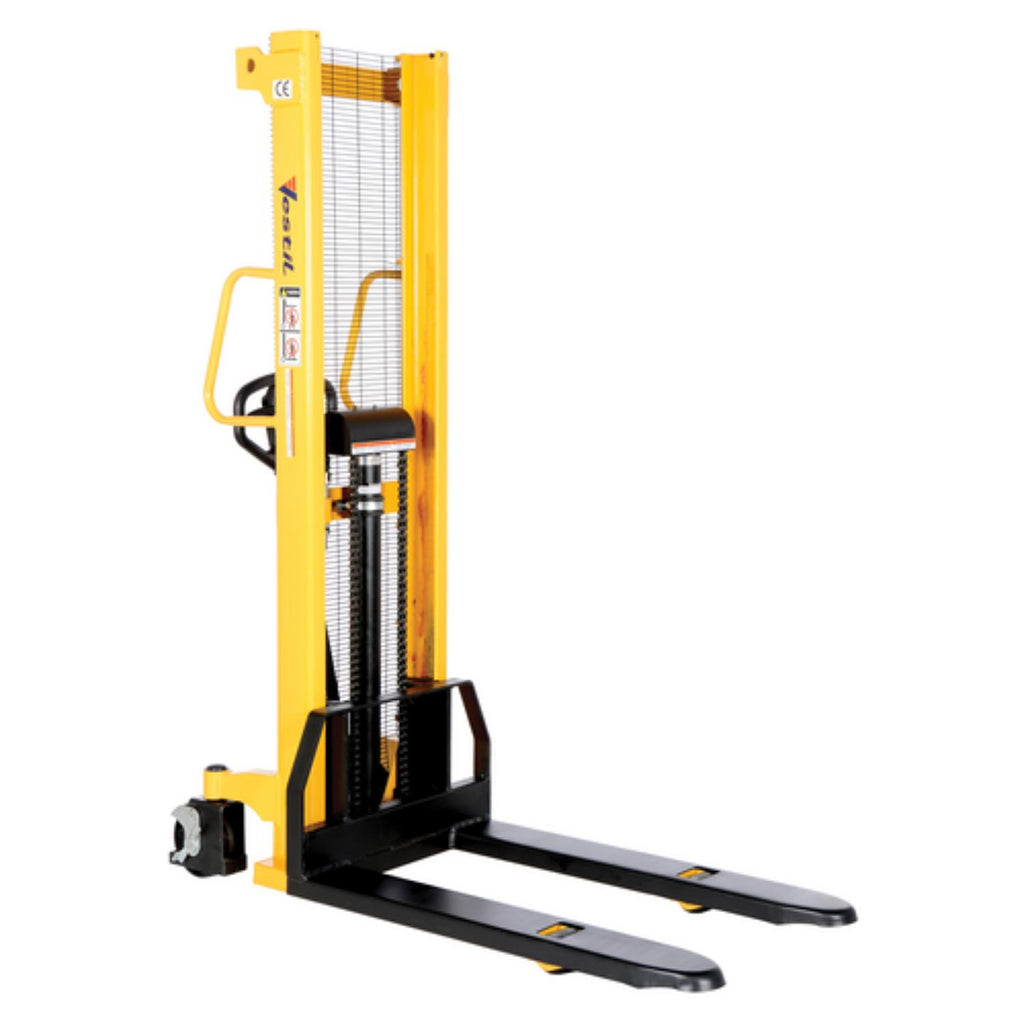

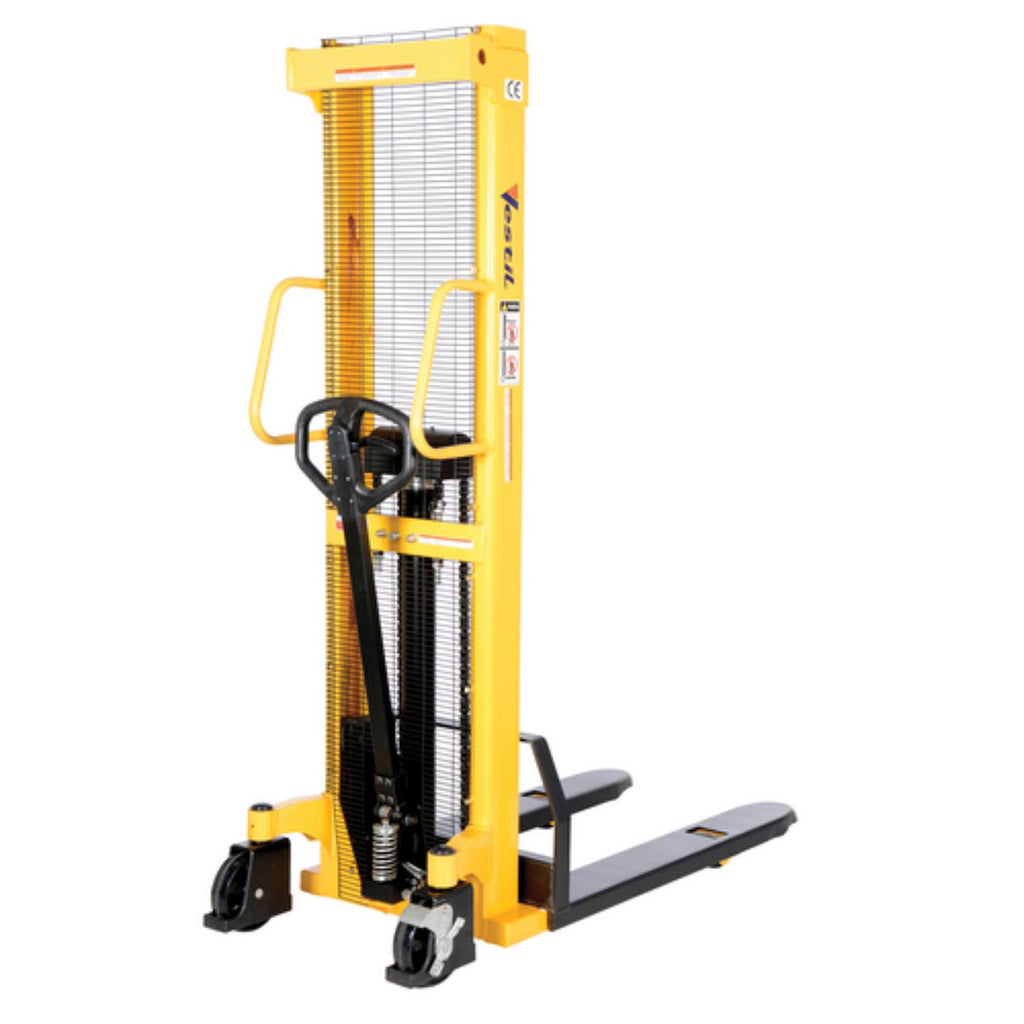

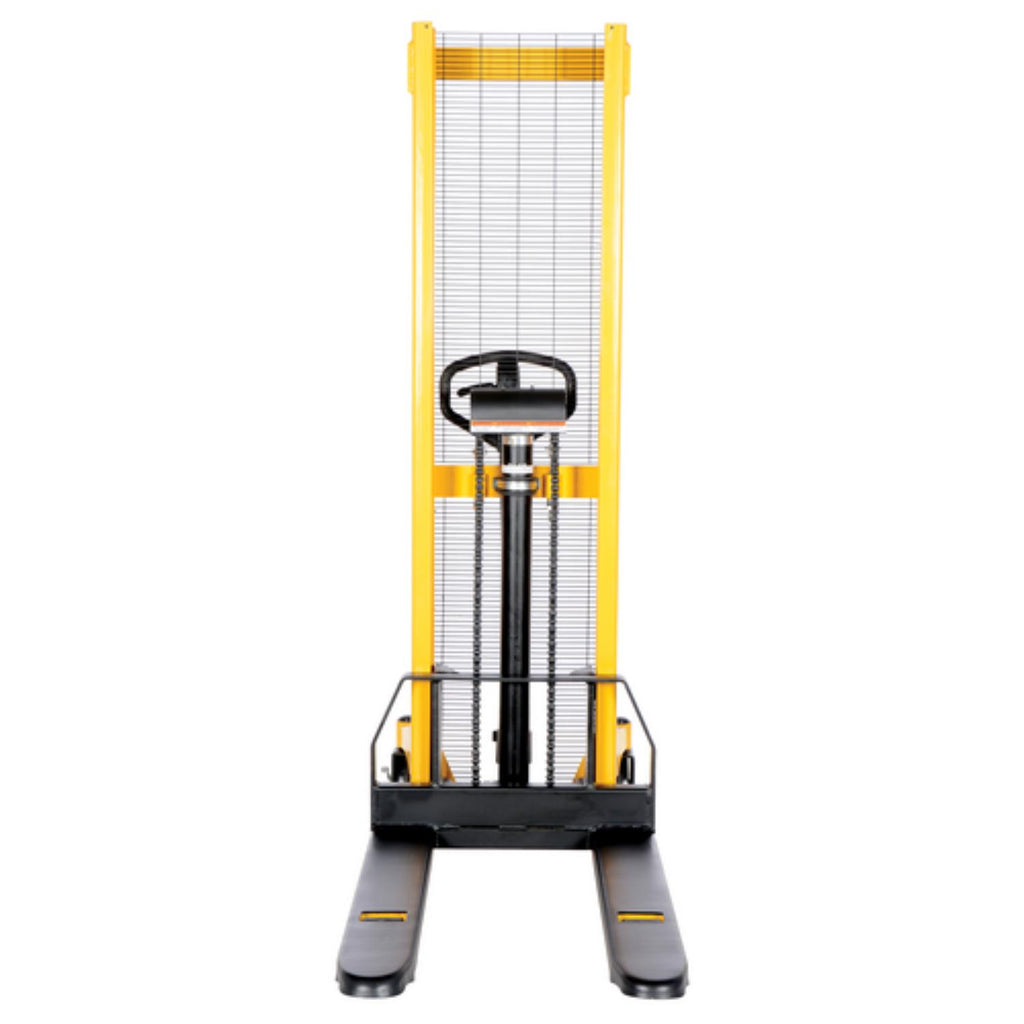

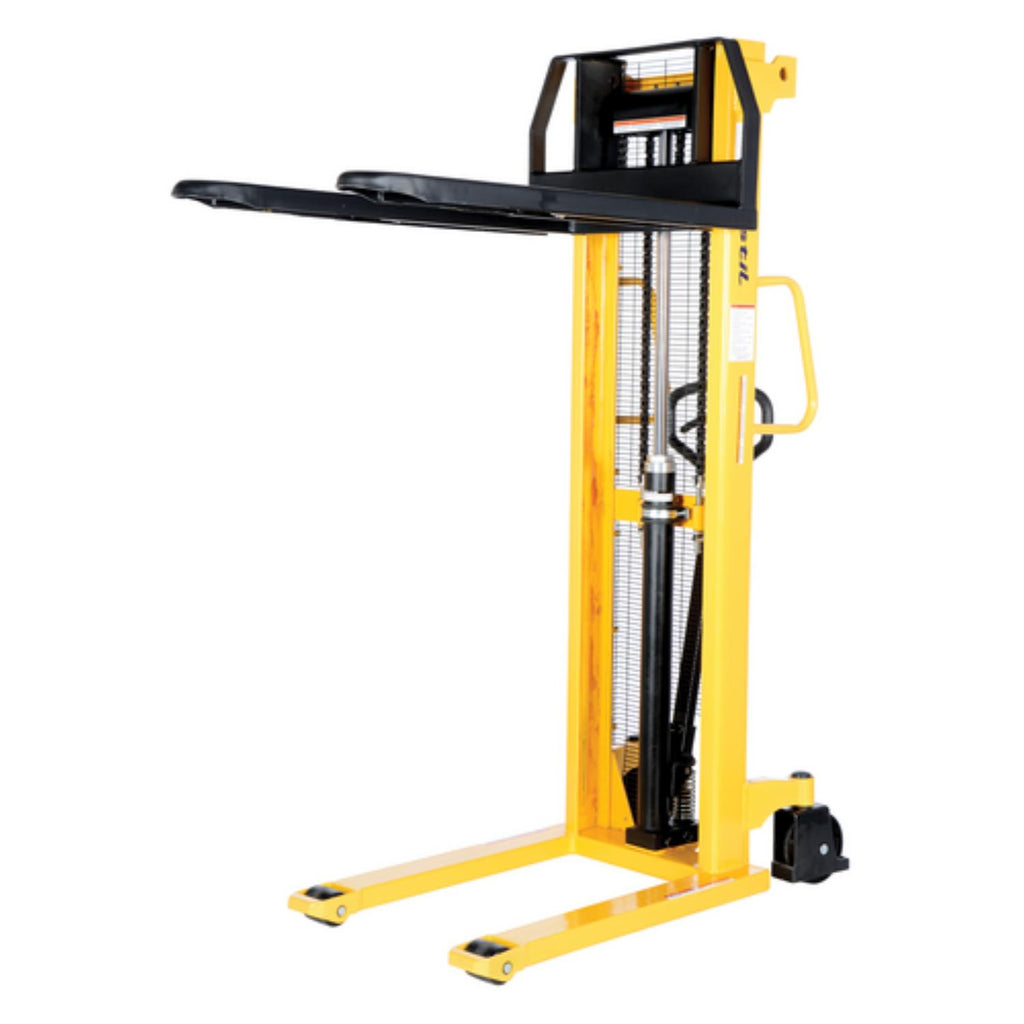

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The Hydraulic hand pump is sturdy and compact to fit through standard doors. The forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. The unit has two (2) rigid and two (2) swivel wheels standard.
Features
- Stacker design meets the most challenging tasks
- Unique design is maintenance free and easy to use
- Full height push handle allows for easy steering
- Rolls on smooth casters for stable maneuvering
Specifications
| Specification | Detail |
|---|---|
| Power Source | Manual |
| Maximum Lift Height (in) | 62 |
| Minimum Lift Height (in) | 3.75 |
| Maximum Travel Distance (in) | 59.25 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 5.9 |
| Adjustable Forks | No |
| Minimum Width Between Forks (in) | 24 |
| Adjustable Legs | No |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 22.75 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 7 |
| Rear Wheel Material | Nylon |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Nylon |
| Overall Height (in) | 78 |
| Overall Width (in) | 27.375 |
| Overall Depth (in) | 60.25 |
| Weight (lbs) | 748 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
