Description
Description

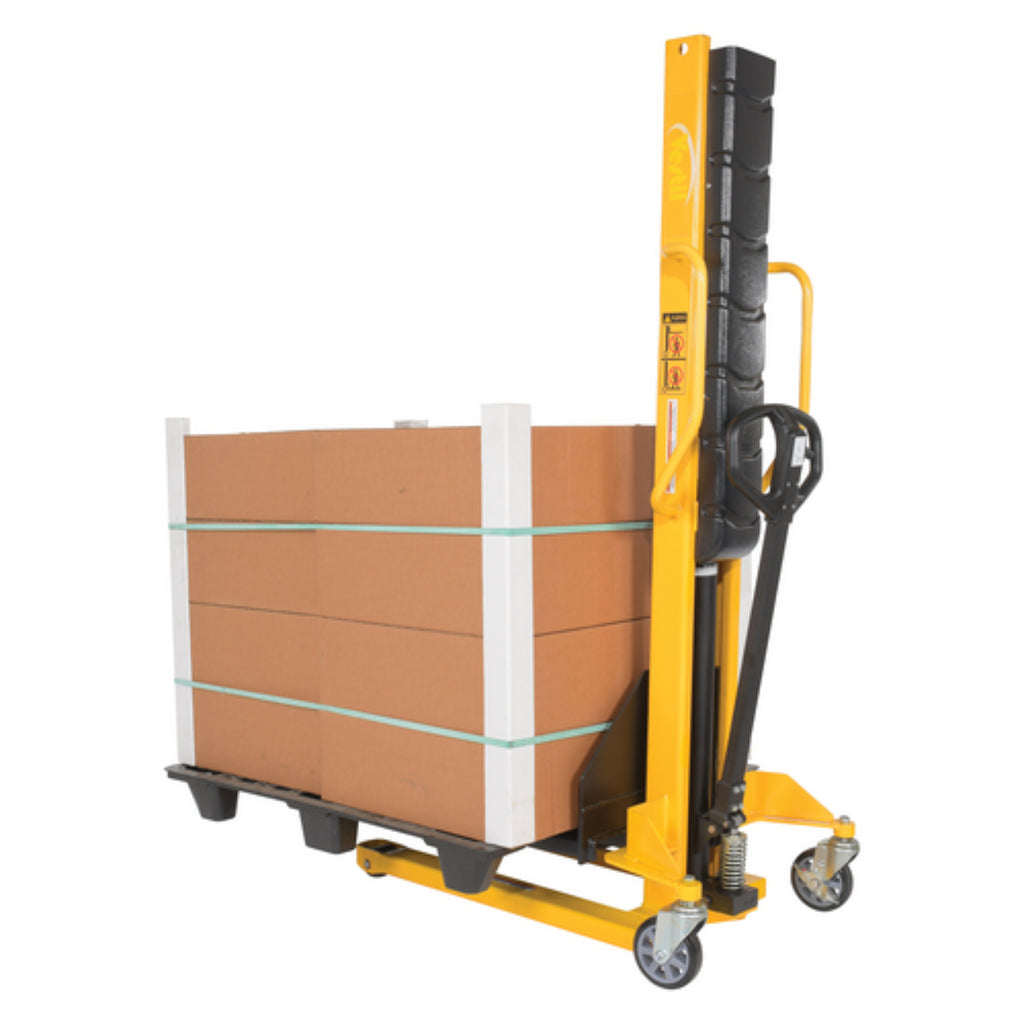

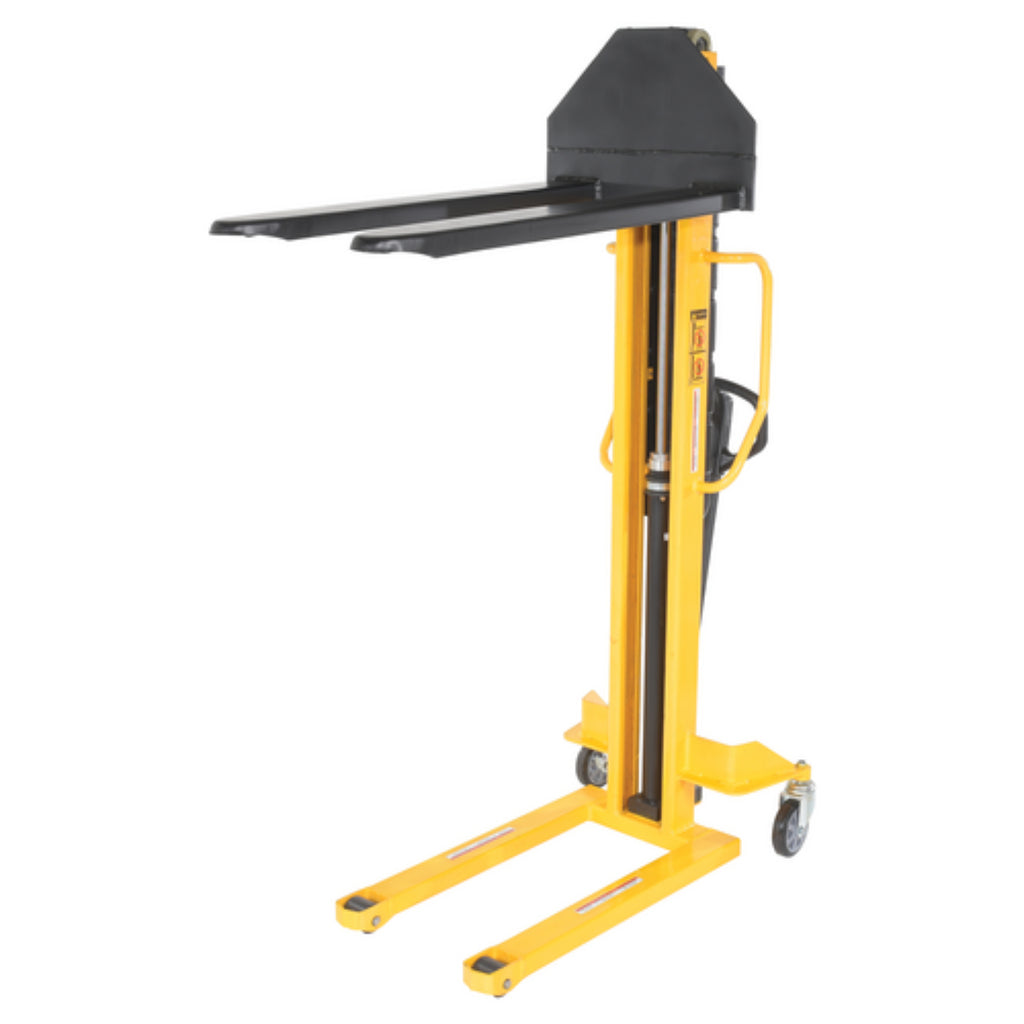

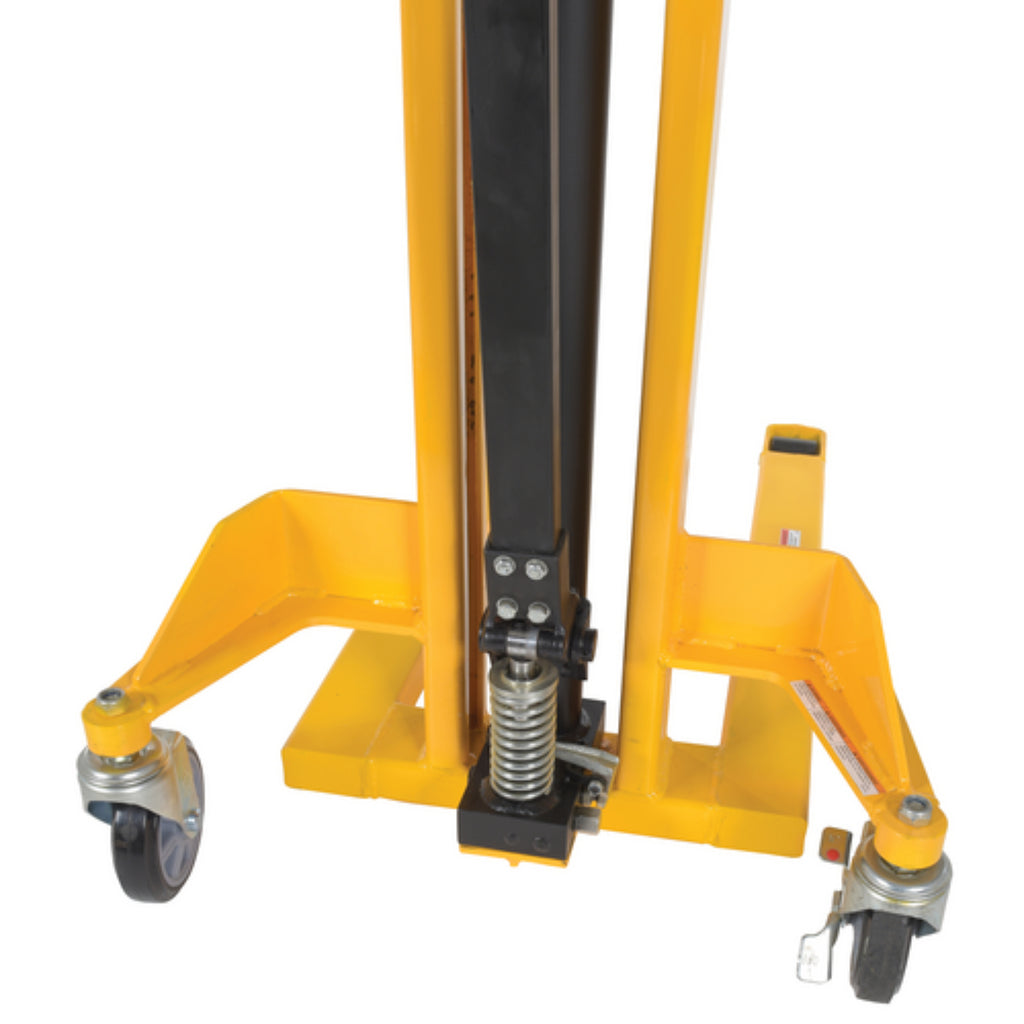

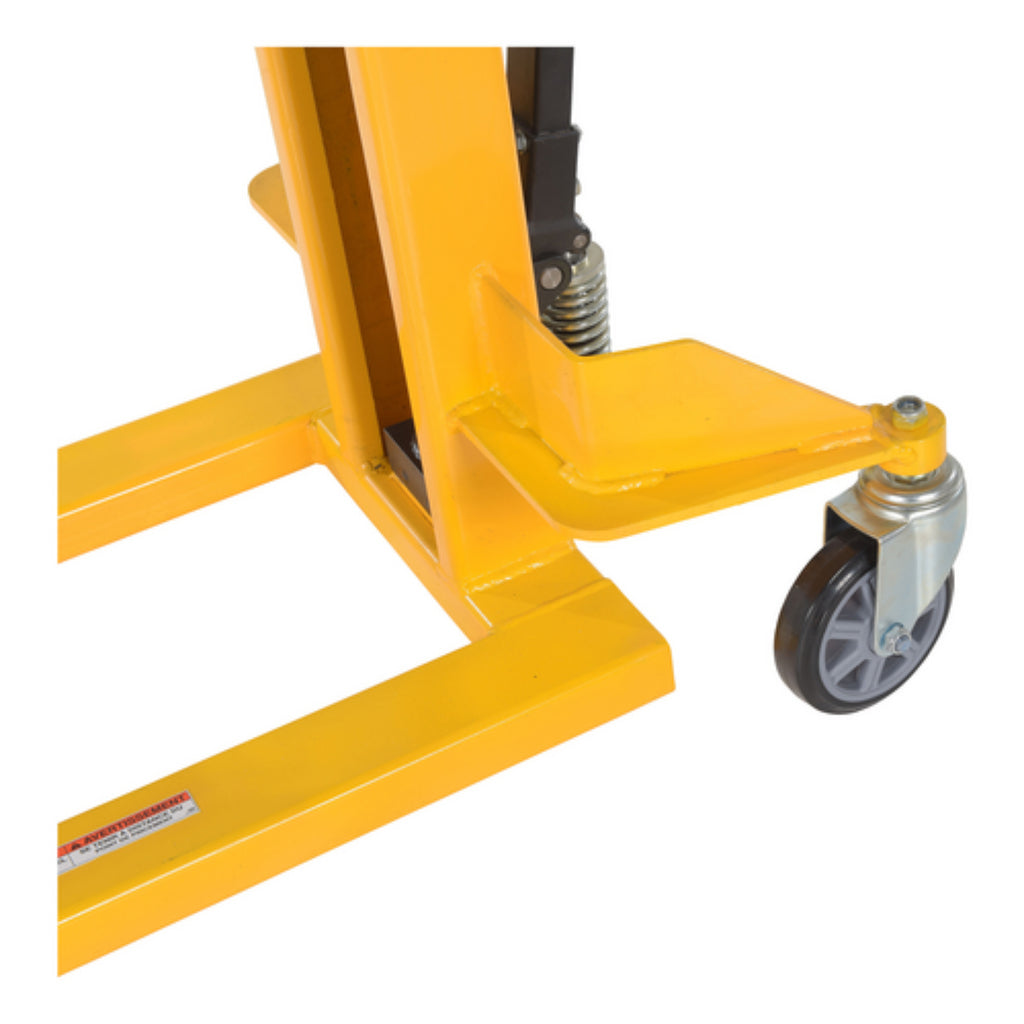

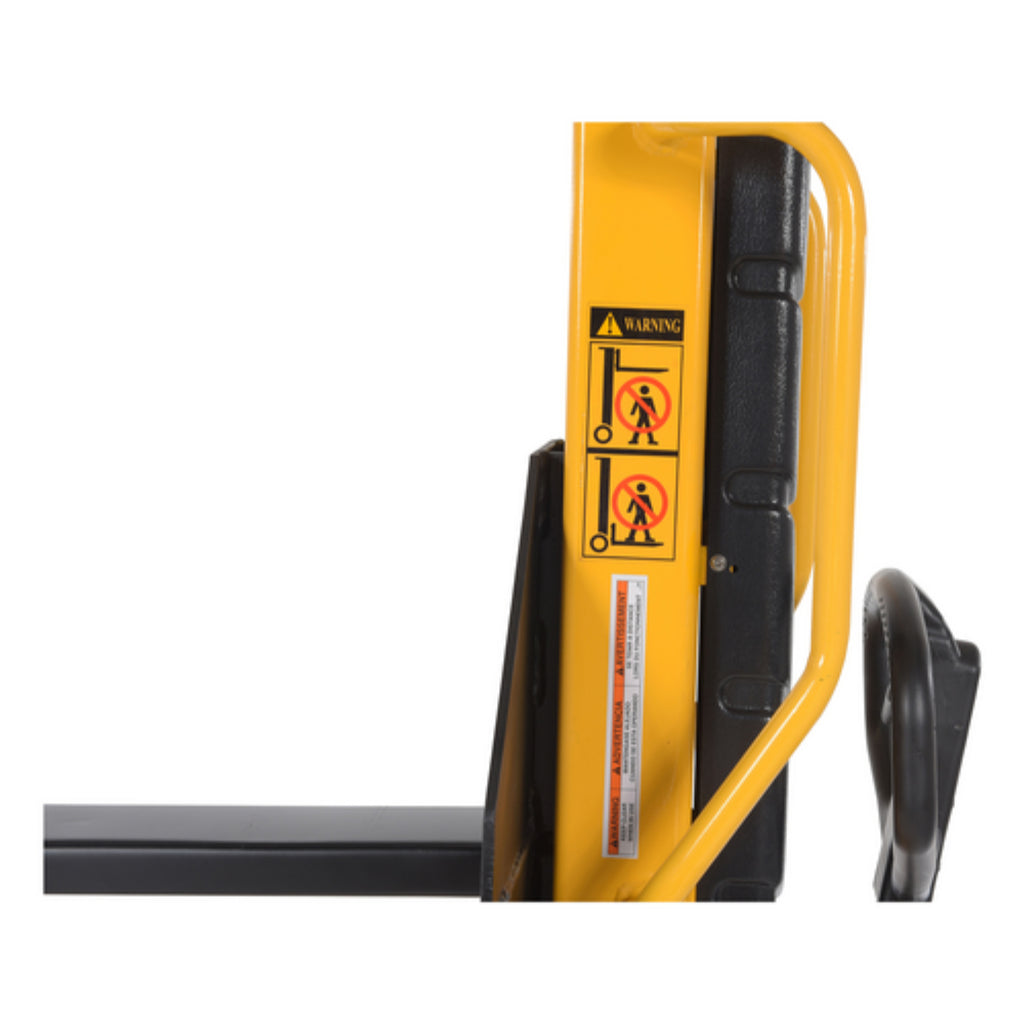

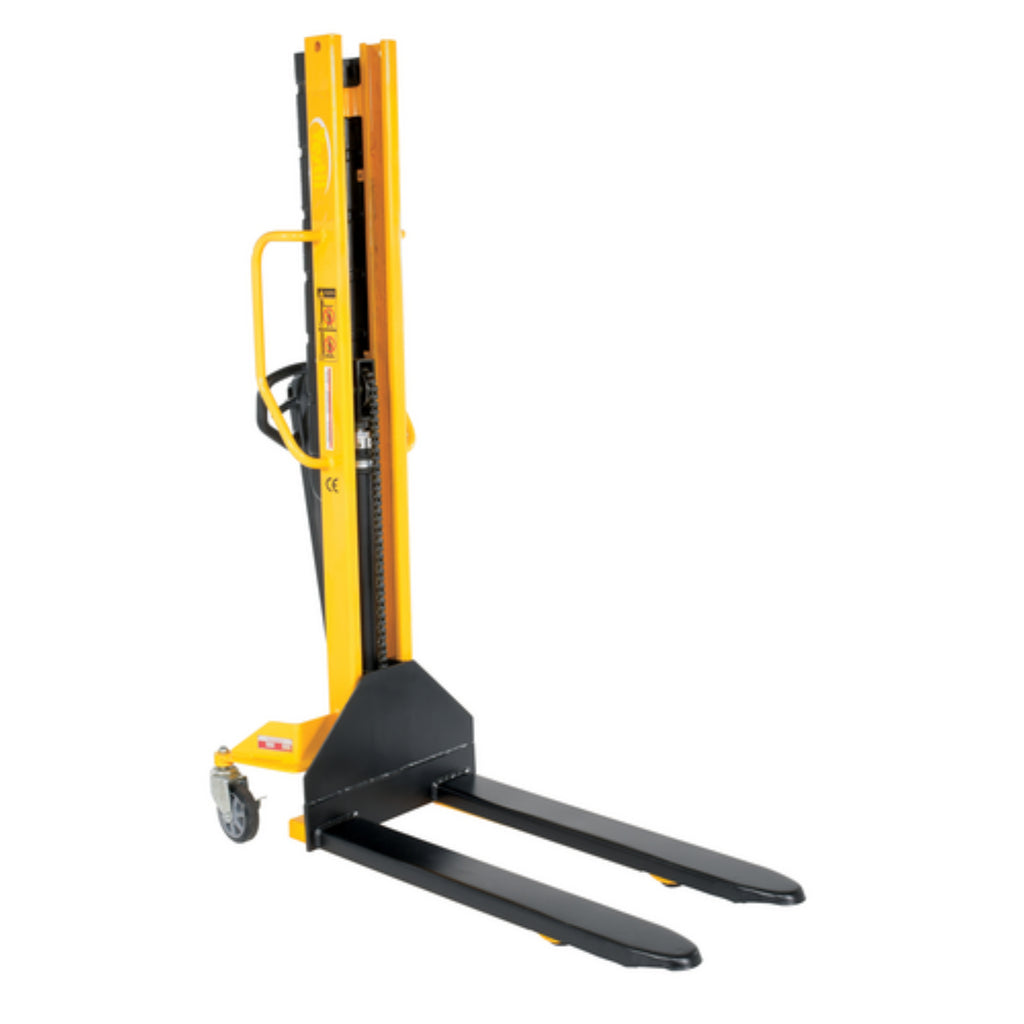

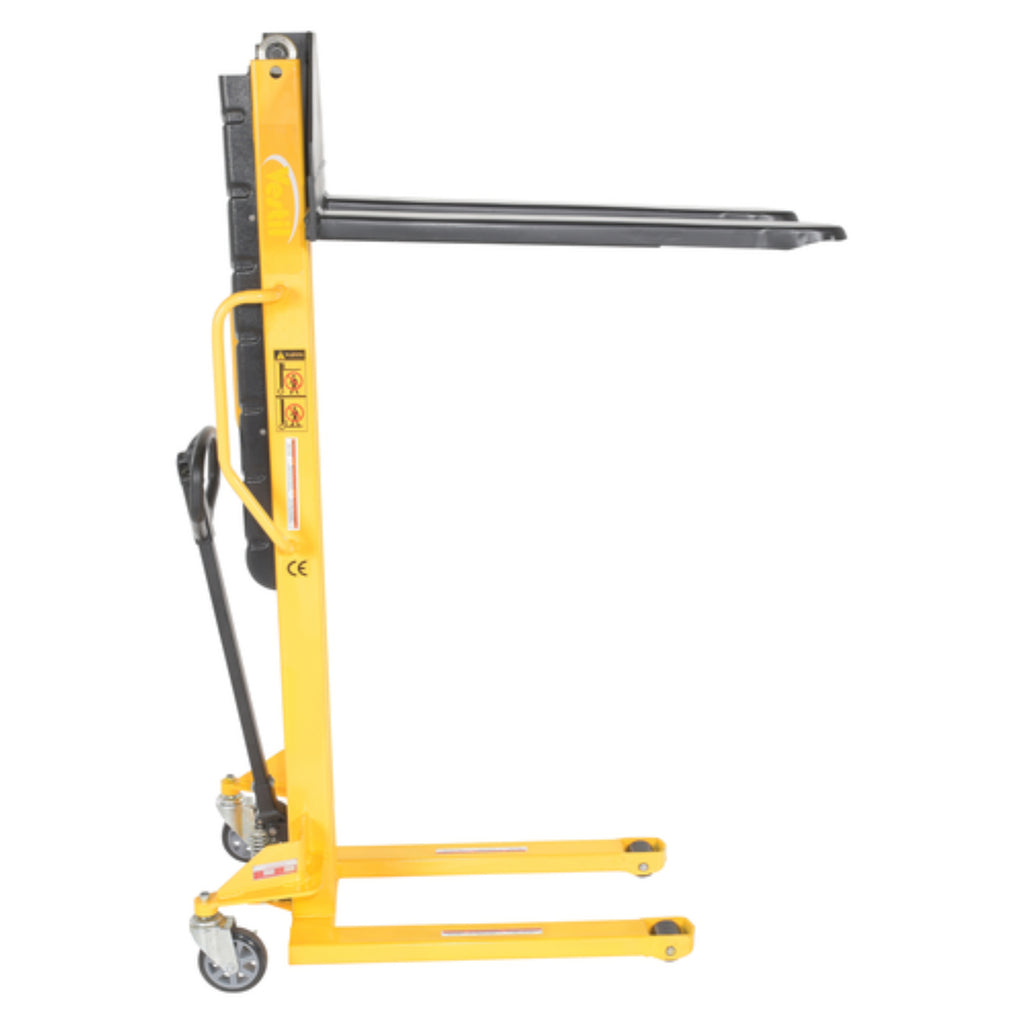

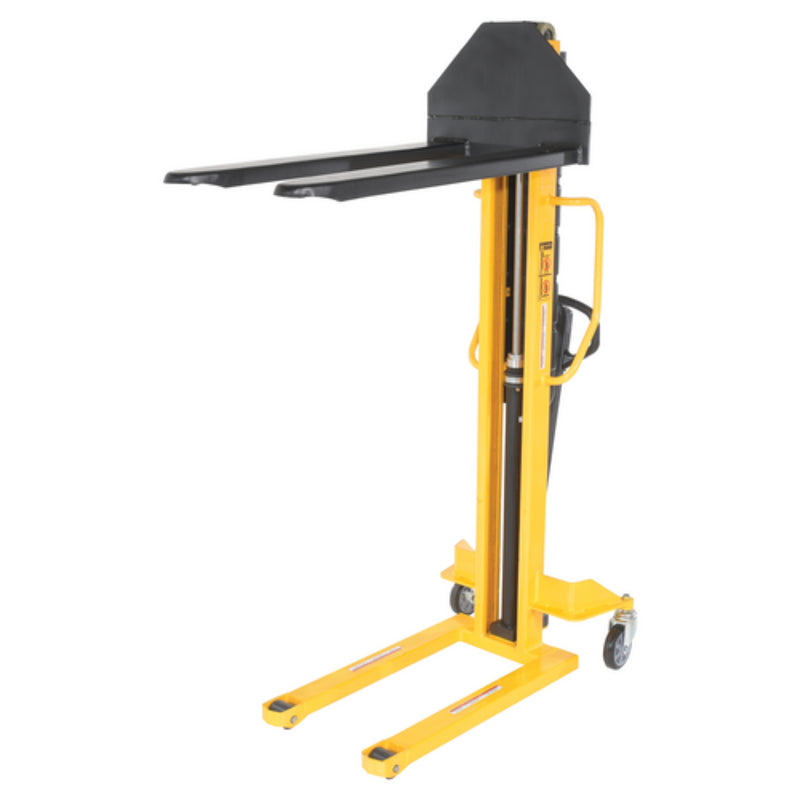

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.
Features

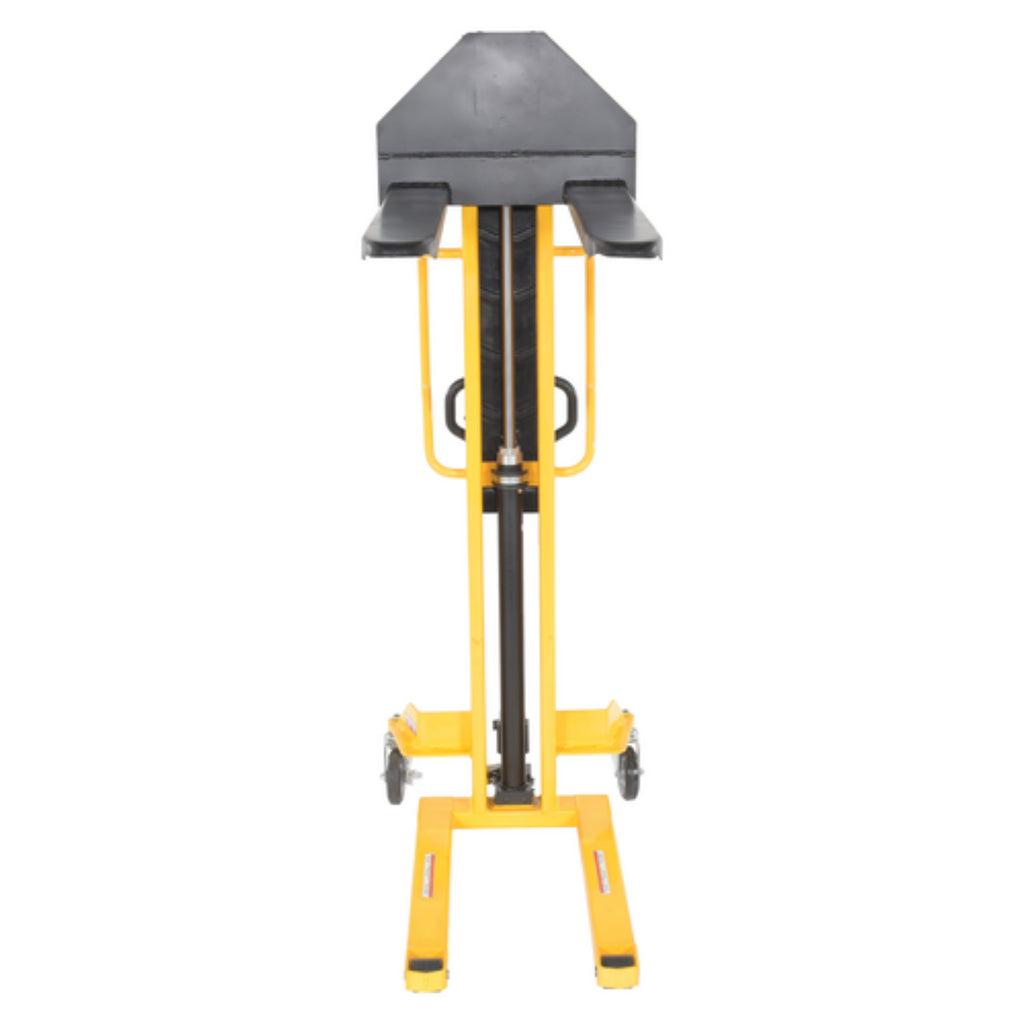

- Narrow mast to fit in compact areas
- Unique construction is maintenance free and easy to use

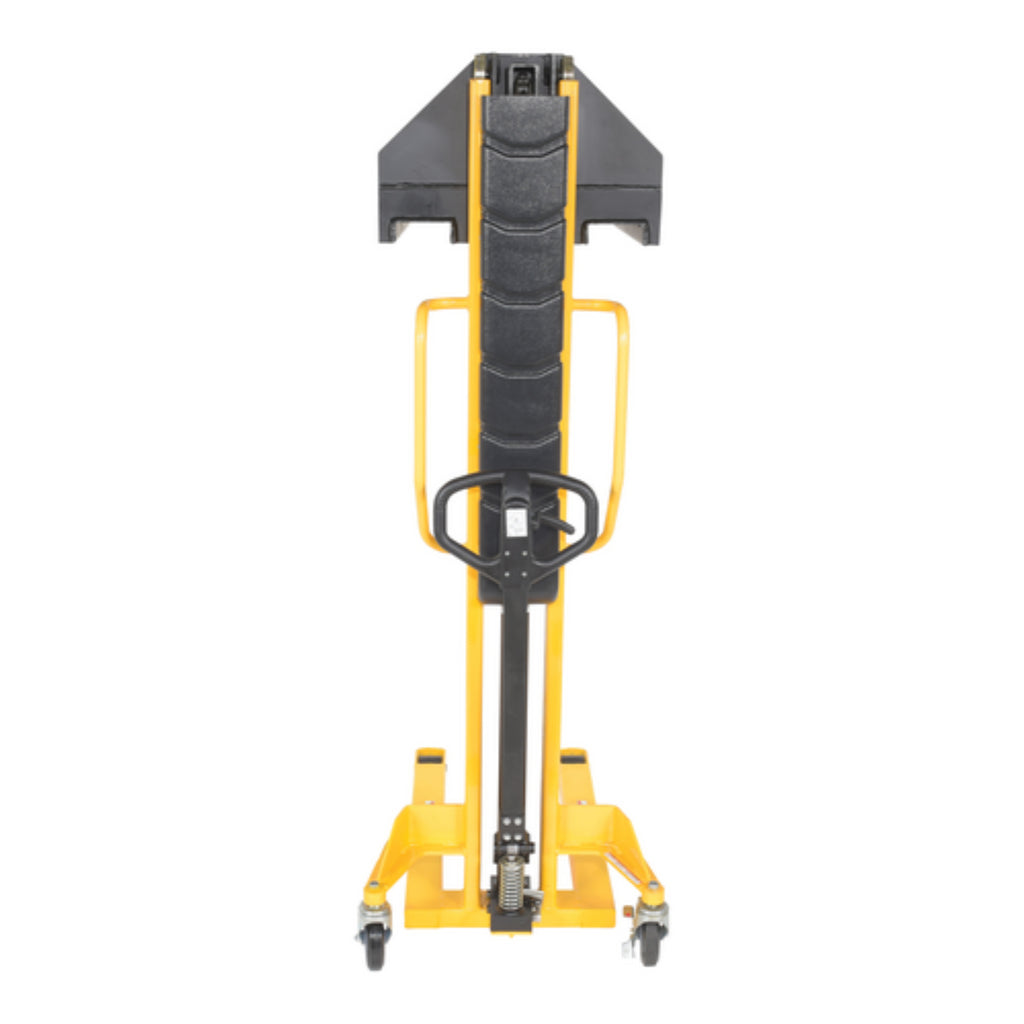

- Full height push handle allows for easy steering
- Design offers easier and safer lifting
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Maximum Lift Height (in) | 62 |
| Minimum Lift Height (in) | 3.5 |
| Maximum Travel Distance (in) | 58.5 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |

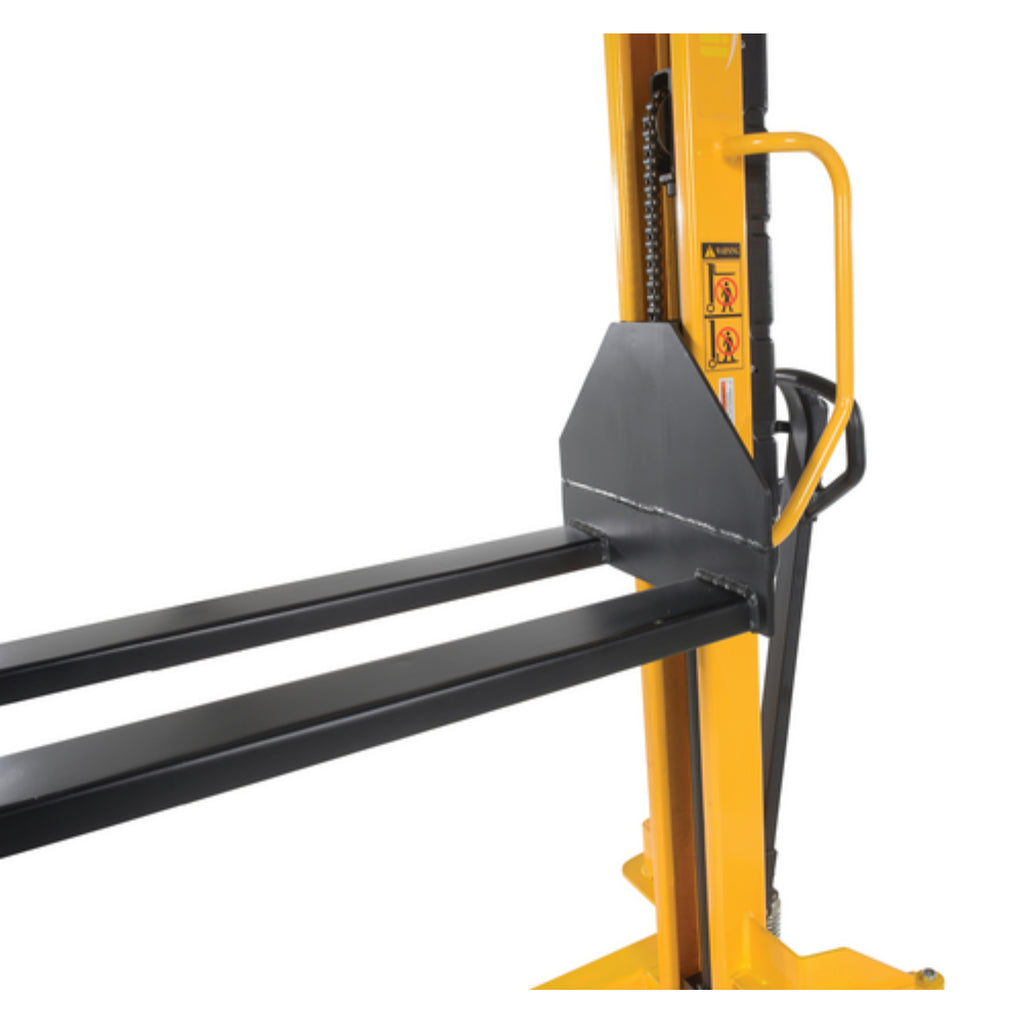

| Fork Length (in) | 42.125 |
| Fork Width (in) | 5.313 |
| Adjustable Forks | No |
| Minimum Width Between Forks (in) | 21.625 |
| Adjustable Legs | No |
| Leg Width (in) | 5.3125 |
| Minimum Width Between Legs (in) | 21.625 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5.9 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 2.9 |
| Front Wheel Material | Poly on Steel |
| Overall Height (in) | 77.75 |
| Overall Width (in) | 27.375 |
| Overall Depth (in) | 61.8125 |
| Weight (lbs) | 434 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
