Description
Description

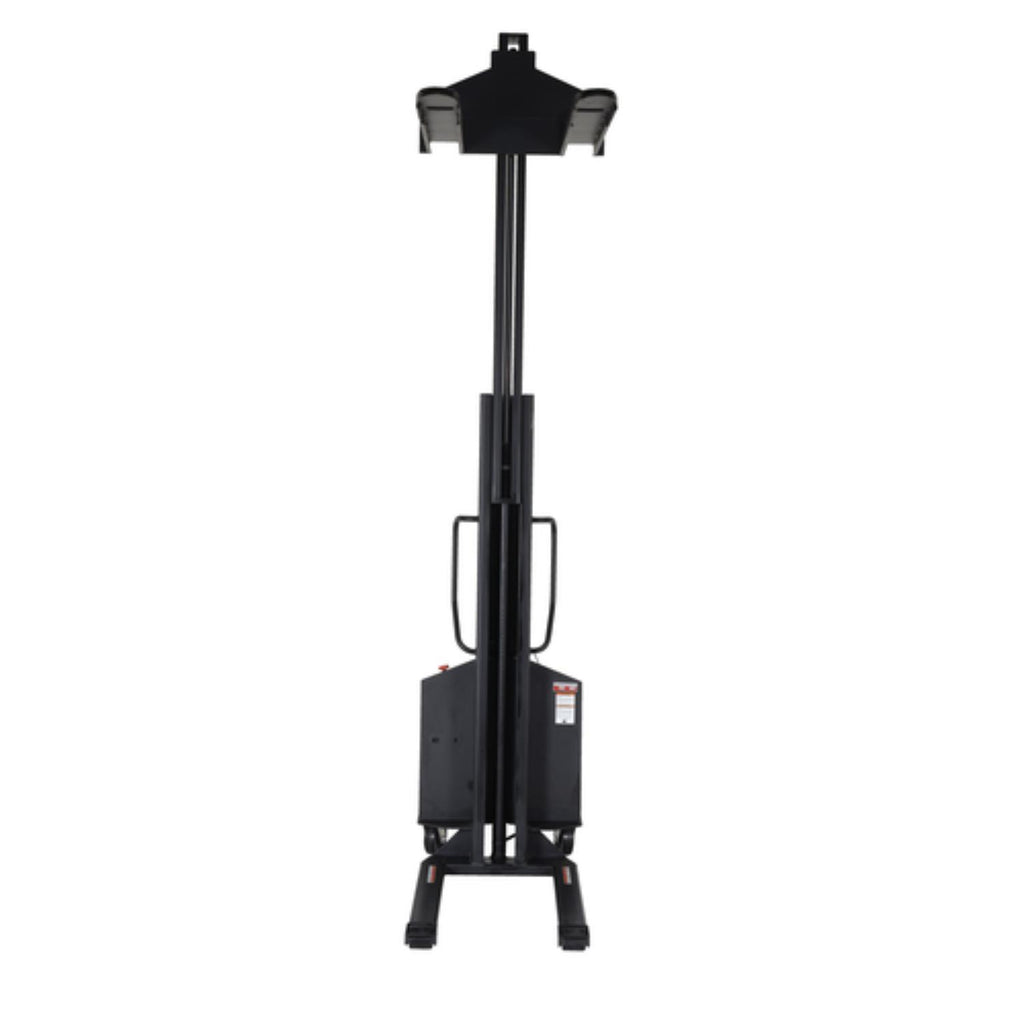

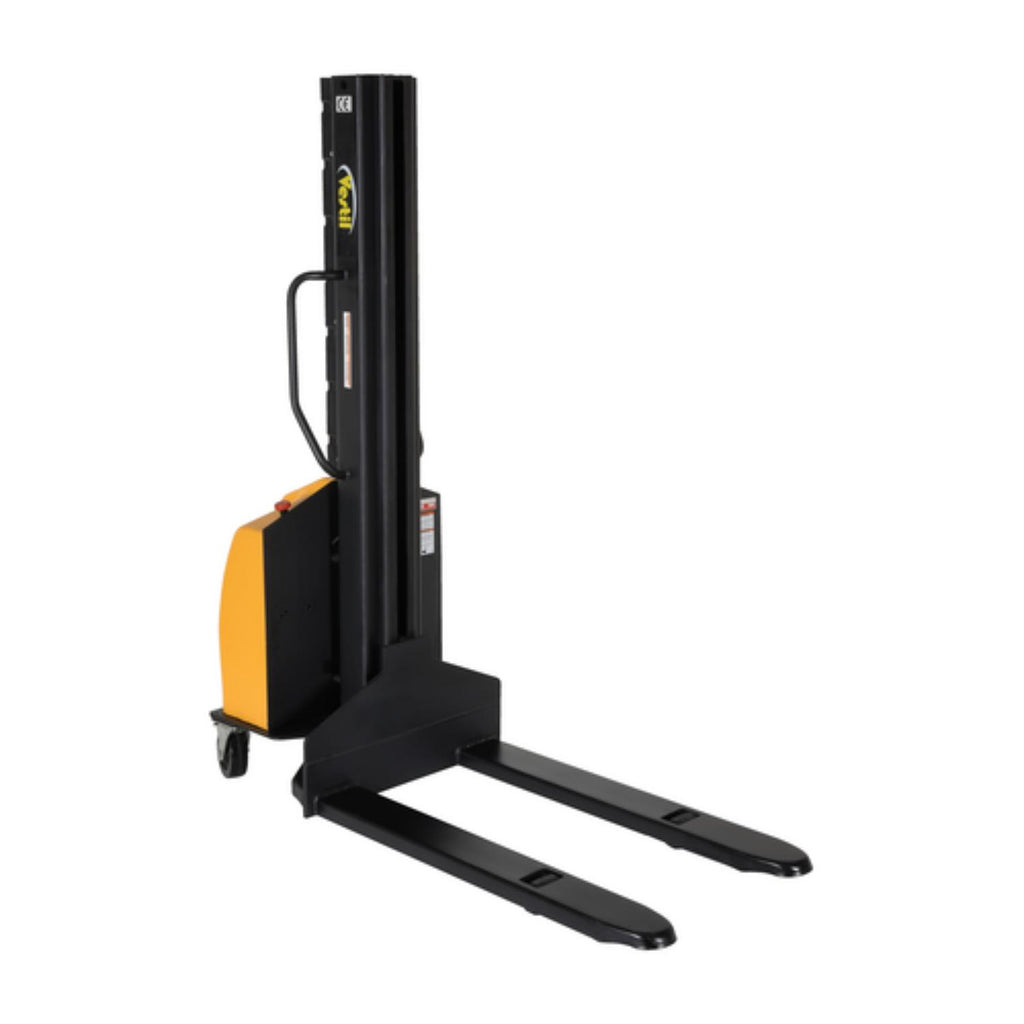

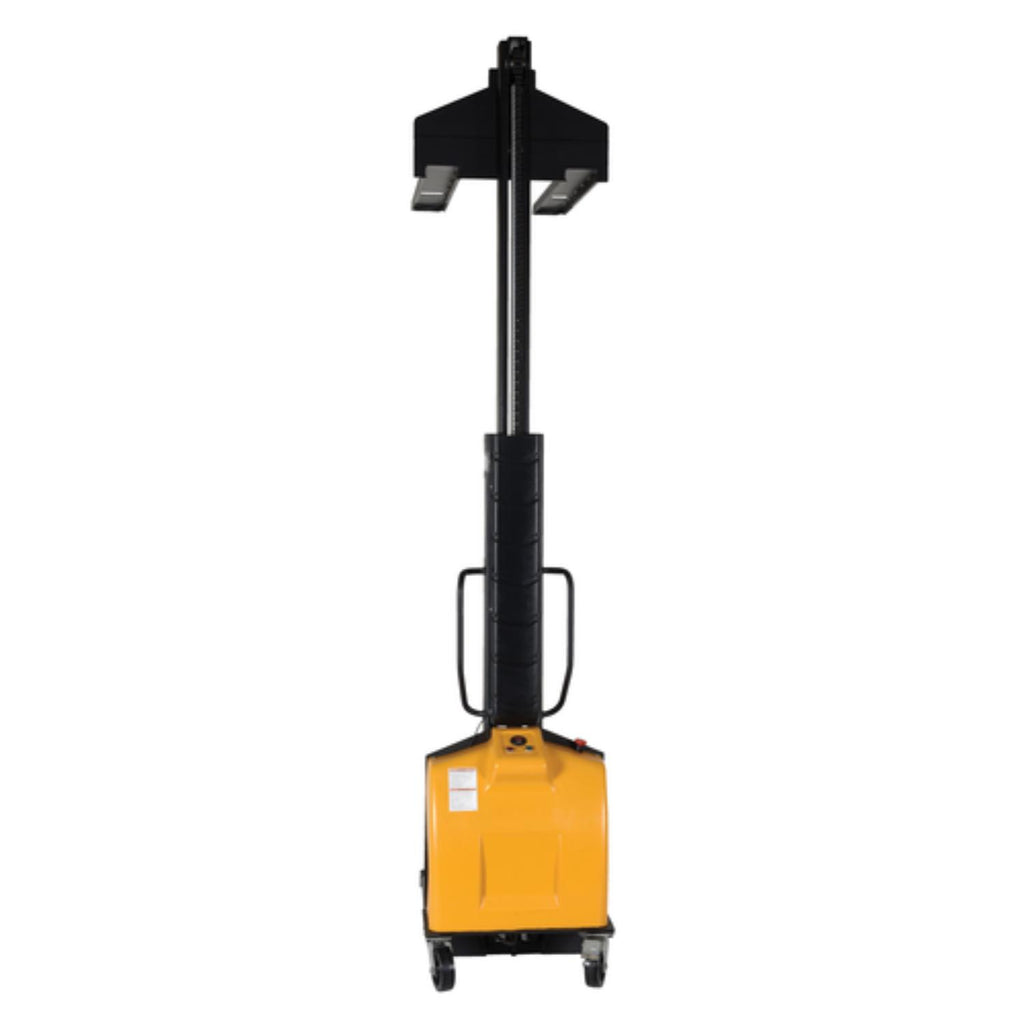

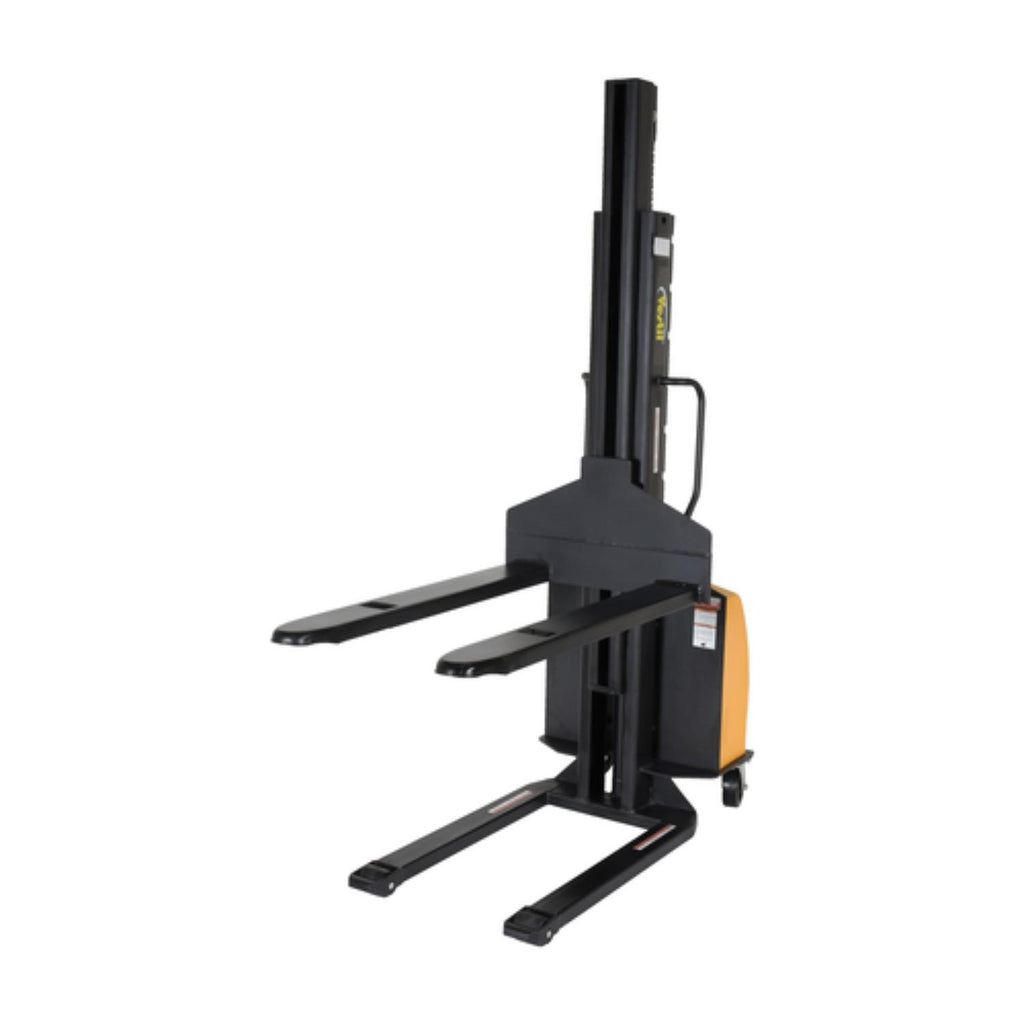

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The unit features a simple push button design for lifting control, nylon steering and load wheels for excellent maneuverability, and a battery charger and gauge. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.
Features
- Narrow mast stacker is ideal for shipping and manufacturing facilities
- Stacker is an efficient solution to loading and unloading in closely confined areas
- Push-button design lifts and controls speed adjustments for ideal operation and optimal results
- Includes nylon wheels for excellent maneuverability and fixed forks for maximum efficiency
Specifications
| Specification | Detail |
|---|---|
| Power Source | Electric - Cordless |
| Maximum Lift Height (in) | 63 |
| Minimum Lift Height (in) | 3.25 |
| Maximum Travel Distance (in) | 59.75 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Yellow |
| Frame Material | Steel |
| Fork Length (in) | 45 |
| Fork Width (in) | 5.9 |
| Adjustable Forks | No |
| Minimum Width Between Forks (in) | 26.75 |
| Adjustable Legs | No |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 26.75 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 0.5 |
| Maximum Amperage (A) | 6 |
| Phase | Single Phase |
| Voltage (V) | 12 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 2.95 |
| Front Wheel Material | Polyurethane |
| Weight (lbs) | 568 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
