Description
Description

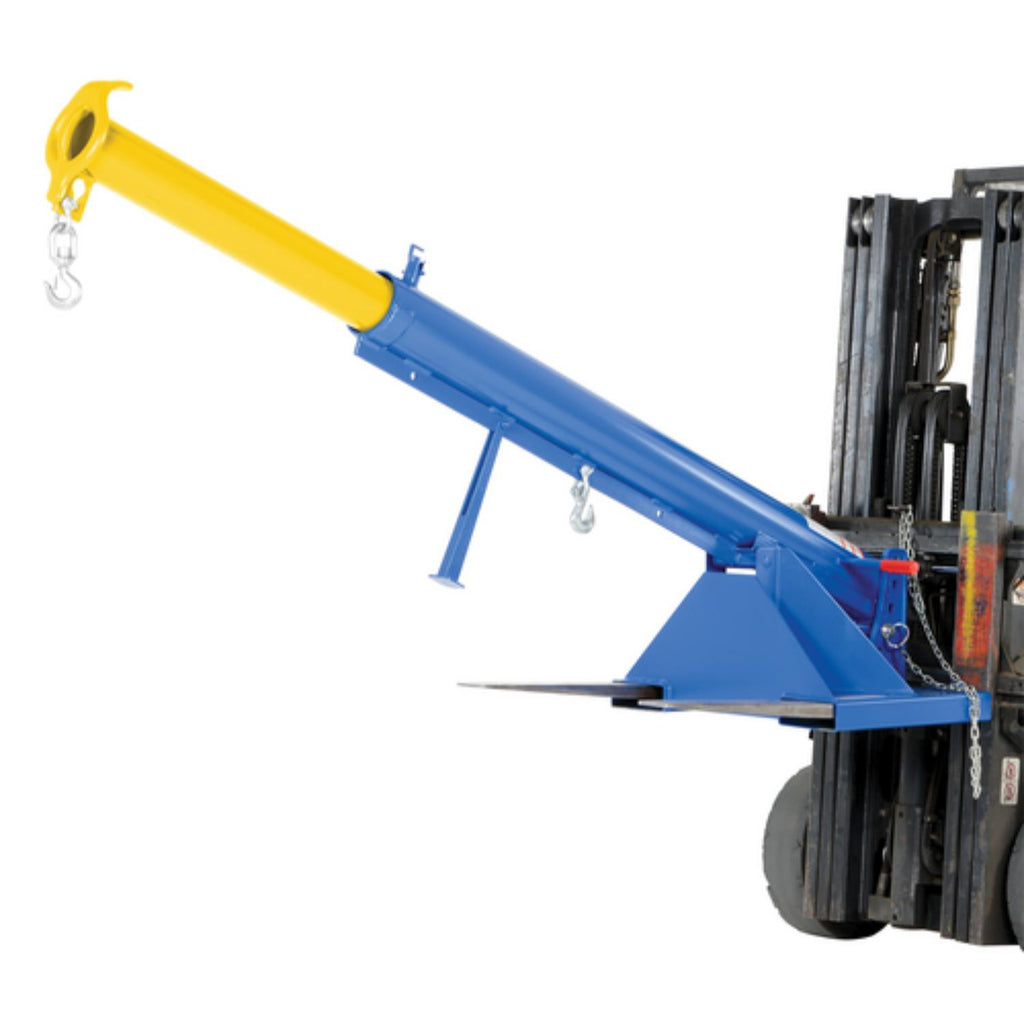

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.
Features
- Unique design converts fork trucks into overhead lifting cranes
- Fork pockets with safety strap attach & secure boom to fork truck
- Robotically welded construction provides precision and durability
- Operations & capacity sticker provide user instructions and safety
Specifications
| Specification | Value |
|---|---|
| Color / Finish | Blue (Base Frame)/Yellow (Extension) |
| Capacity (lbs) | 4000 |
| Housing Material | Steel |
| Overall Width (in) | 32 |
| Overall Height (in) | 27.6875 |
| Minimum Length (in) | 86.625 |
| Maximum Length (in) | 146.625 |
| Telescoping Boom | Yes |
| Hook Quantity | 2 |
| Minimum Hook Point (in) | 36 |
| Maximum Hook Point (in) | 144 |
| Number of Vertical Adjustment Positions | 4 |
| Compatible Fork Thickness (in) | 2.5 |
| Compatible Fork Width (in) | 7.5 |
| Fork Pocket - Center to Center (in) | 24 |
| Safety Chains | Yes |
| Chain Length (in) | 36 |
| Weight (lbs) | 436 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
