Description
Description

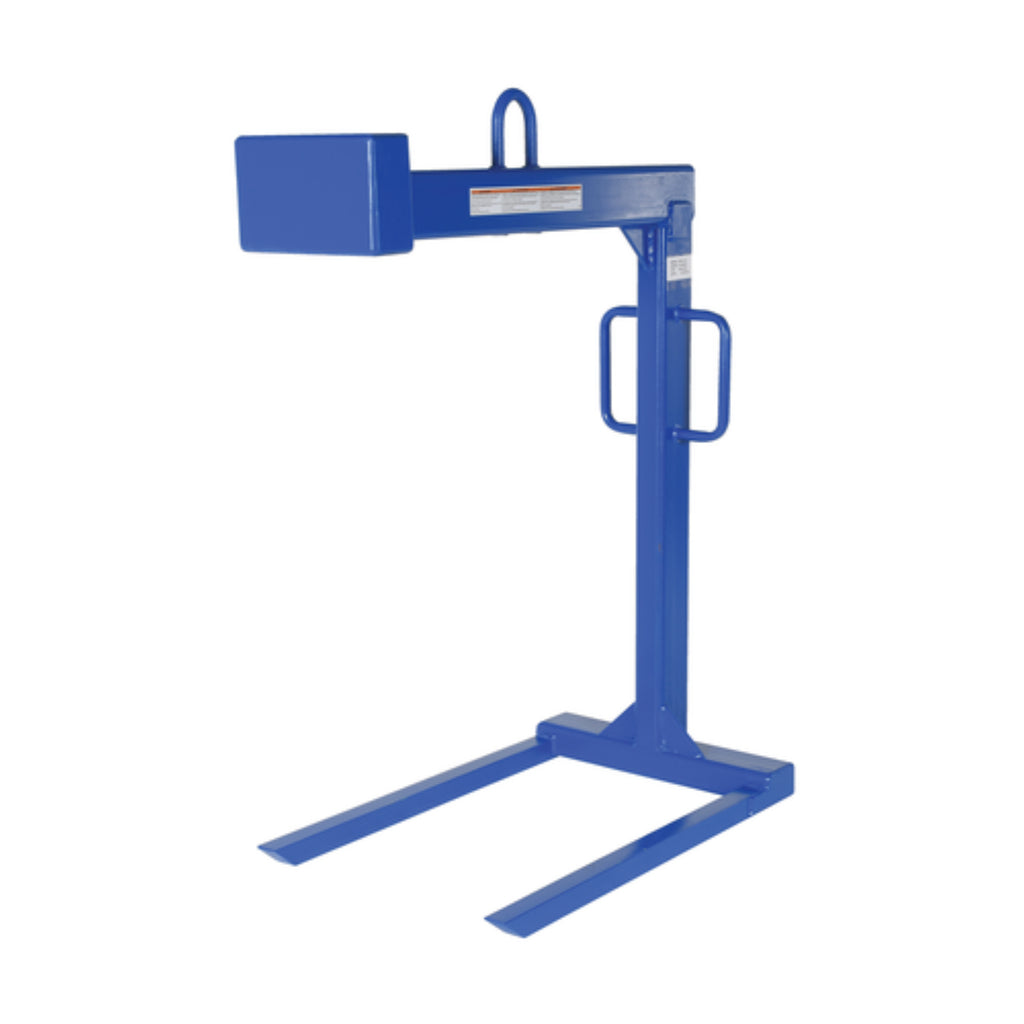

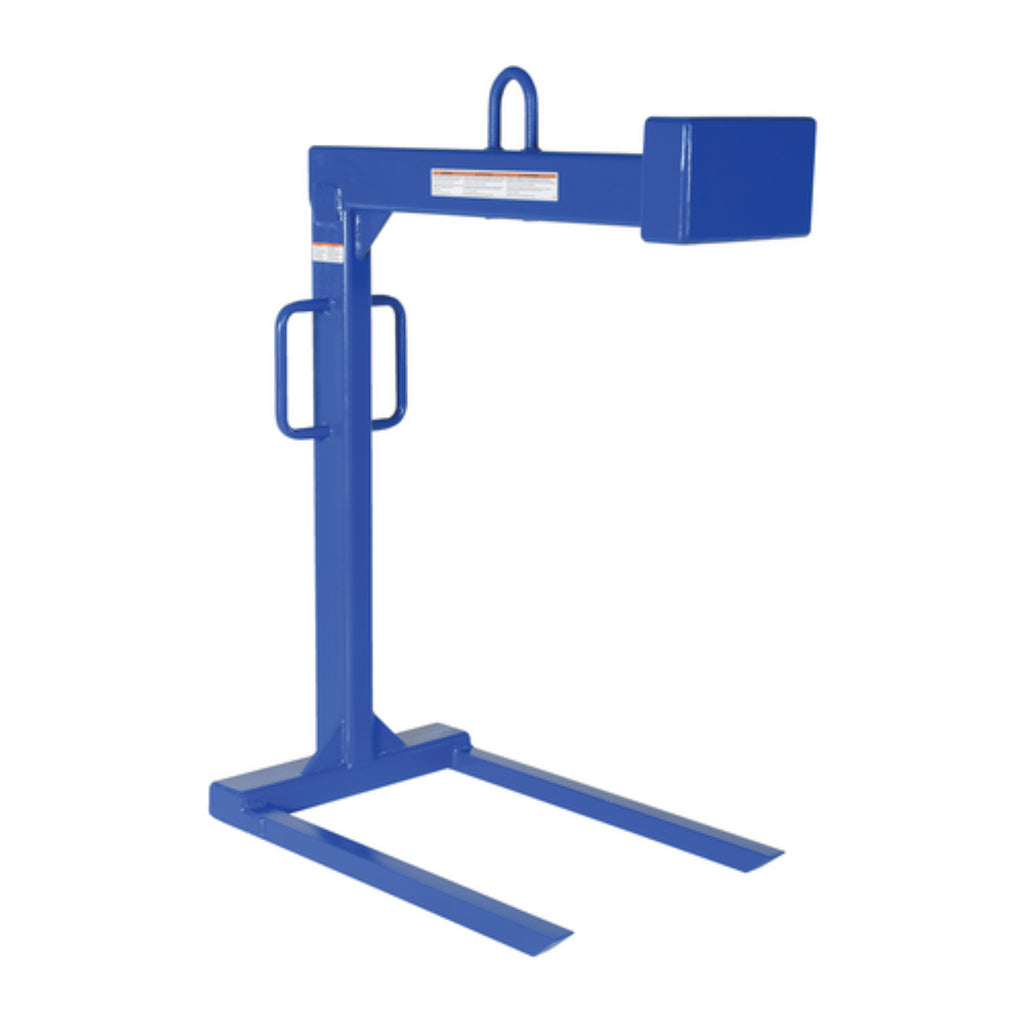

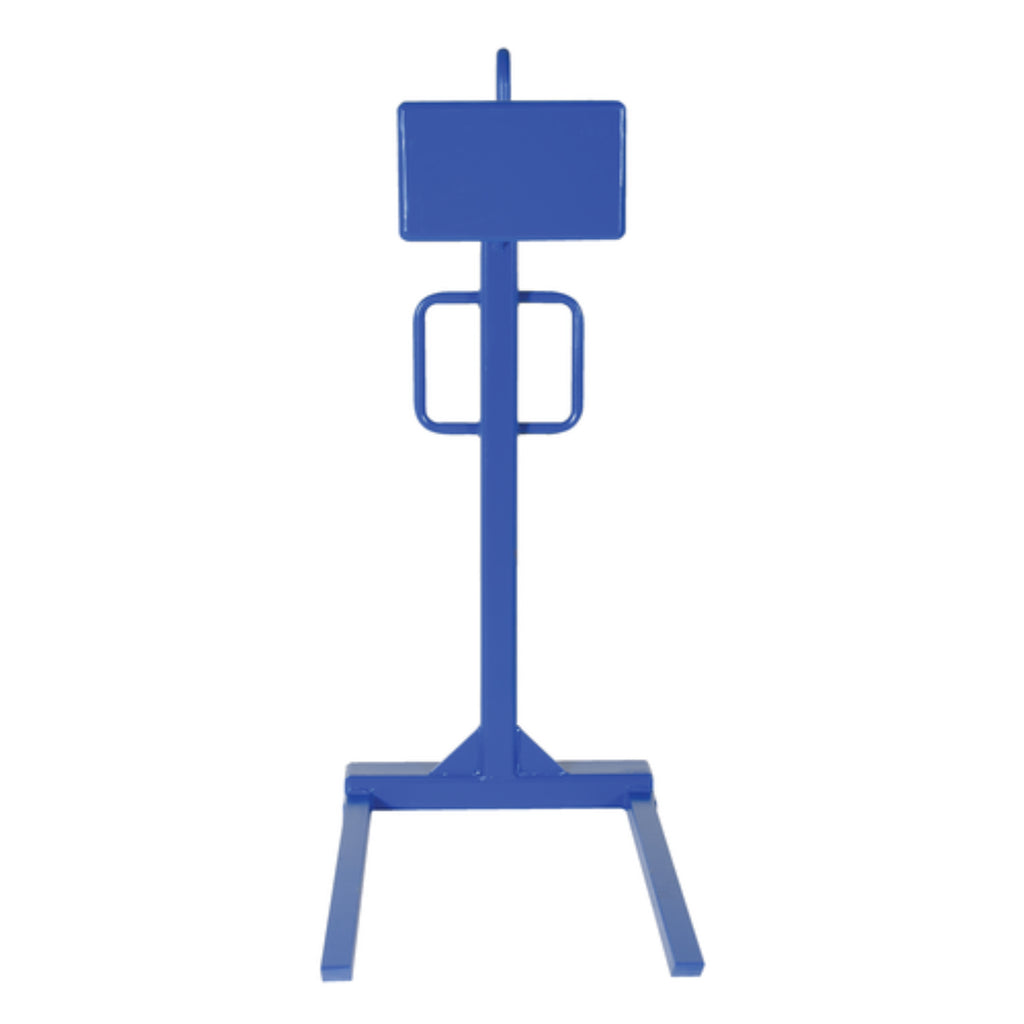

This solid steel pallet lifter contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to position the unit. Large square head serves as a counterweight to keep the unit level without a load.
Features
- Tapered forks allow easy access under pallets
- Main support contains handles to allow positioning
- Large square head serves as a counterweight to keep level without a load
- Unit meets ASME B30.20 standard 1993
Specifications
| Specification | Value |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 31.625 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 48 |
| Weight Capacity (lbs) | 2000 |
| Application | Pallet Lifting |
| Depth (in) | 46.25 |
| Height (in) | 61.25 |
| Width (in) | 25.5 |
| Fork Width (in) | 2 |
| Fork Length (in) | 36 |
| Fork Thickness (in) | 2 |
| Fork Saddle Width (in) | 21 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
