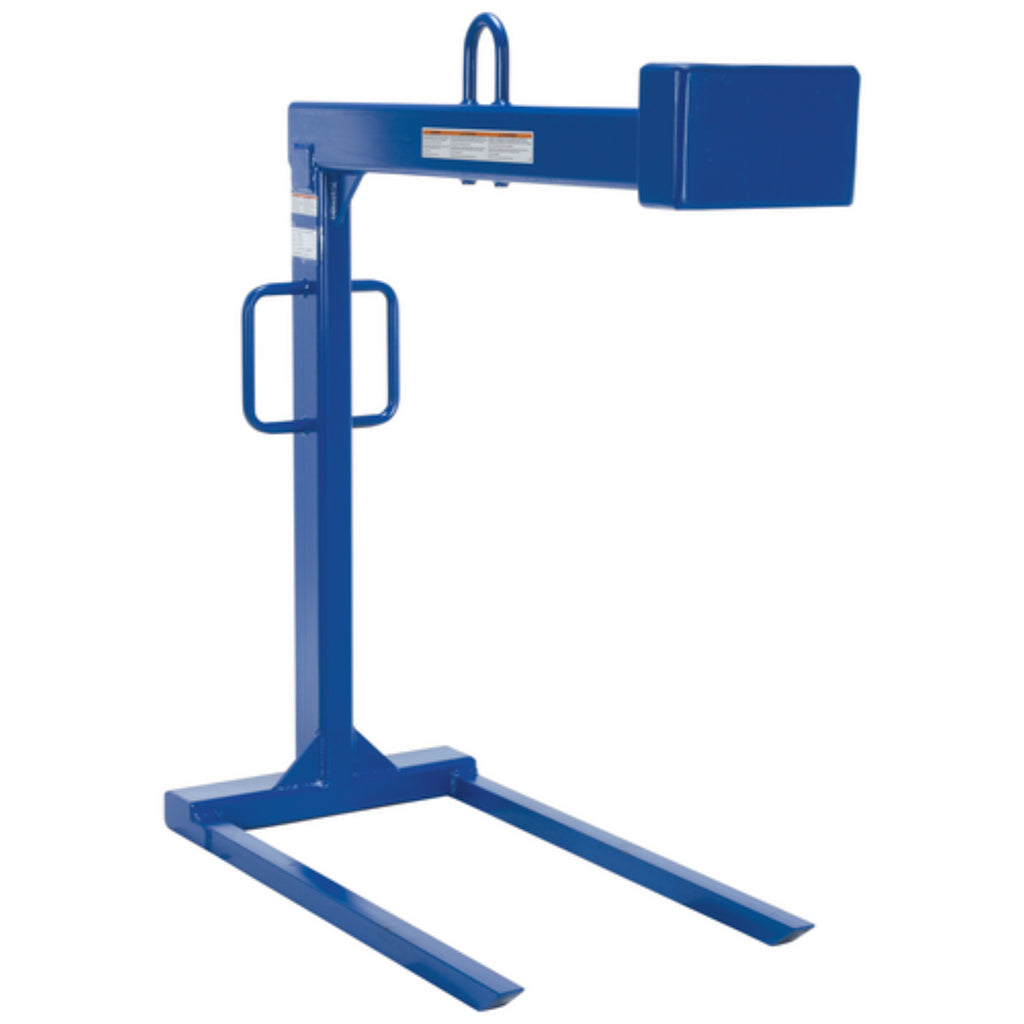

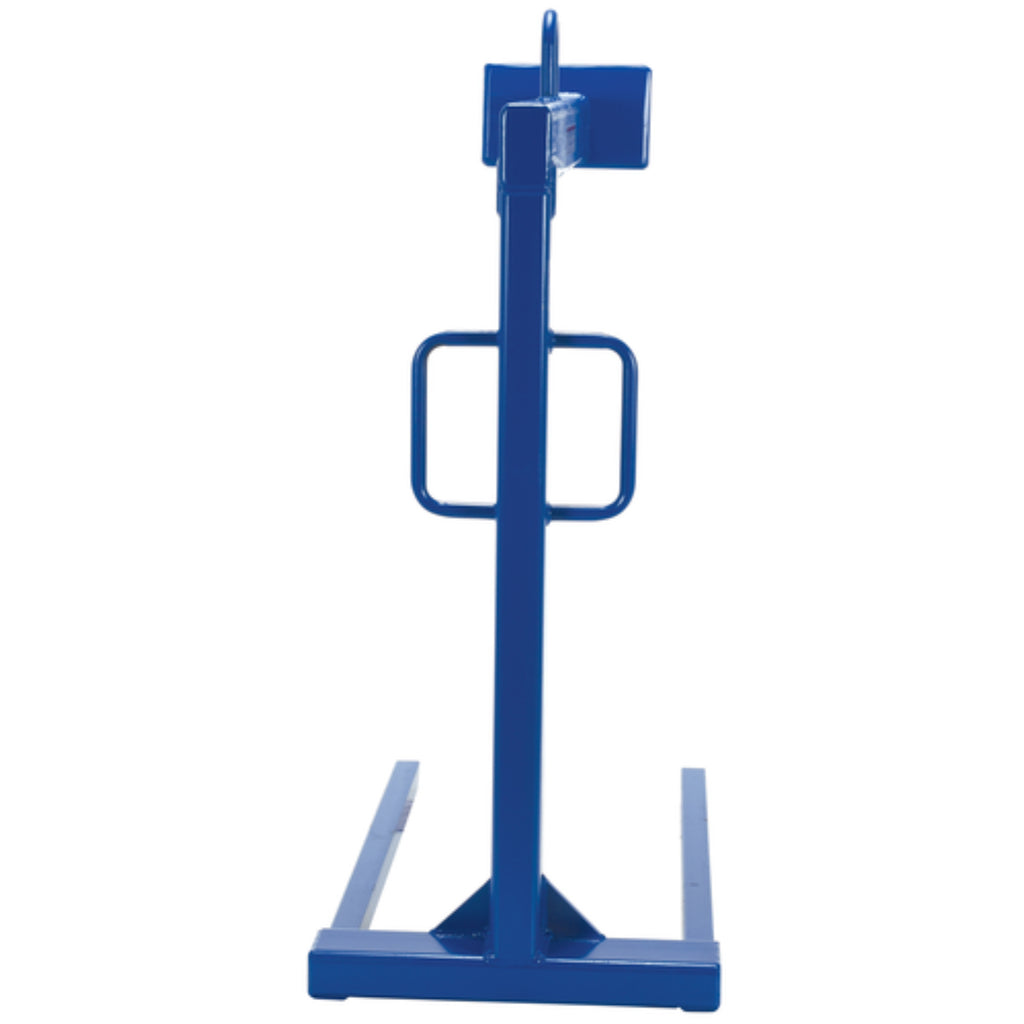

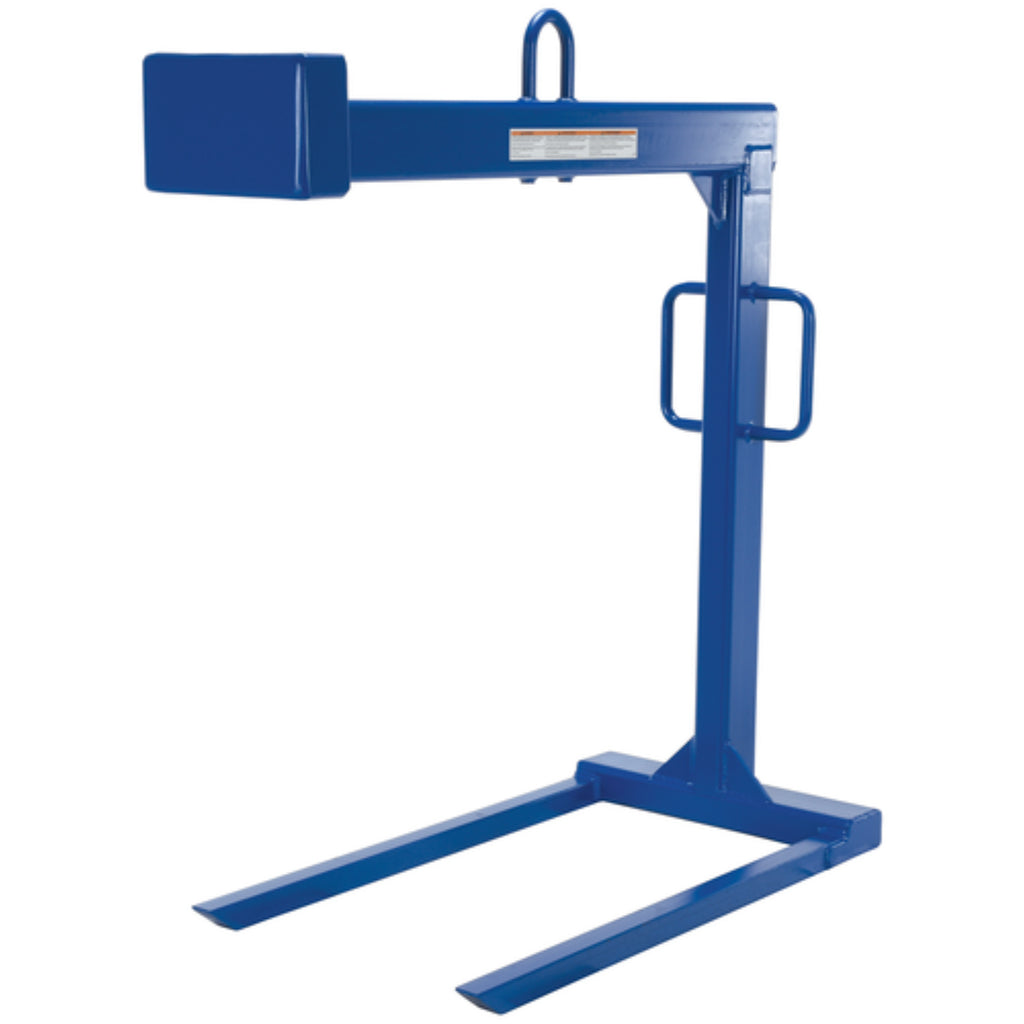

This solid steel pallet lifter contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to position the unit. Large square head serves as a counterweight to keep the unit level without a load.
Features
- Tapered forks allow easy access under pallets
- Main support contains handles to allow positioning
- Large square head serves as a counterweight to keep level without a load
- Unit meets ASME B30.20 standard 1993
Specifications
| Specification | Value |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 31.625 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 48 |
| Weight Capacity (lbs) | 2000 |
| Application | Pallet Lifting |
| Depth (in) | 59.25 |
| Height (in) | 61.25 |
| Width (in) | 25.5 |
| Fork Width (in) | 2 |
| Fork Length (in) | 48 |
| Fork Thickness (in) | 2 |
| Fork Saddle Width (in) | 21 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
