Description
Description

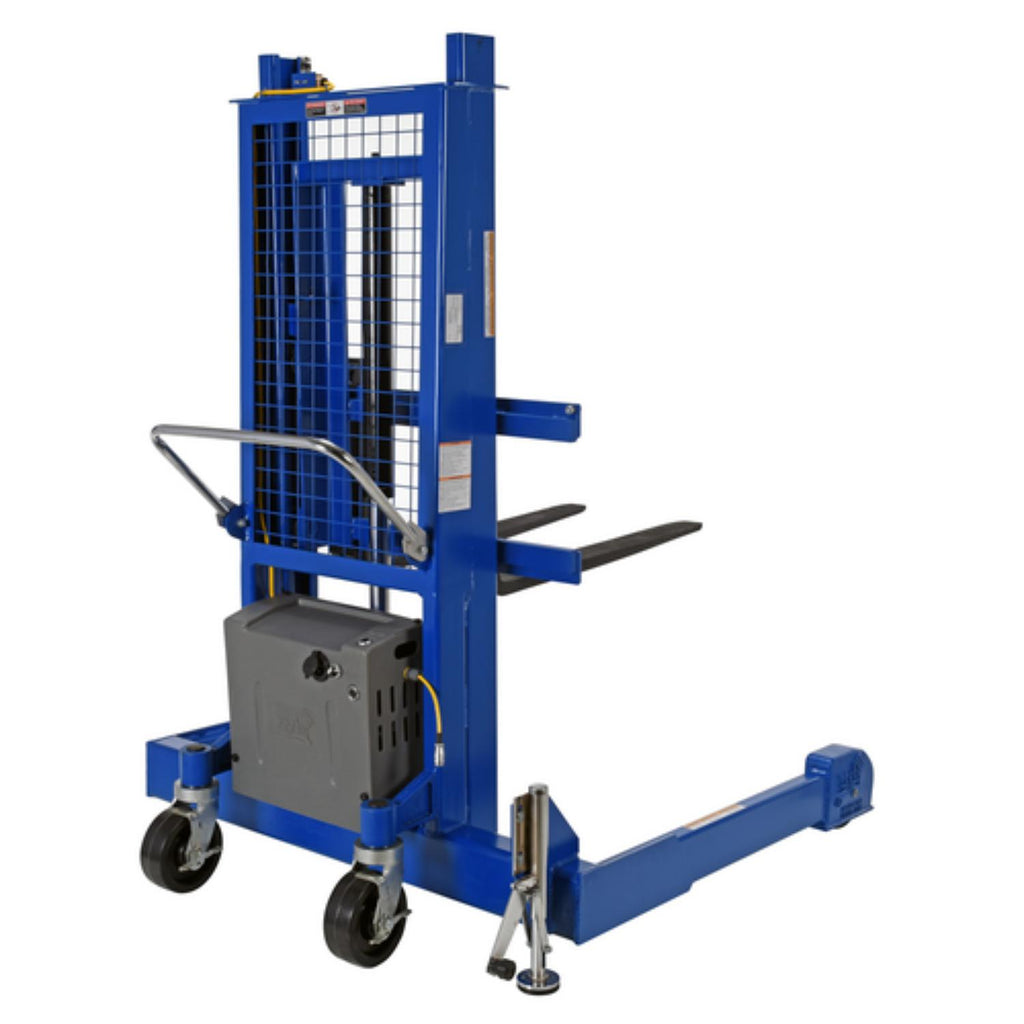

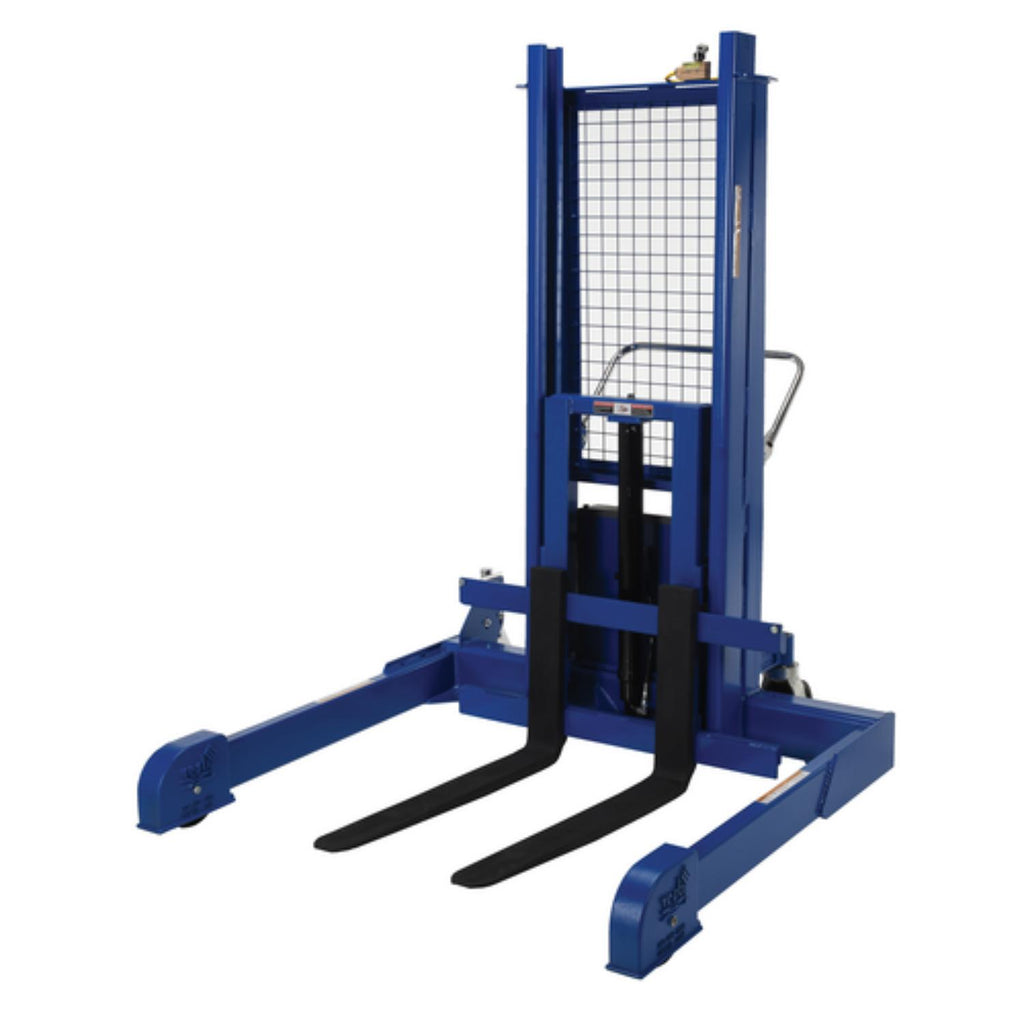

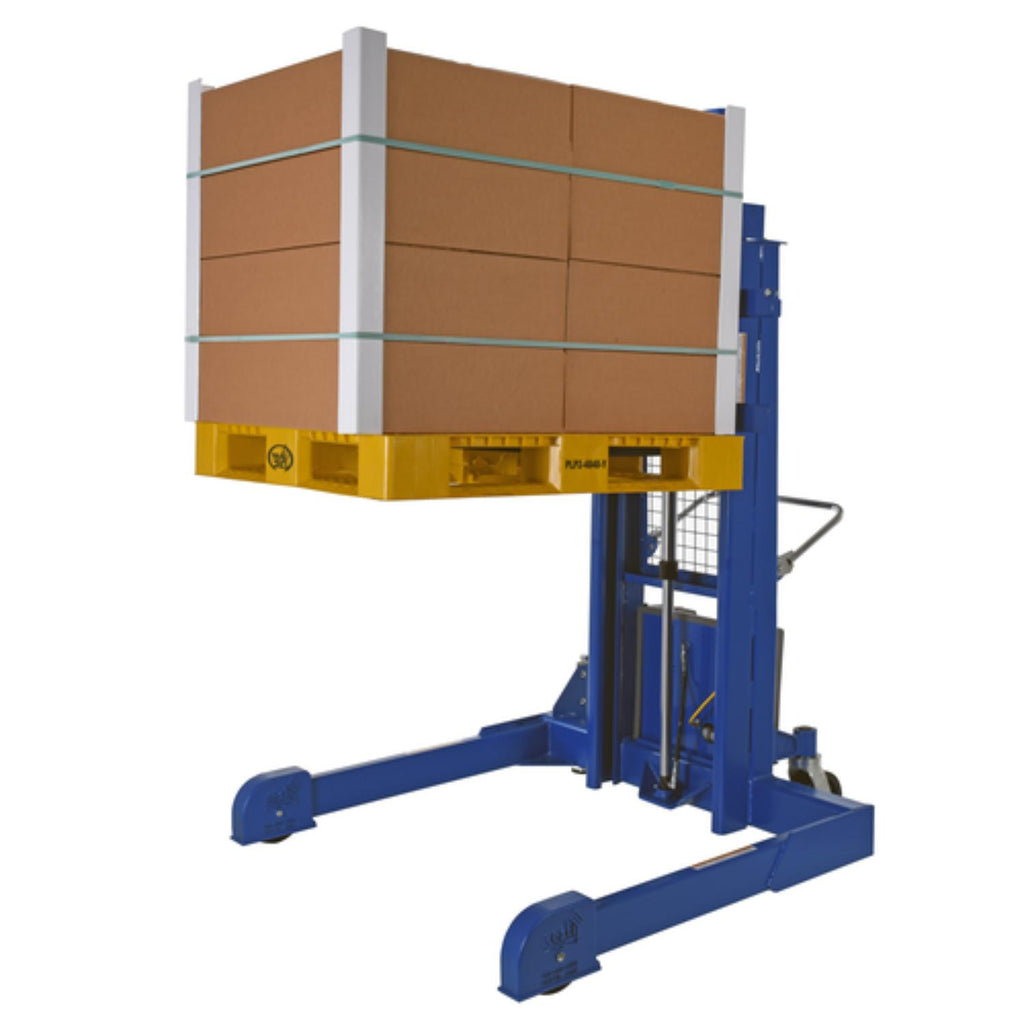

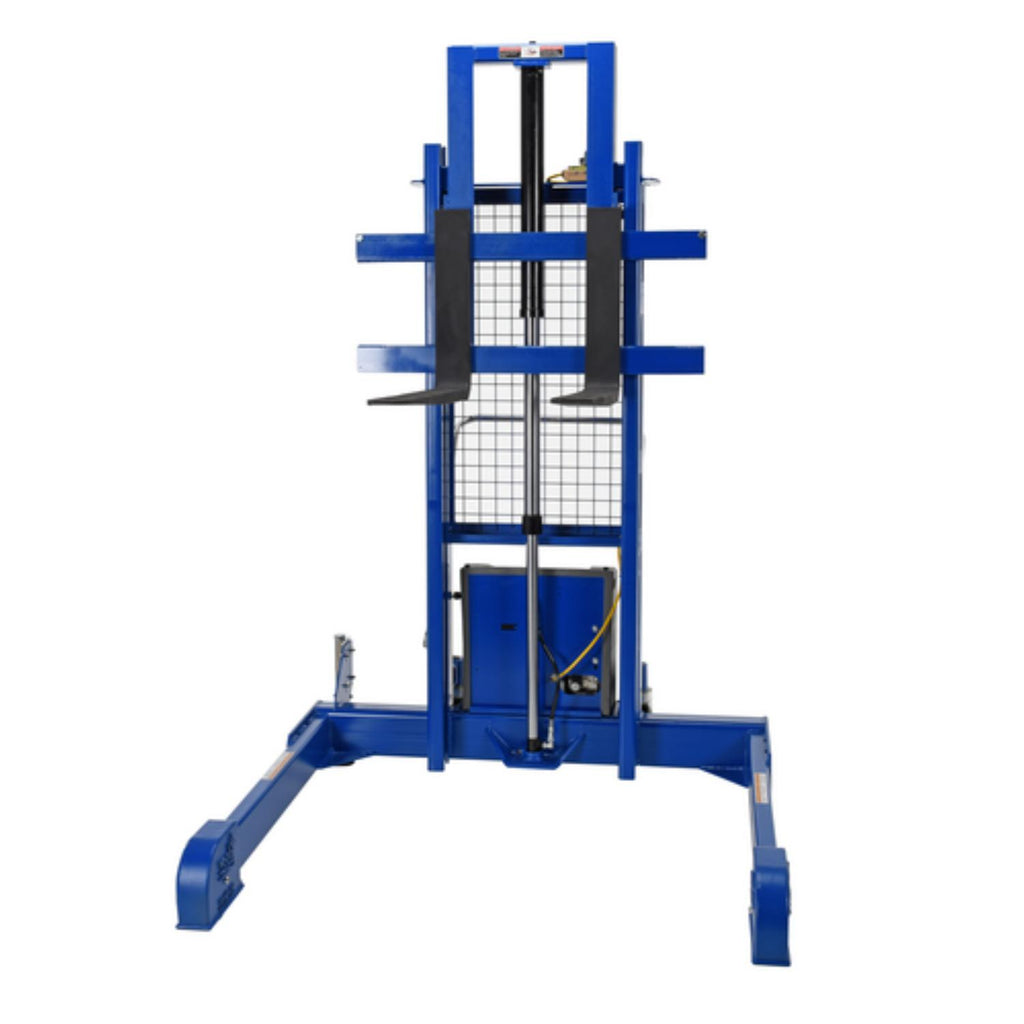

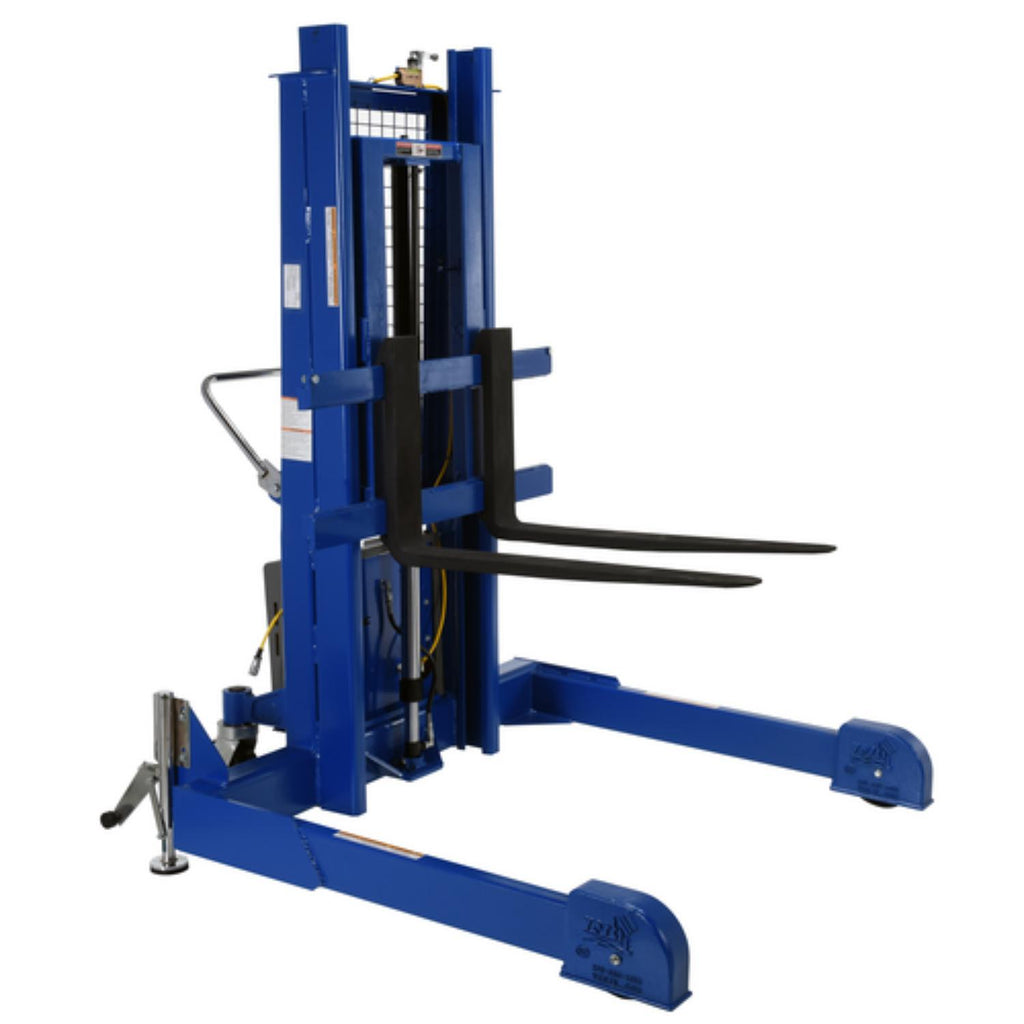

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Hand pendant control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.
Features
- Easily move fully loaded pallets enabled by one person
- Straddle design works pallets and skids with or without an understructure
- Ideal for loading and unloading semi-trailers without strenuous work
- Hand pendant control on an eight (8) foot coil cord standard
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 36 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum | 50 inches |
| Maximum Travel Distance (in) | 47 inches |
| Power Source | Electric |
| Voltage (V) | 12 |
| Weight Capacity (lbs) | 4000 |
| Maximum Fork Height (in) | 50 inches |
| Depth (in) | 66 |
| Height (in) | 77 |
| Width (in) | 58 |
| Wheel Material | Phenolic/Glass Filled Nylon |
| Fork Lowered Height (in) | 3 |
| Fork Width (in) | 4 |
| Fork Length (in) | 36 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
