Description
Description

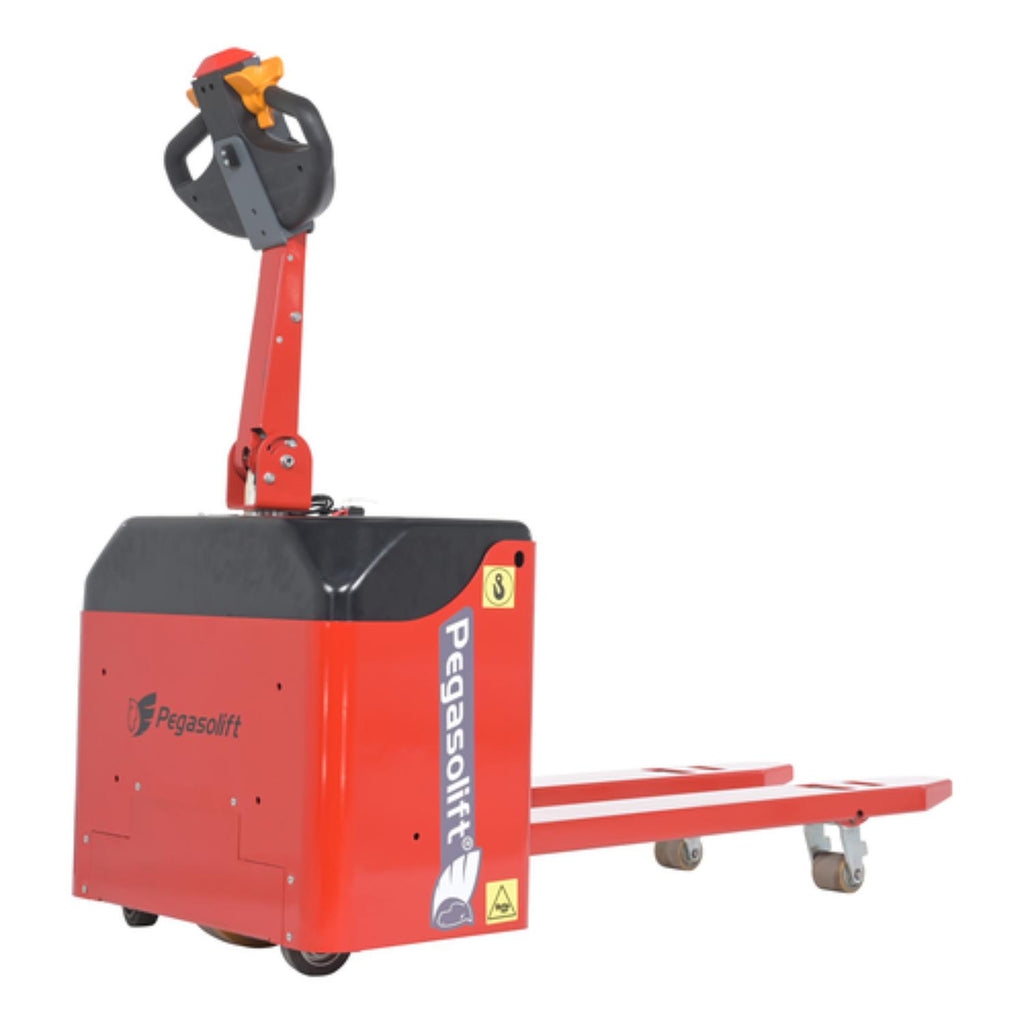

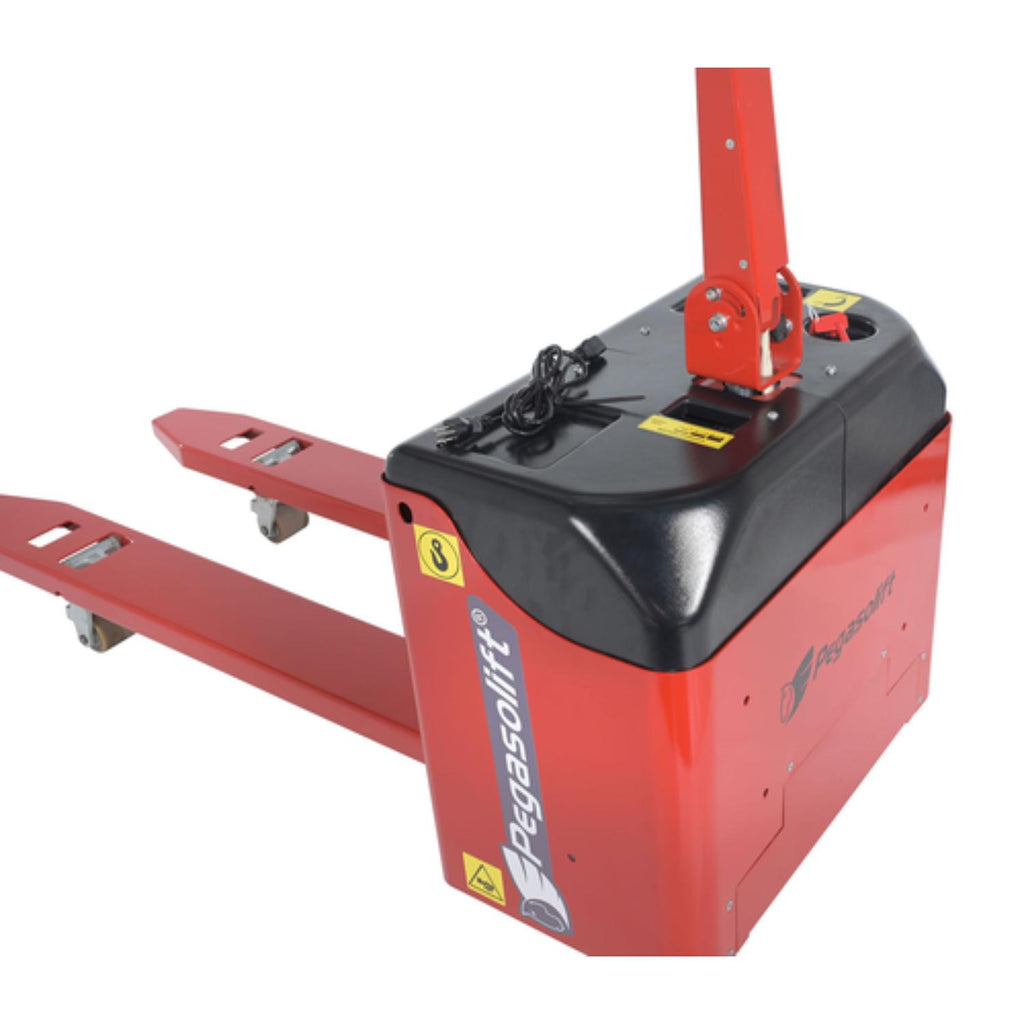

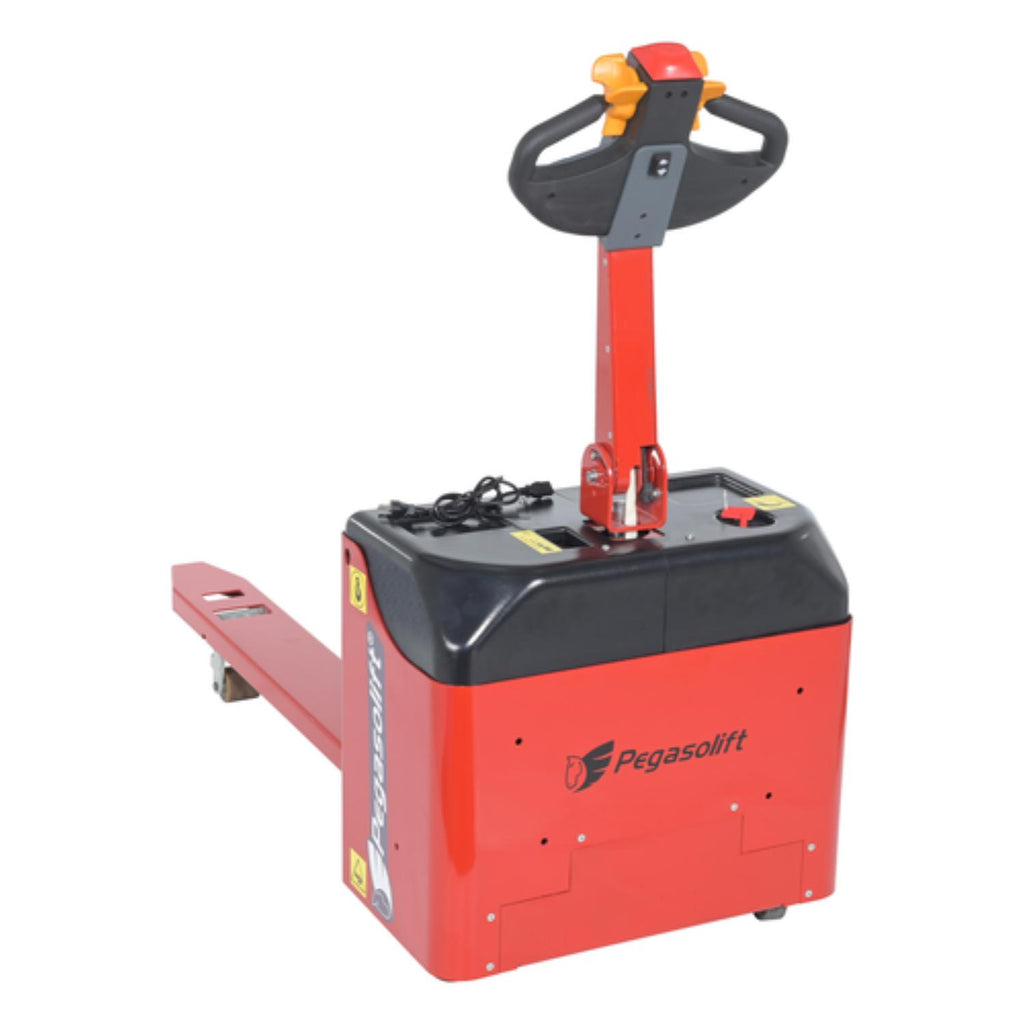

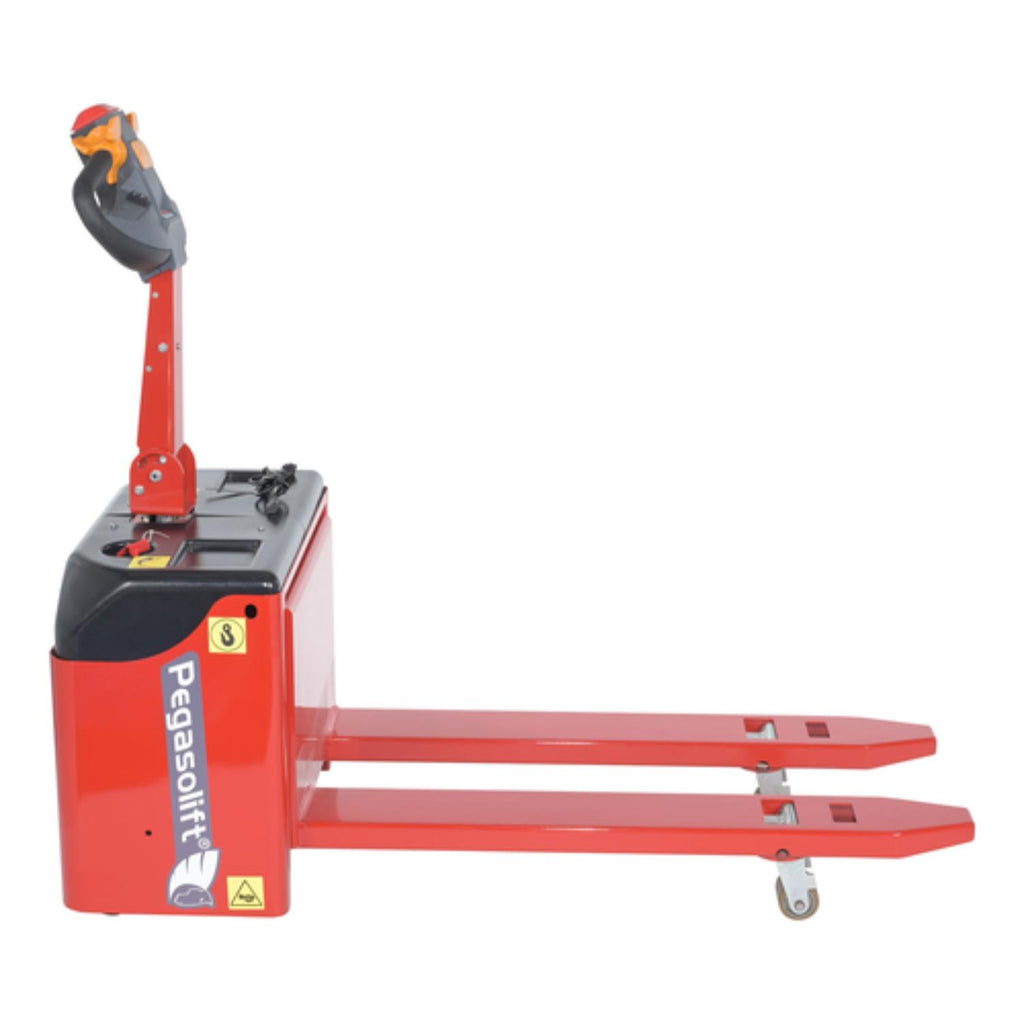

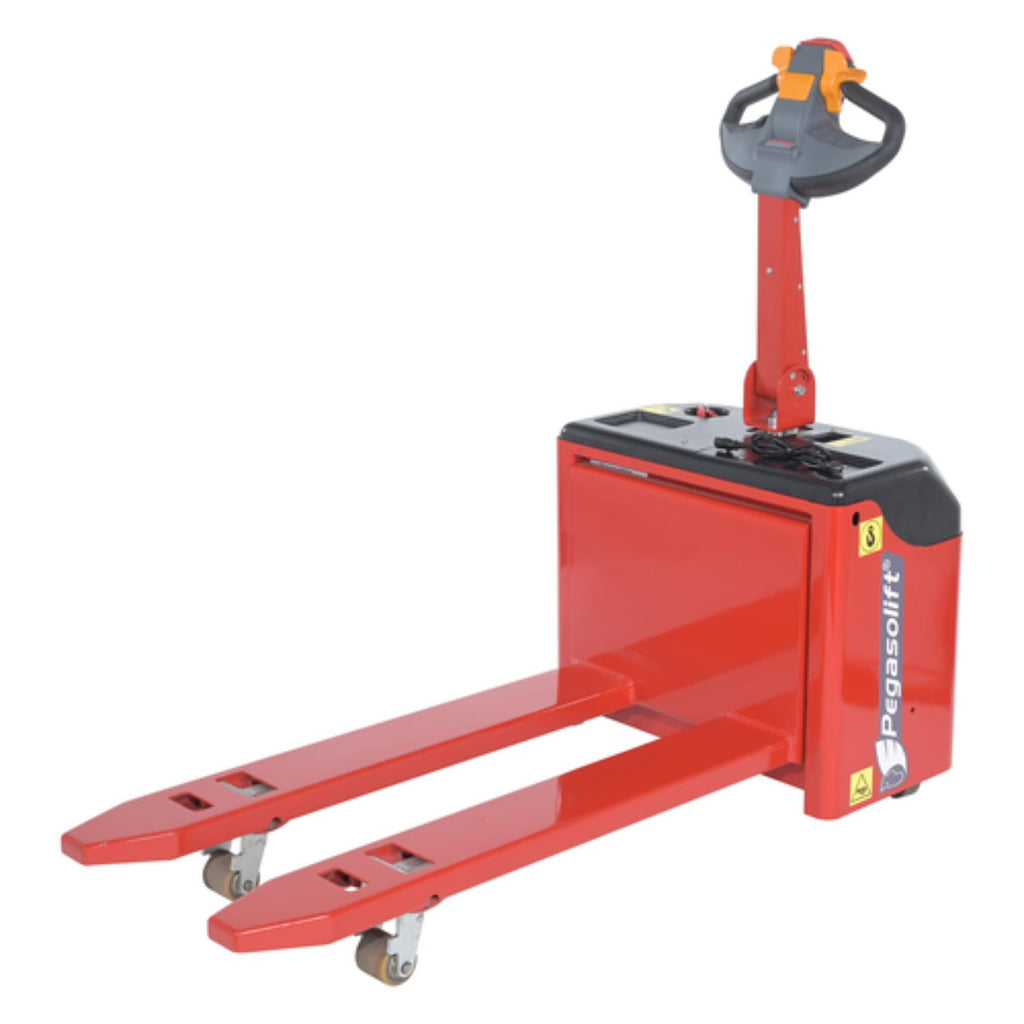

This electric pallet truck provides an always dependable performance in and around the workplace. With a maintenance friendly design, general upkeep is simple to perform. This style is excellent for confined spaces such as elevators, trailers, containers and narrow aisles. An LCD hour indicator is just one of the many features included in this design. Other features include an ergonomic control head with raise-lower buttons, horn, turtle speed button and forward-reverse butterfly knobs.peration and low turning radius. Ergonomic tiller with battery indicator and horn.
Features
- Emergency reverse button
- Permanent magnet drive motor
- Built in high frequency 24V/10A battery charger
- Operable with handle in up-right position
Specifications
Specification | Details |
---|---|
Assembly Required | Partial |
Color / Finish | Red |
Frame Material | Steel |
Fully Welded Frame | Yes |
Handle Length (in) | 53 |
Handle Material | Steel / Composite |
Material | Steel / Plastic |
Lift Height Maximum (in) | 7.625 |
Maximum Travel Distance (in) | 4.525 |
Power Source | Electric |
Voltage (V) | 24 |
Weight Capacity (lbs) | 3500 |
Application | AC |
Maximum Fork Height (in) | 7.625 |
Depth (in) | 45 |
Height (in) | 7 |
Width (in) | 20 |
Wheel Material | Poly on Steel |
Fork Width (in) | 7 |
Fork Length (in) | 45 |
Load Center (in) | 13 |
Maximum Adjustable Fork Width (in) | 20 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
