Description
Description

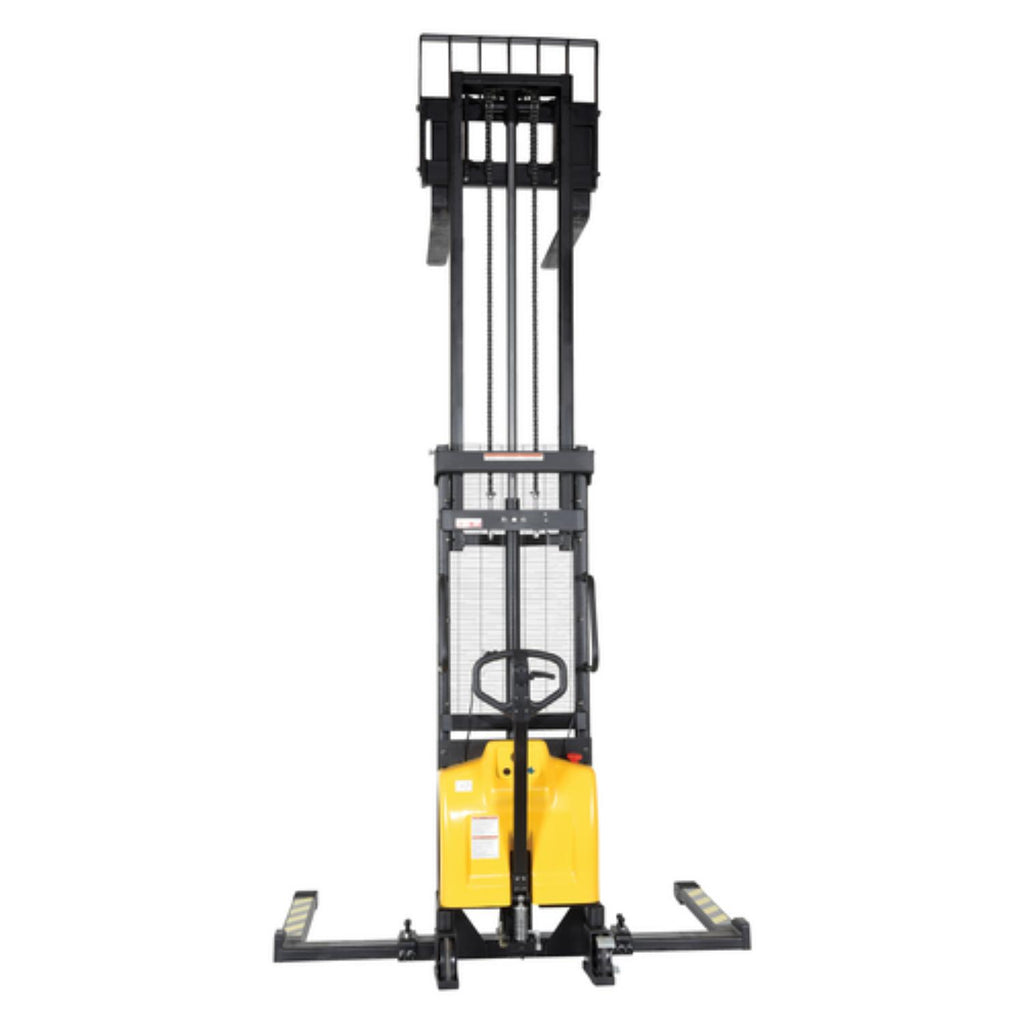

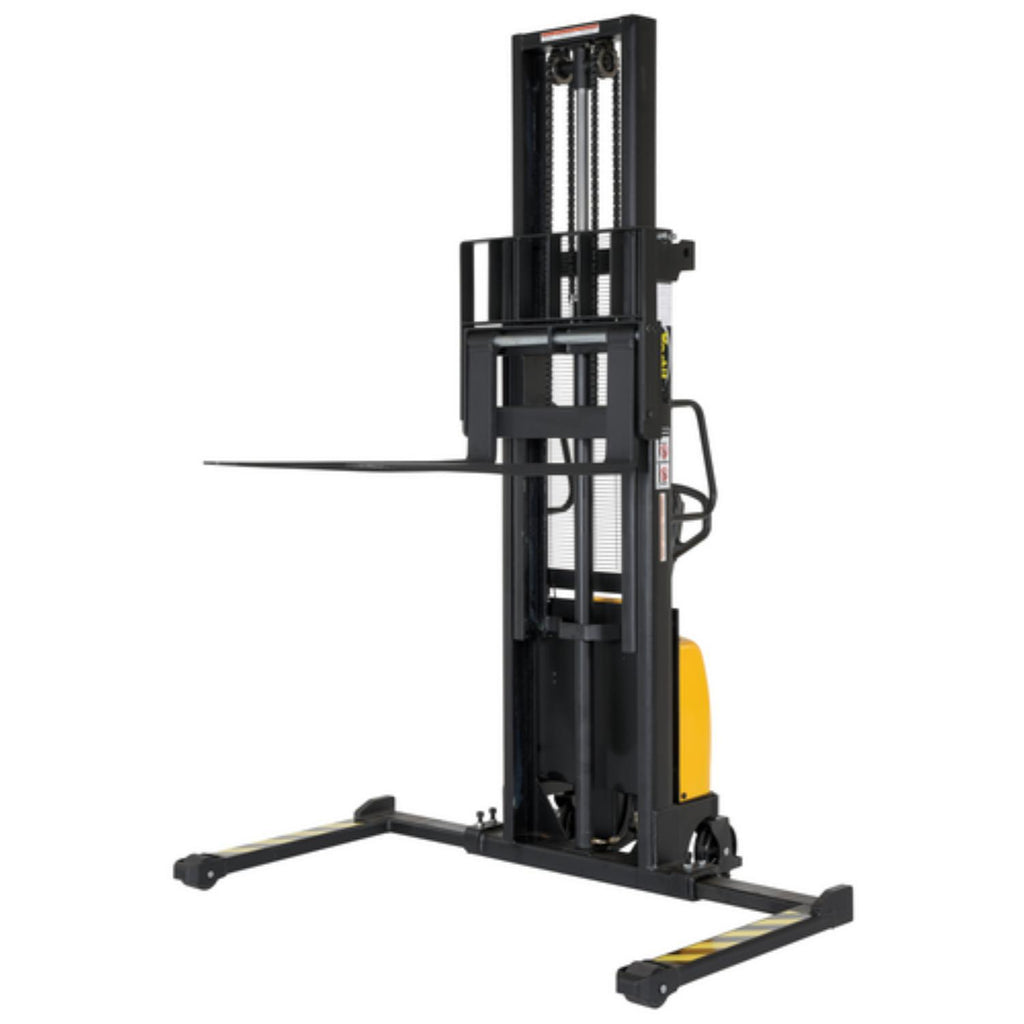

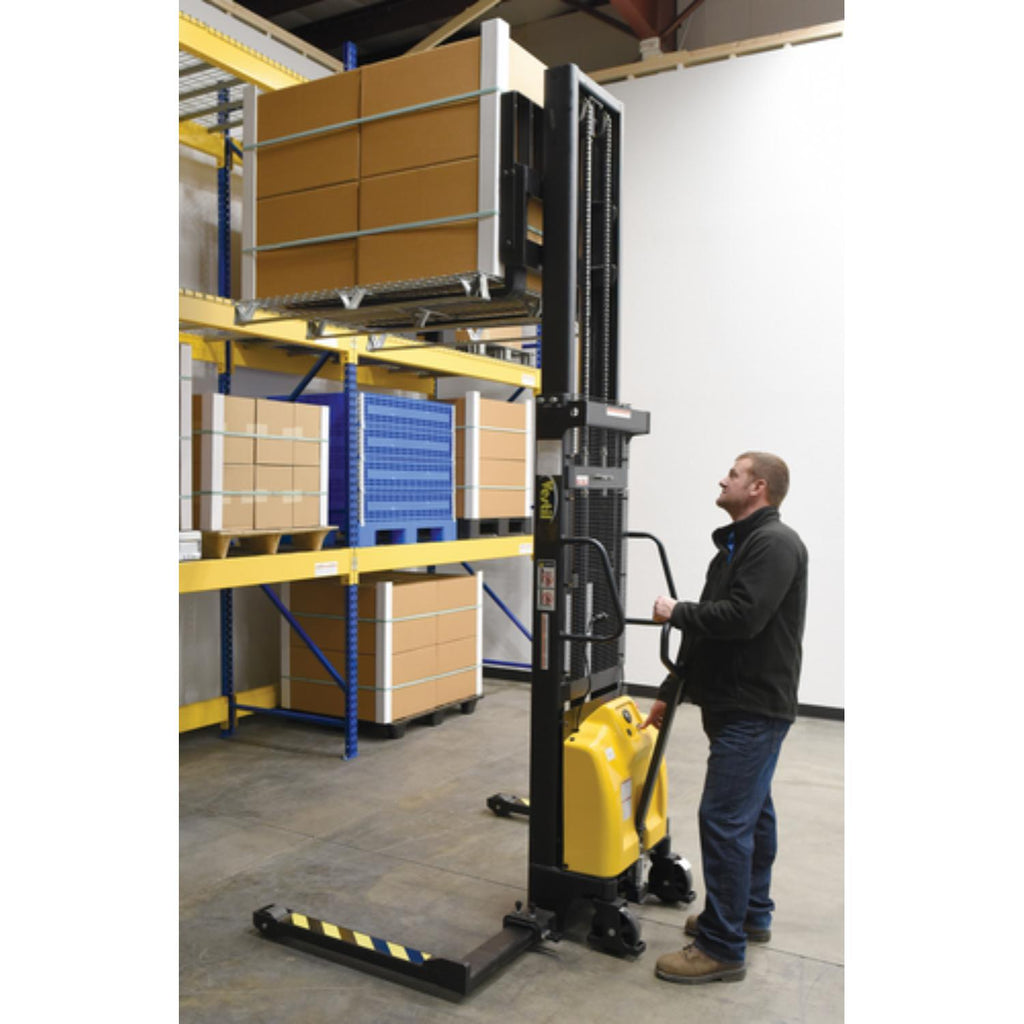

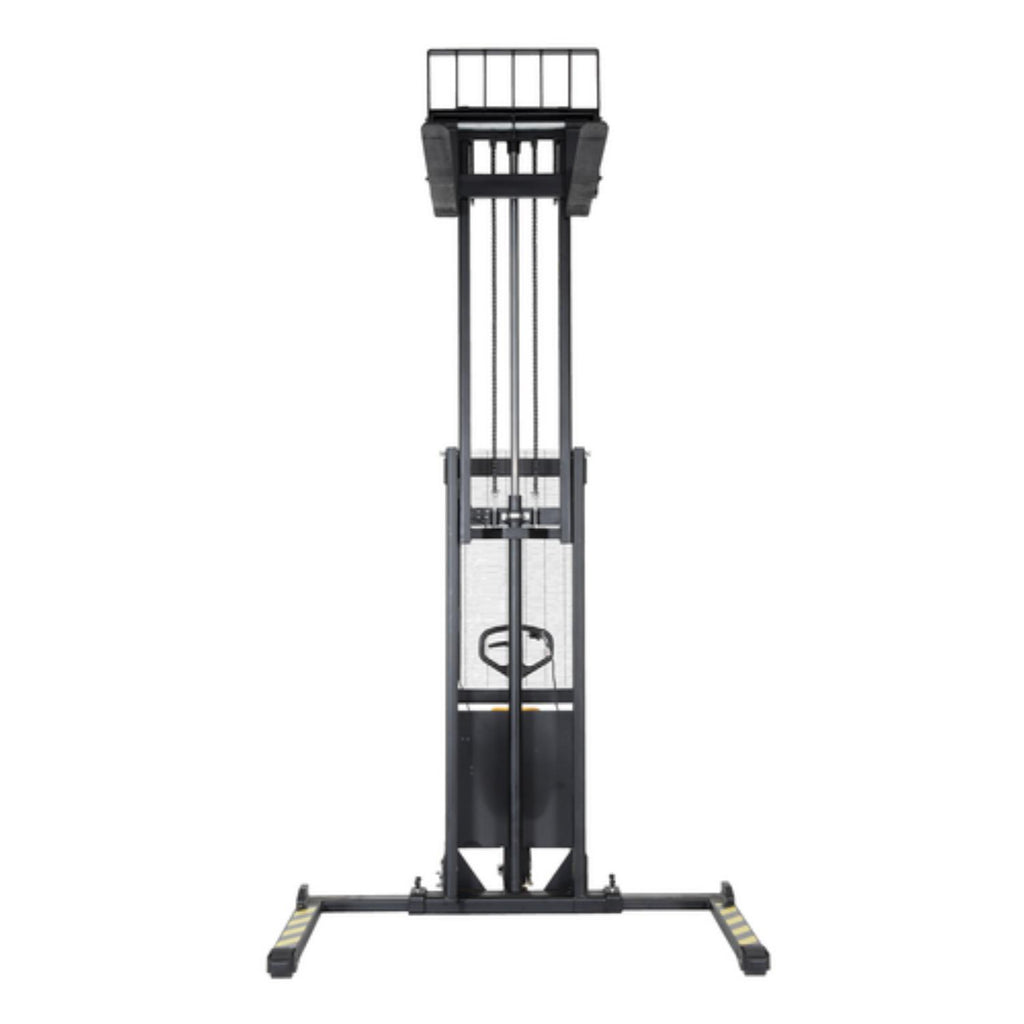

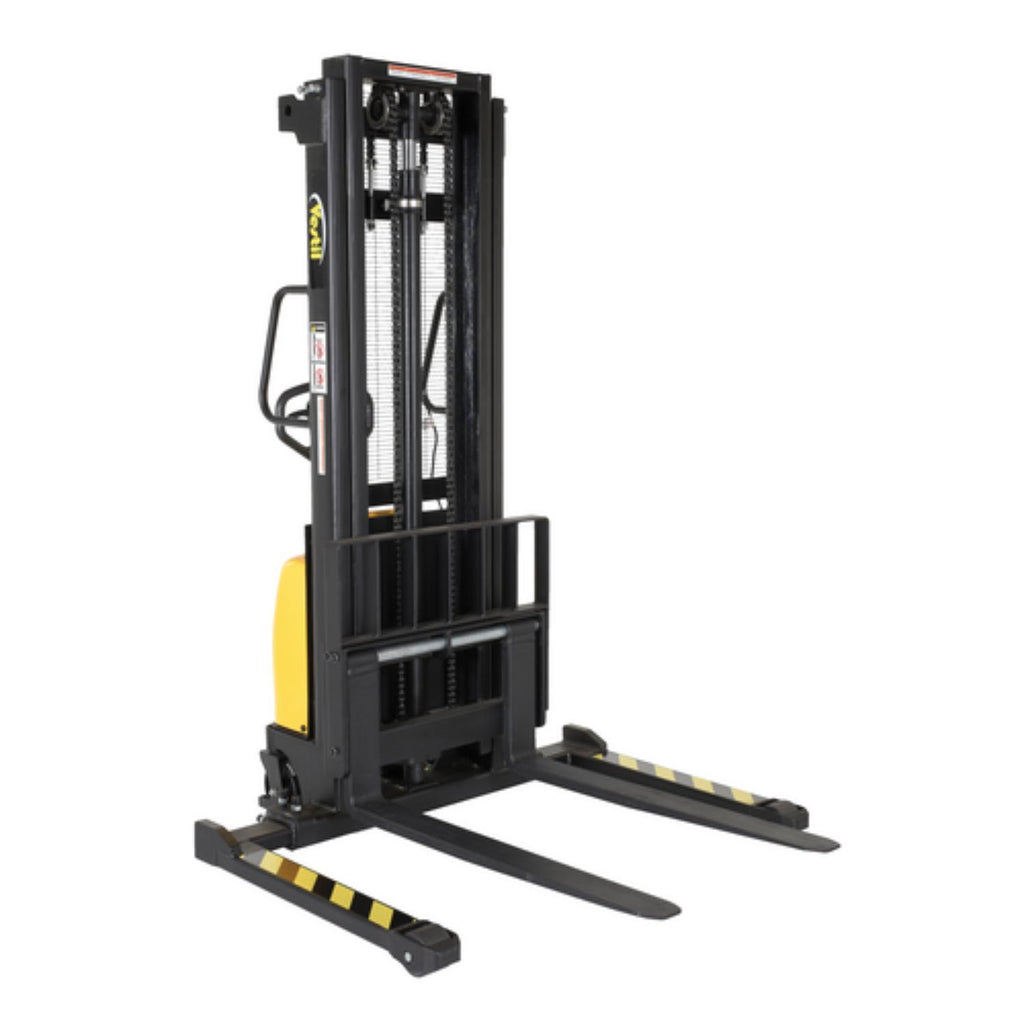

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V AGM batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Forks measures 26." wide by 42" long. Individual forks are 6" wide.
Features
- Adjustable forks to fit multiple sizes
- Works well with pallets and skids
- Handle design makes portability convenient
- Ability for powered or manual lifting
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Cordless |
| Maximum Lift Height (in) | 118 |
| Minimum Lift Height (in) | 2.125 |
| Maximum Travel Distance (in) | 115.875 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel/Plastic |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 17 |
| Adjustable Legs | No |
| Leg Width (in) | 24 |
| Minimum Width Between Legs (in) | 24 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Running Watts | 1500 |
| Maximum Amperage (A) | 120 |
| Phase | Single Phase |
| Voltage (V) | 24 |
| Hertz (Hz) | 60 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6.5 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Polyurethane |
| Weight (lbs) | 1095 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
