Description
Description

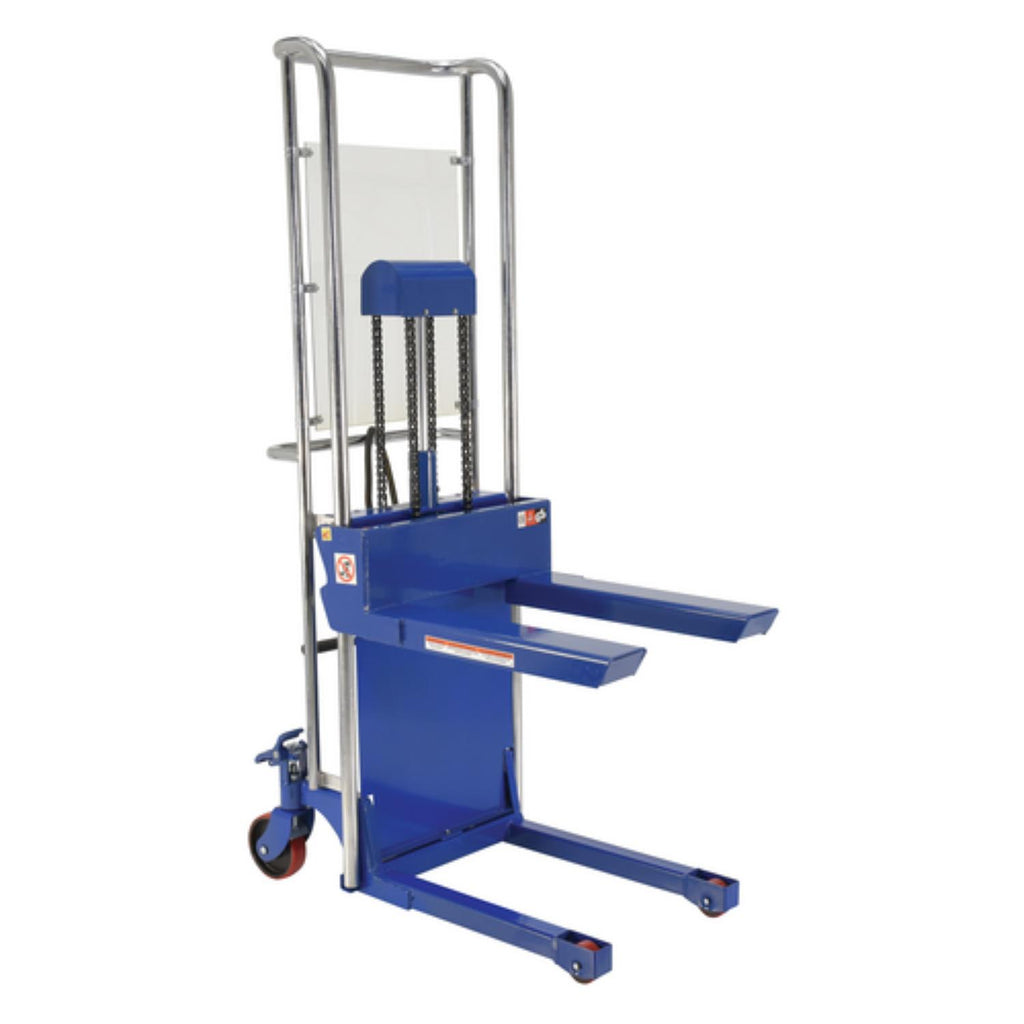

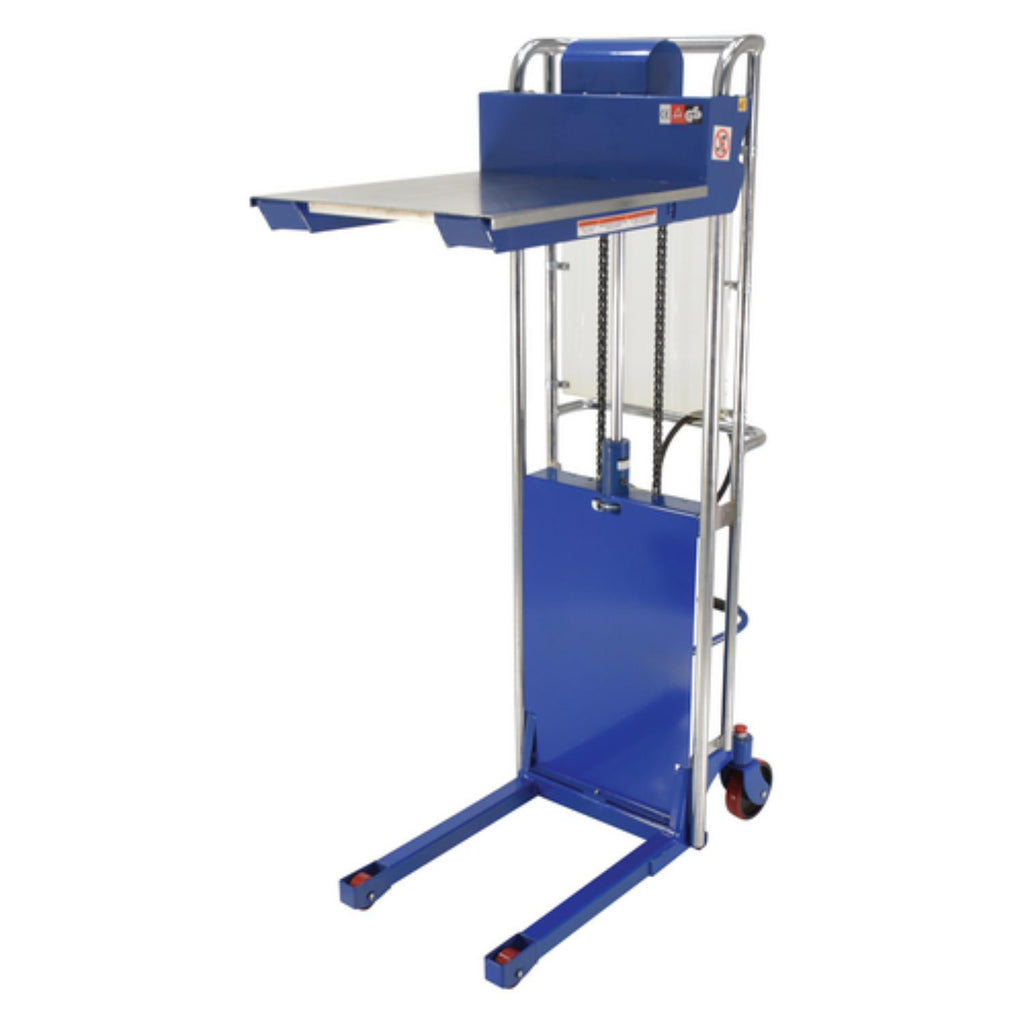

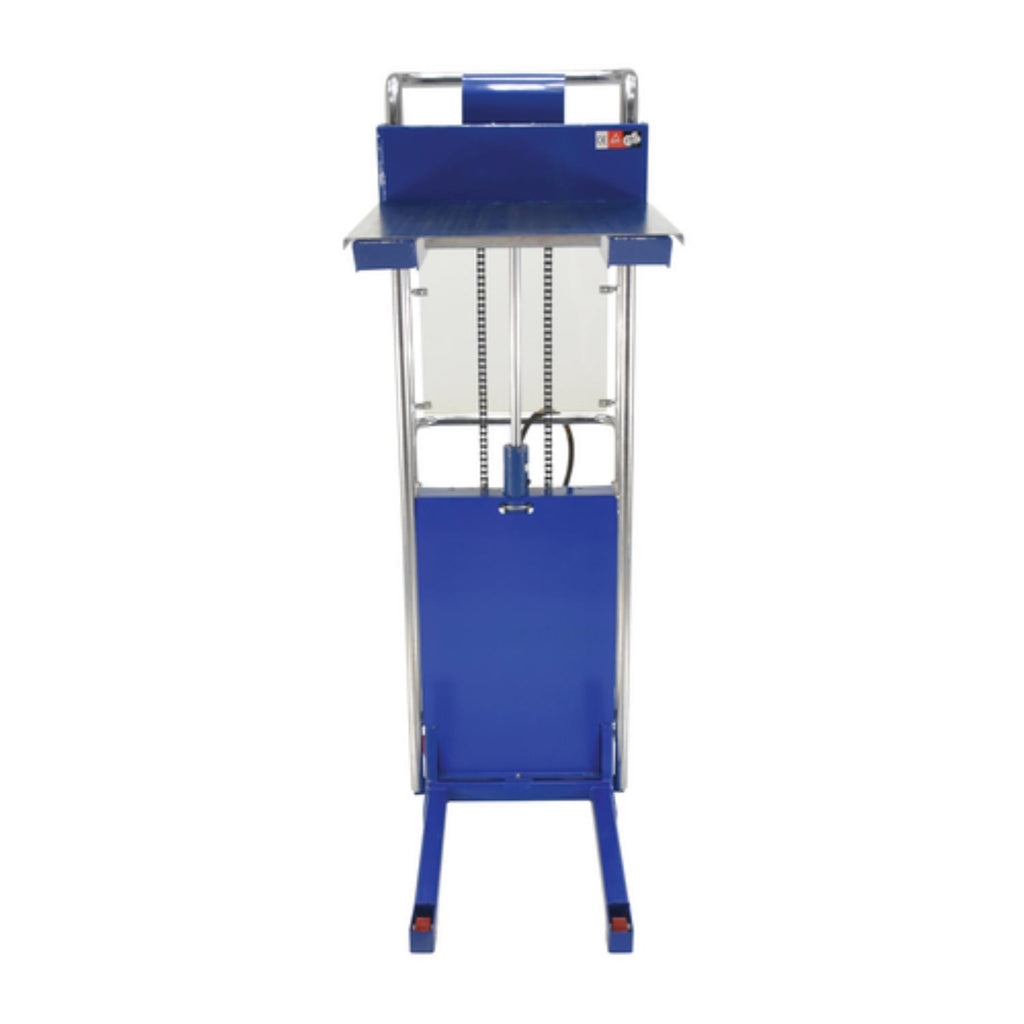

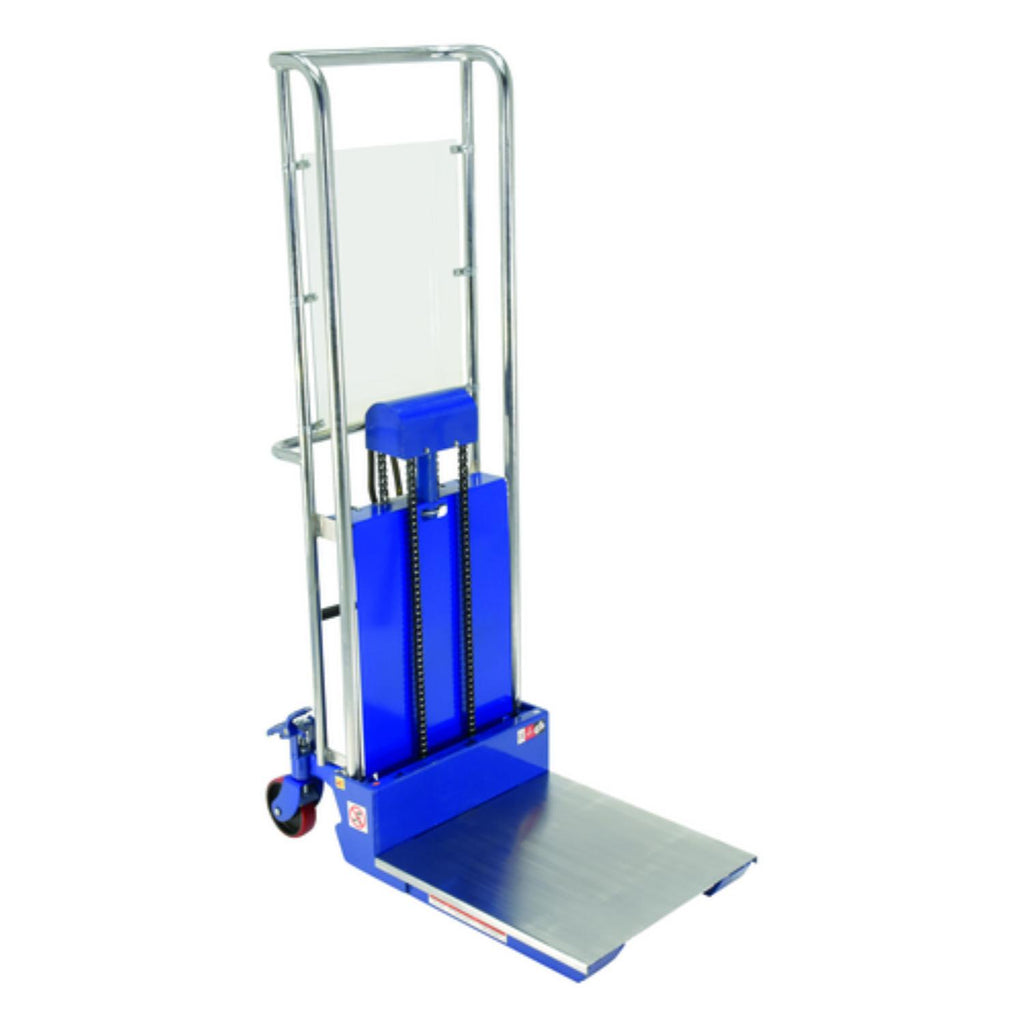

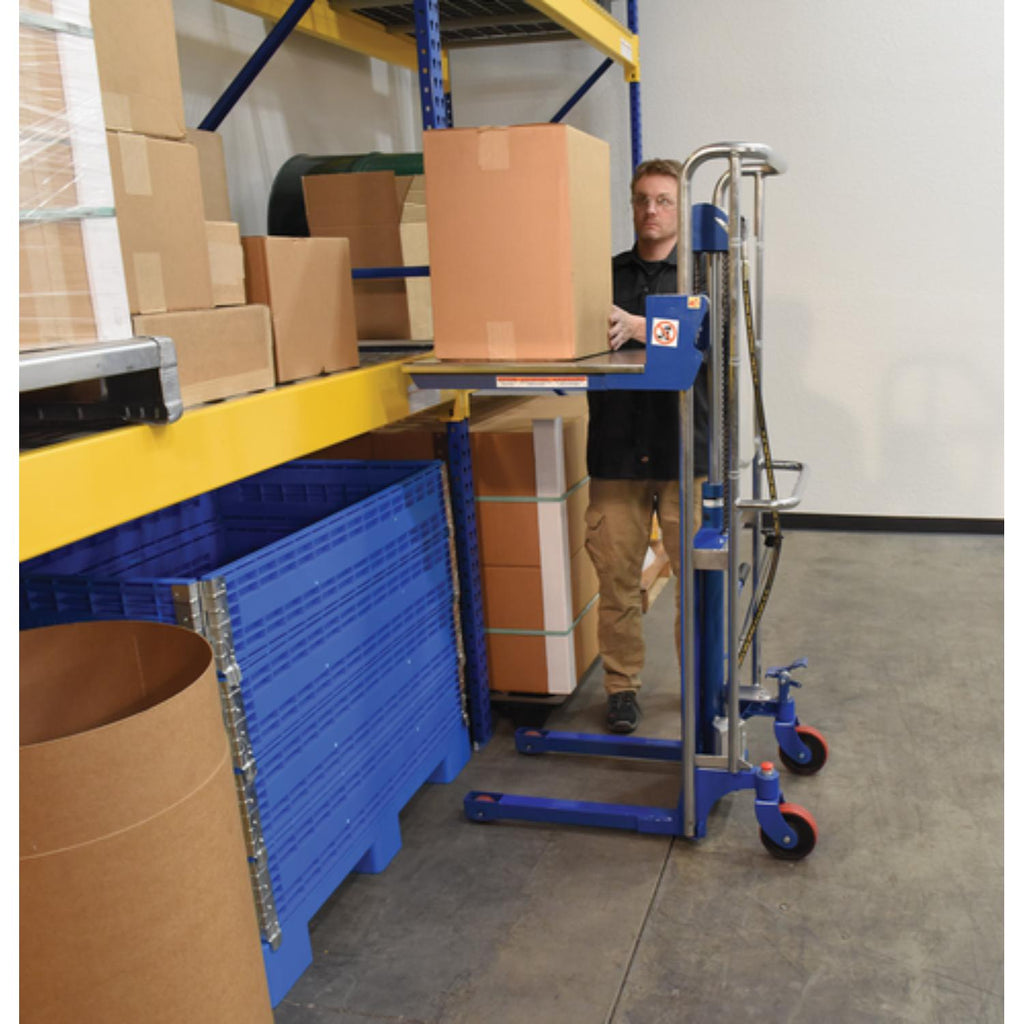

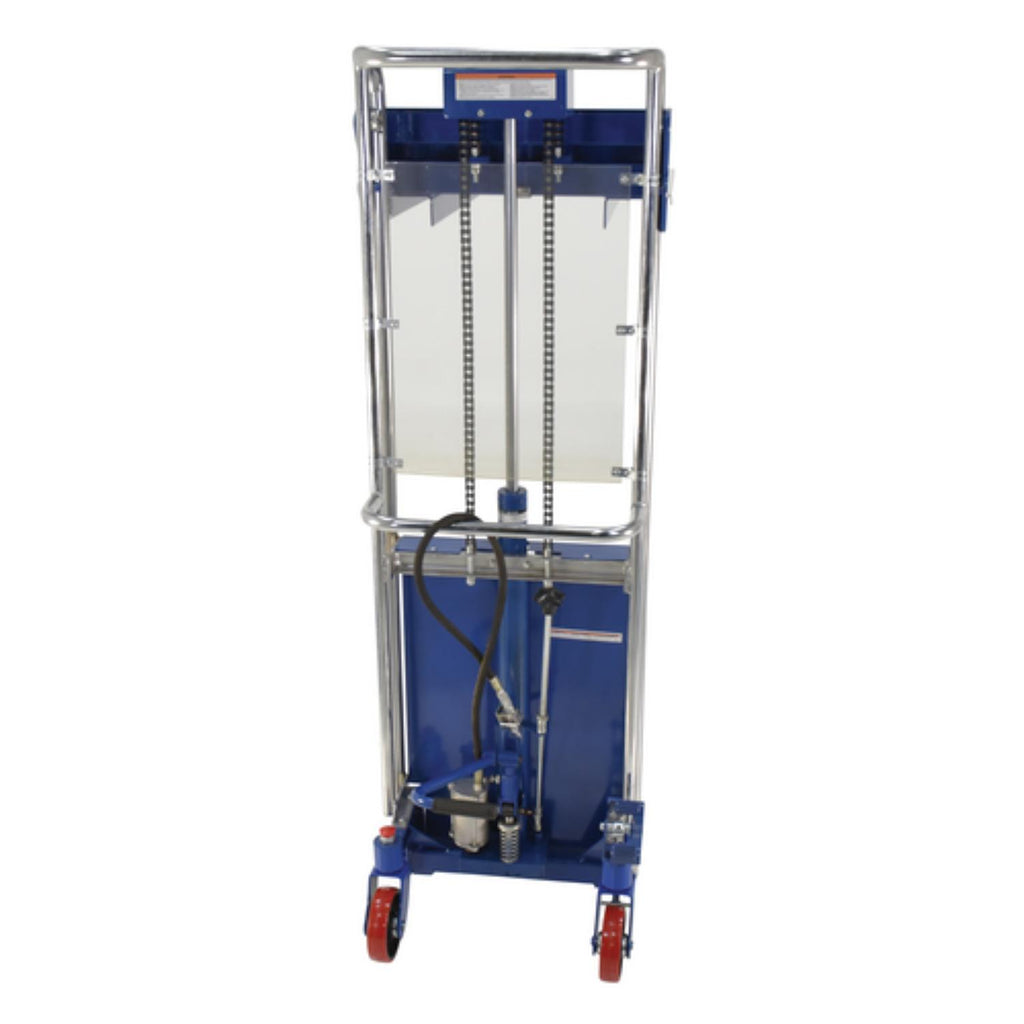

The air powdered Hetti-lifts are great a manufacturing or distributing facilities when space is limited. The single speed foot pump ad hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.
Features
- Extended arms for lifting support
- Air lifted for constant pressure
- Compact design fits into snug spaces
- Strong construction for durable use
Specifications
| Specification | Details |
|---|---|
| Power Source | Pneumatic |
| Color / Finish | Blue |
| Overall Length (in) | 36 |
| Overall Width (in) | 23 |
| Overall Height (in) | 70 |
| Platform Material | Steel |
| Platform Length (in) | 24 |
| Platform Width (in) | 23 |
| Maximum Height (in) | 59 |
| Minimum Height (in) | 3.5 |
| Maximum Travel Distance (in) | 55.5 |
| Weight Capacity (lbs) | 880 |
| Use Location | Universal |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 3 |
| Front Wheel Material | Poly on Steel |
| Collapsible | No |
| Weight (lbs) | 270 |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
