Description
Description

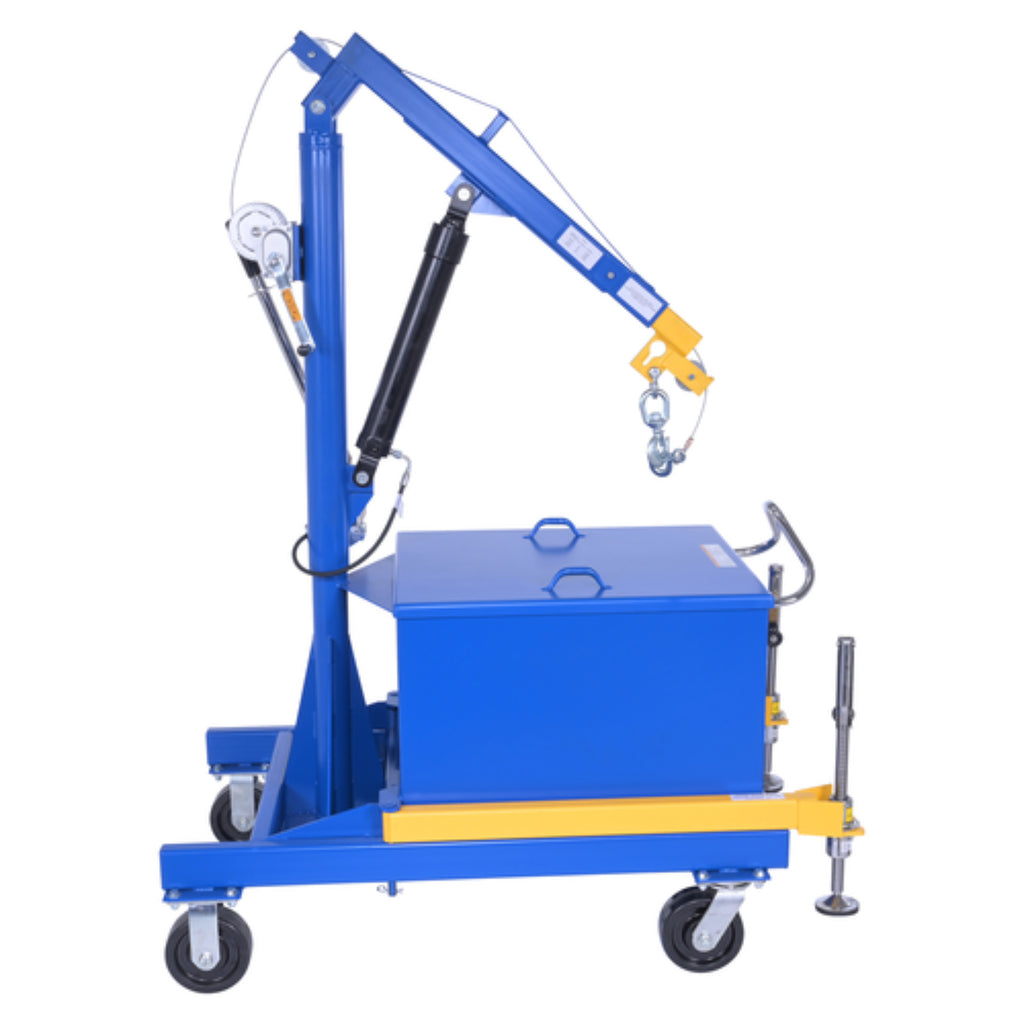

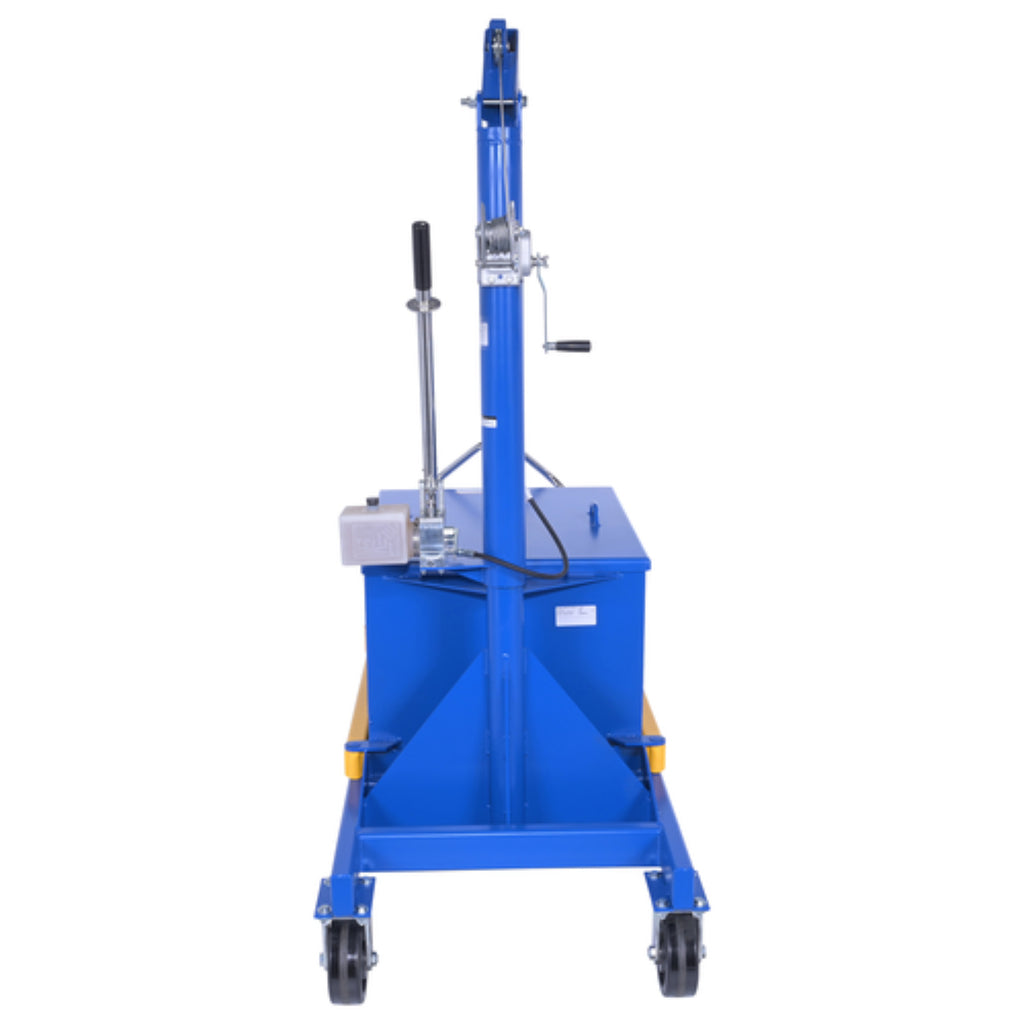

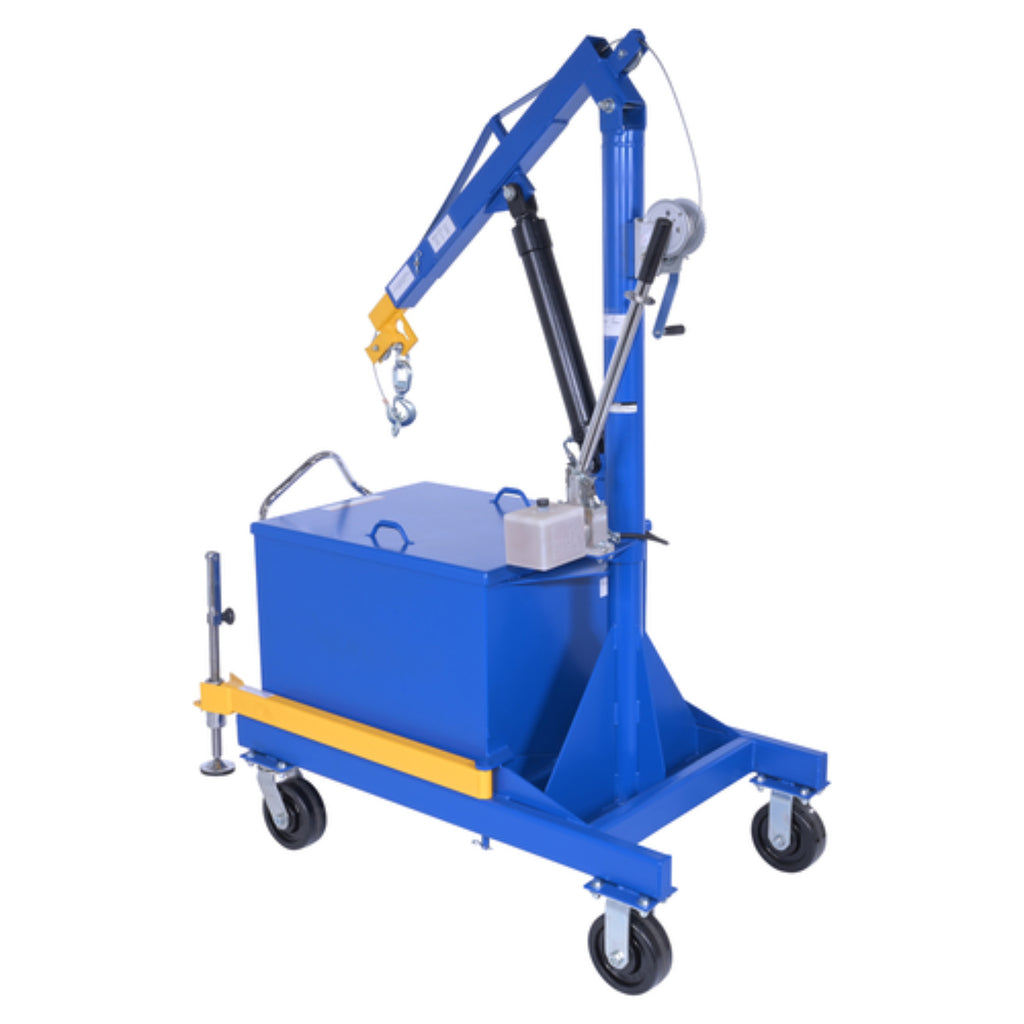

The portable Cantilever hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond the frame is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.
Features

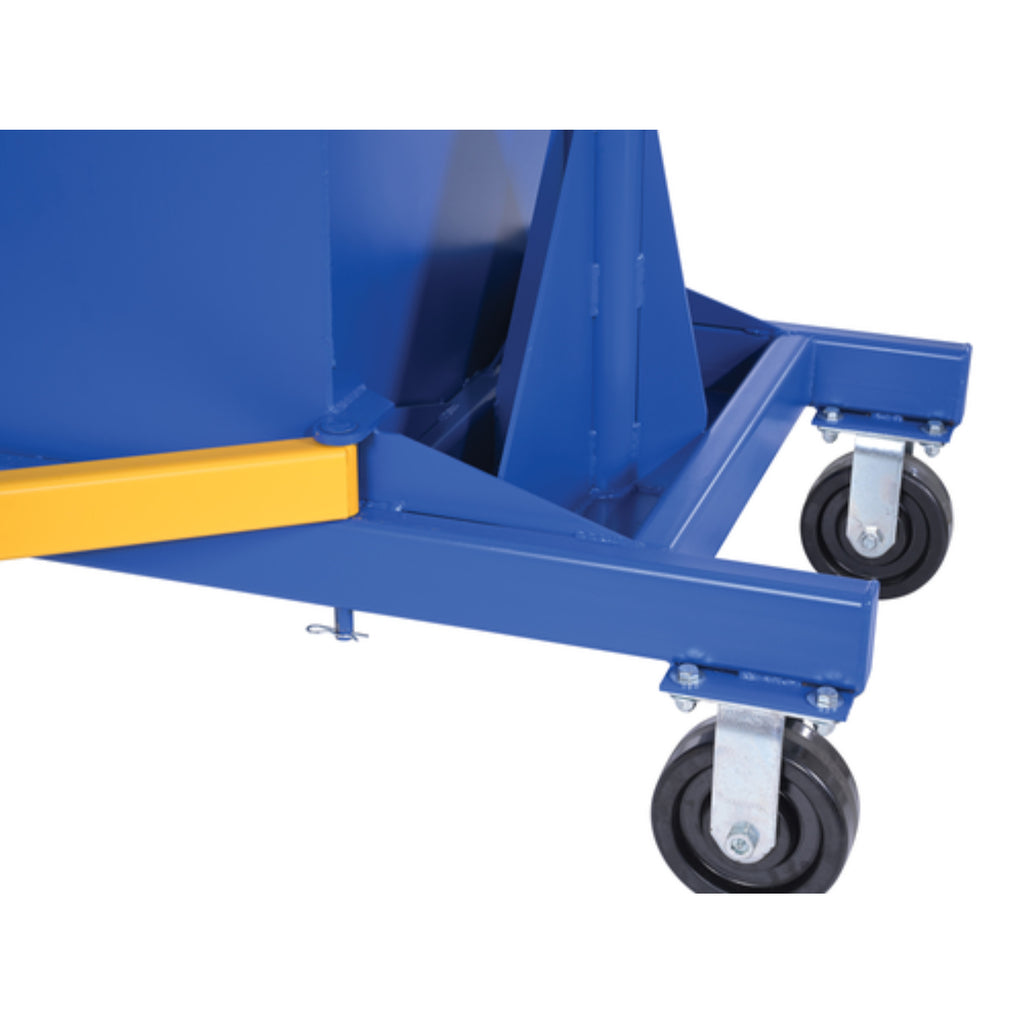

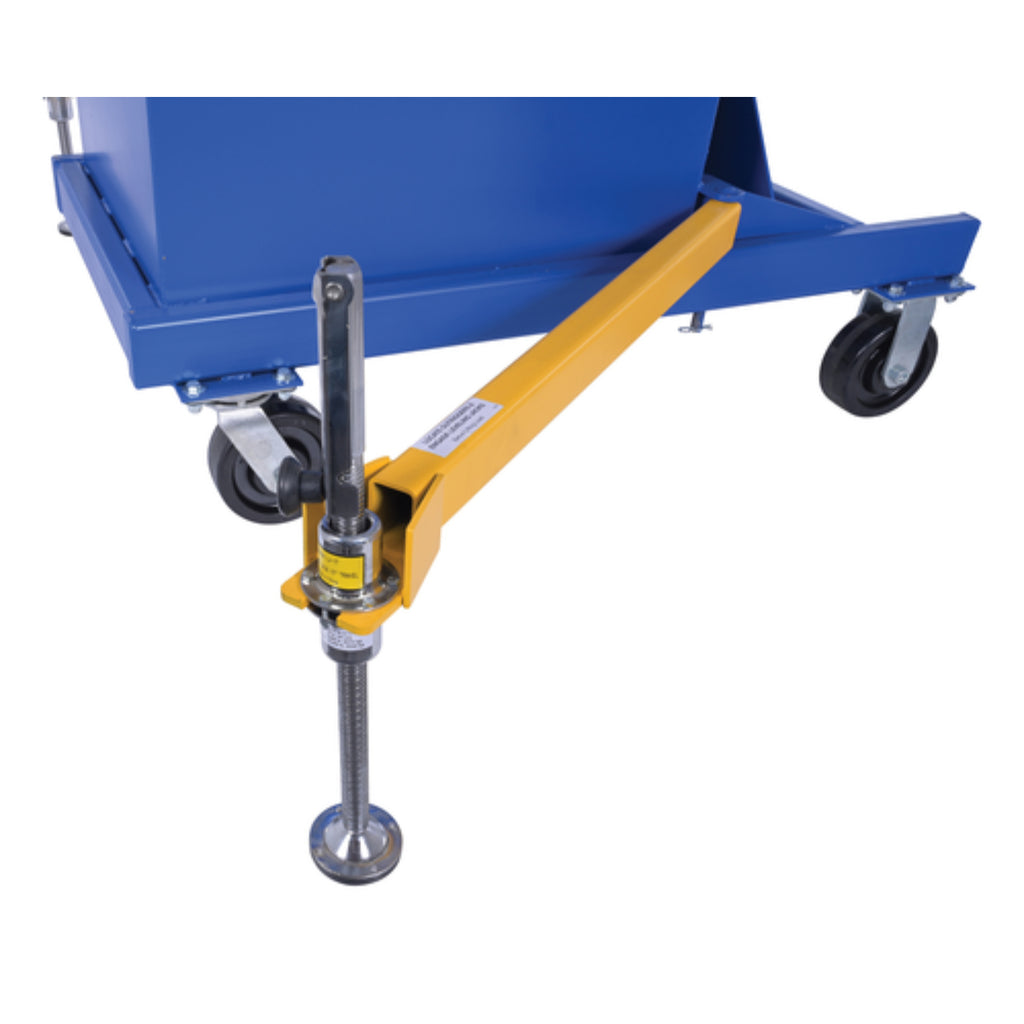

- Outriggers increase stability with counter-balanced/cantilever design
- Adjustable and extendable boom

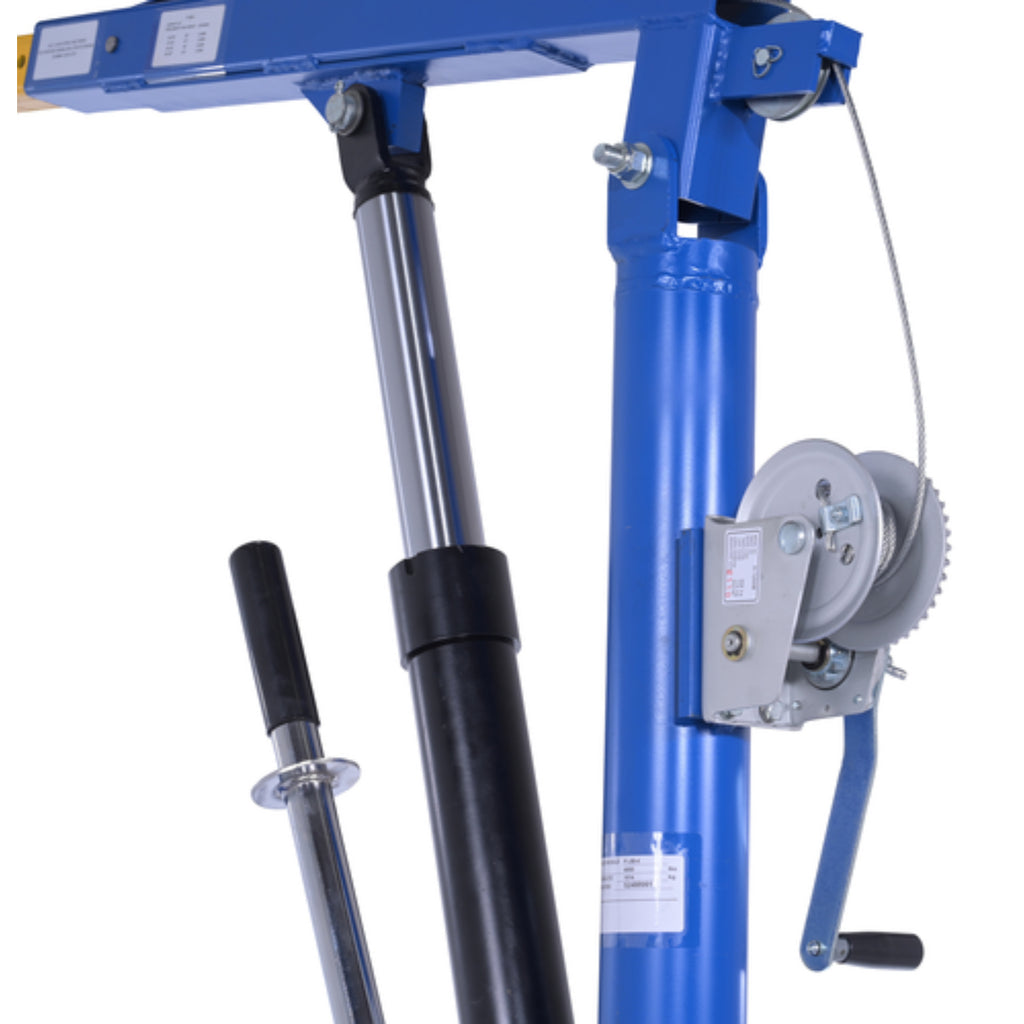

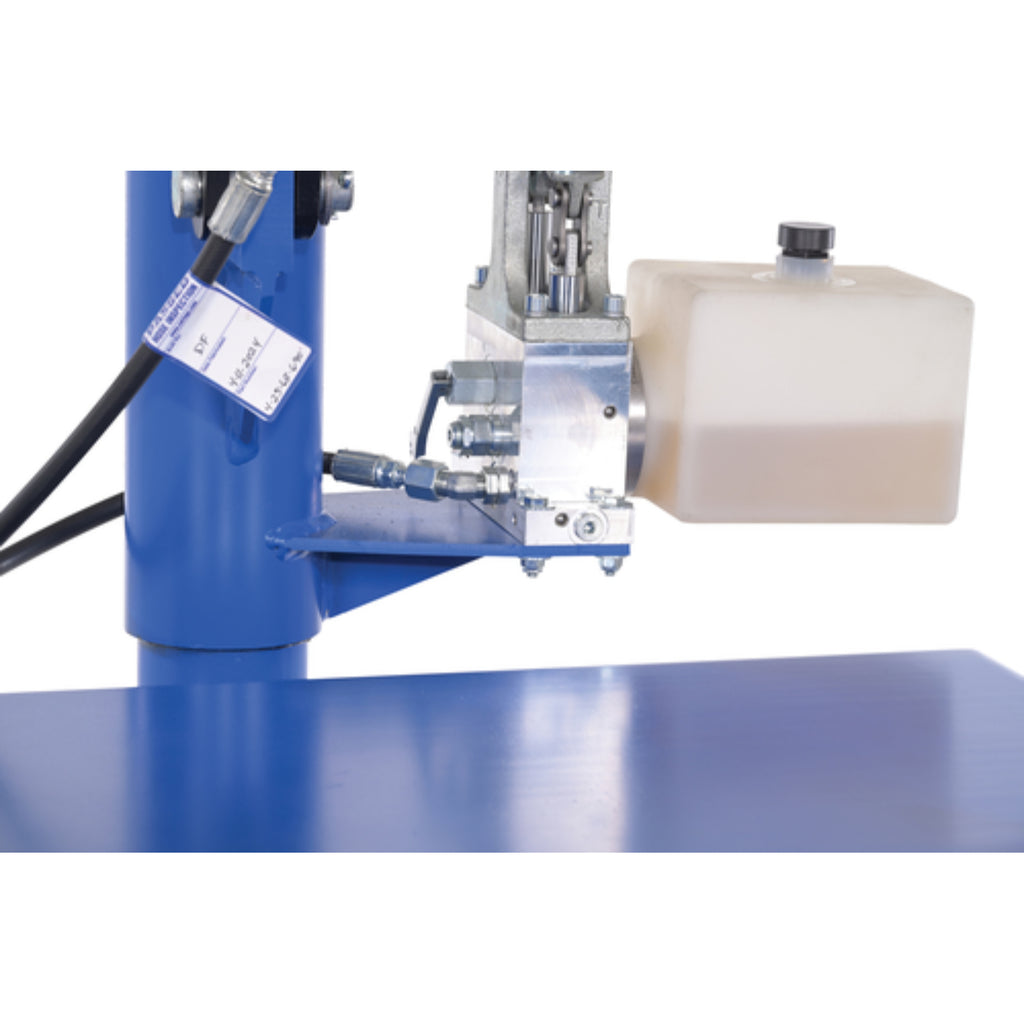

- Double acting hydraulic hand pump for simple use
- Boom swivels 360 degrees
Specifications
| Specification | Value |
|---|---|
| Capacity (lbs) | 4000 |
| Frame Material | Steel |
| Beam Height (in) | 2.5 |
| Beam Length (in) | 58.25 |
| Usable Beam Length (in) | 50.375 |
| Flange Width (in) | 4 |
| Base Length (in) | 81.03125 |
| Base Width (in) | 35.1875 |
| Base Height (in) | 40.875 |
| Maximum Rotation (°) | 360 |
| Overall Height (in) | 90.125 |
| Ground Clearance (in) | 73.785 |
| Color / Finish | Blue |
| Forklift Compatible | No |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Front Wheel Diameter (in) | 8 |
| Wheel Material | Phenolic |
| Weight (lbs) | 950 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
