Description
Description

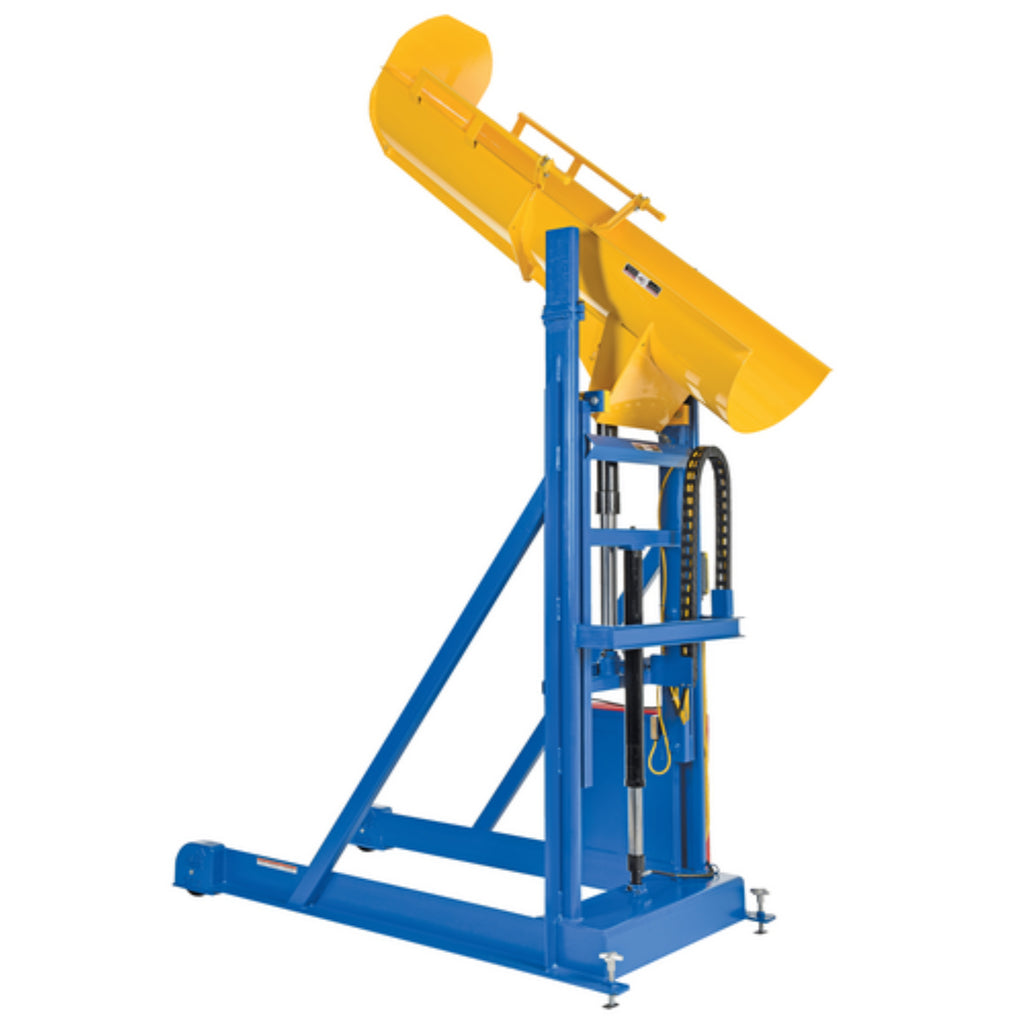

The portable lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. Feature a four (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.
Features
- Drum dumper is needed to dump drums at variable heights
- Similar to HDD because adjustable restraints work with 30 and 55 gal drums
- Features a lift cylinder that allows you to dump at various heights
- Includes pendant which allows full independent control of lift height and dump angle
Specifications
| Property | Details |
|---|---|
| Power Source | Electric - Corded |
| Color / Finish | Blue/Yellow |
| Frame Material | Steel |
| Overall Width (in) | 51 |
| Overall Depth (in) | 75.375 |
| Compatible Drum Material | Steel, Plastic & Fiber |
| Compatible Drum Size | 55 Gallon & 30 Gallon |
| Weight Capacity (lbs) | 1000 |
| Overall Lowered Height (in) | 48 |
| Overall Raised Height (in) | 163 |
| Minimum Dump Height (in) | 48 |
| Maximum Dump Height (in) | 94 |
| Dump Angle (°) | 40 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Weight (lbs) | 1277 |
| Manufacturer Warranty | 1 Year |
Downloads
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
