Description
Description

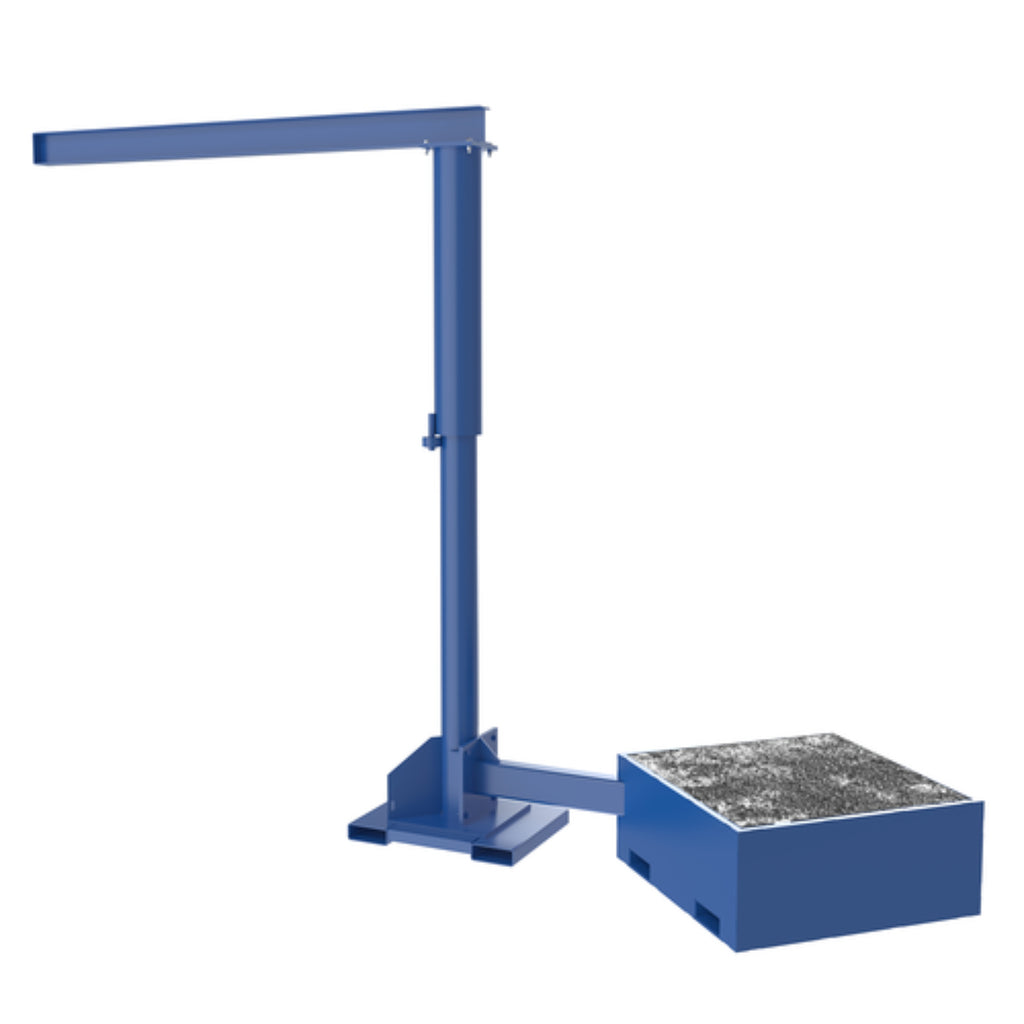

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base with jib crane includes instructions for proper filling with concrete. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam.
Features
- Includes built-in fork tubes
- Fill standard base with concrete for proper use
- Upright vertical column bolts to base for optimal efficiency
- Steel construction for strength and durability
Specifications
| Specification | Value |
|---|---|
| Capacity (lbs) | 500 |
| Frame Material | Steel |
| Beam Height (in) | 6 |
| Beam Length (in) | 96 |
| Usable Beam Length (in) | 85.75 |
| Flange Width (in) | 4 |
| Base Length (in) | 42.1875 |
| Base Width (in) | 42.1875 |
| Base Height (in) | 18 |
| Maximum Rotation (°) | 360 |
| Overall Height (in) | 126.25 |
| Ground Clearance (in) | 120.25 |
| Color / Finish | Blue |
| Forklift Compatible | Yes |
| Compatible Fork Thickness (in) | 2.5 |
| Compatible Fork Width (in) | 7.5 |
| Fork Pocket - Center to Center (in) | 24 |
| Number of Casters / Wheels | No Wheels / Casters |
| Weight (lbs) | 3416 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
