Description
Description

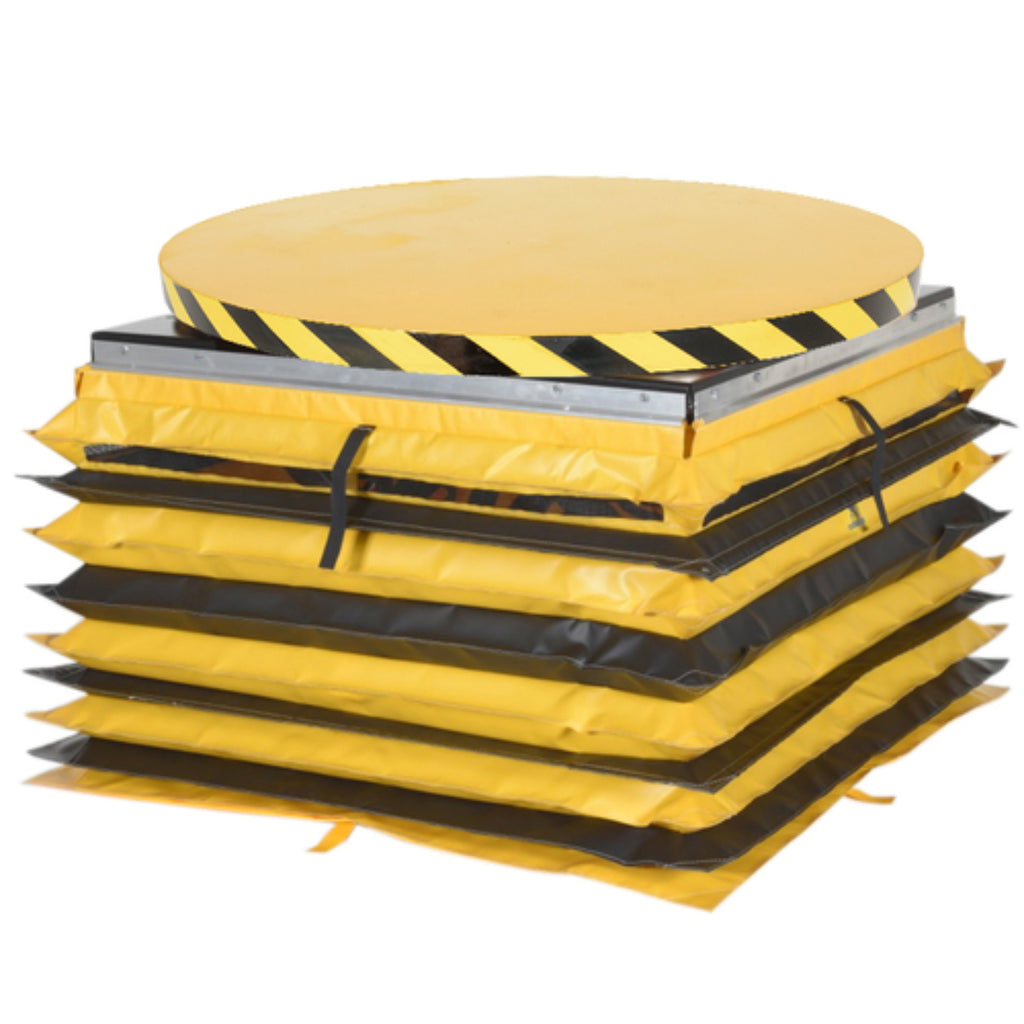

Manual rotation and powered lift/lower turntable is ideal for commercial and industrial applications. This unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. Compact, economical and easy to use. The 43-5/8" diameter top can be rotated 360 degrees for improved packaging and handling capabilities. Heavy duty/high quality steel construction. Power supply is 115V, 1-phase. Durable powder coat finish.
Features
- Raised and lowered with standard foot control
- Manually rotated for precise positioning
- Built in fork pockets
- Customer installed accordion skirt
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 44 |
| Platform Width (in) | 44 |
| Platform Material | Steel |
| Maximum Height (in) | 28 |
| Minimum Height (in) | 11.875 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue/Yellow |
| Weight (lbs) | 532 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Portable | Yes |
| Number of Casters / Wheels | 2 |
| Rear Wheel Diameter (in) | 2.5 |
| Rear Wheel Material | Nylon |
| Installation Hardware Included | Yes |
| Overall Length (in) | 44 |
| Overall Width (in) | 44 |
| Overall Height (in) | 28 |
| Maximum Travel Distance (in) | 16.125 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
