Description
Description

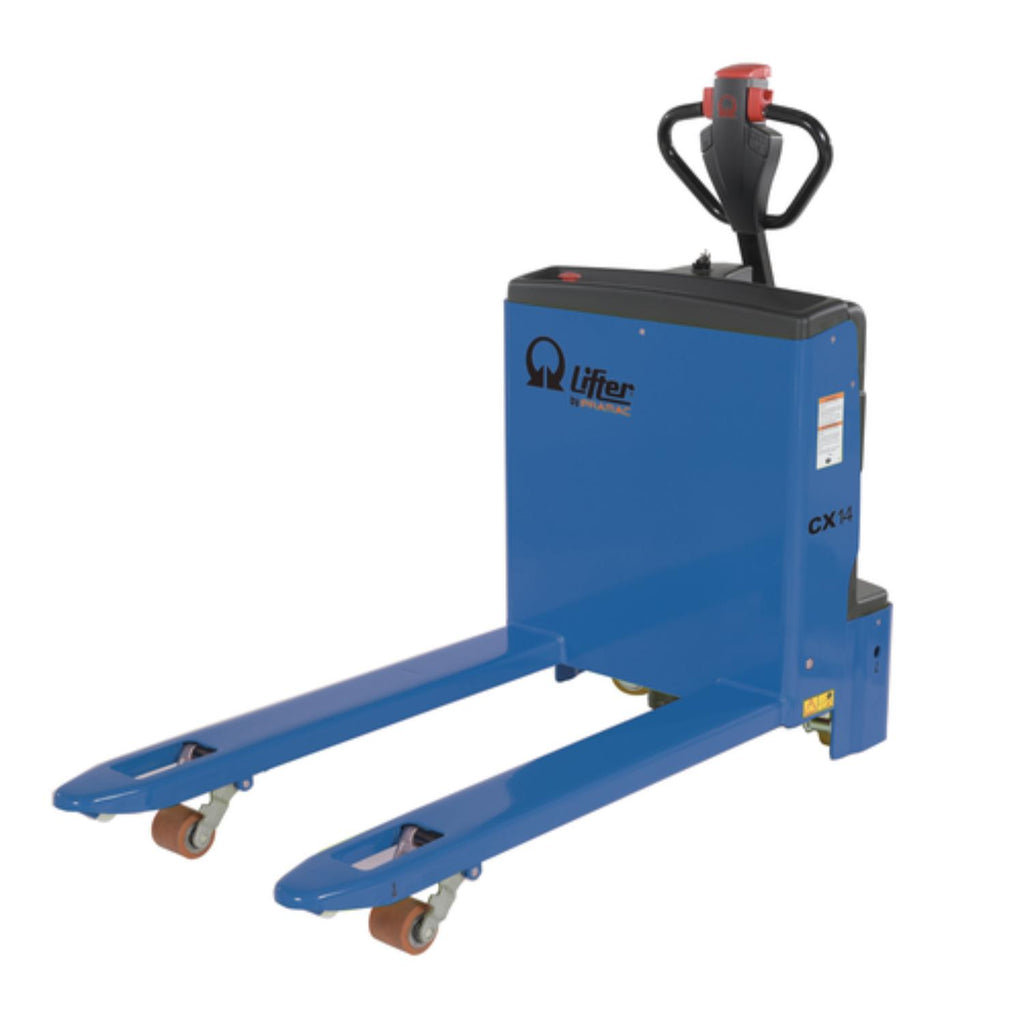

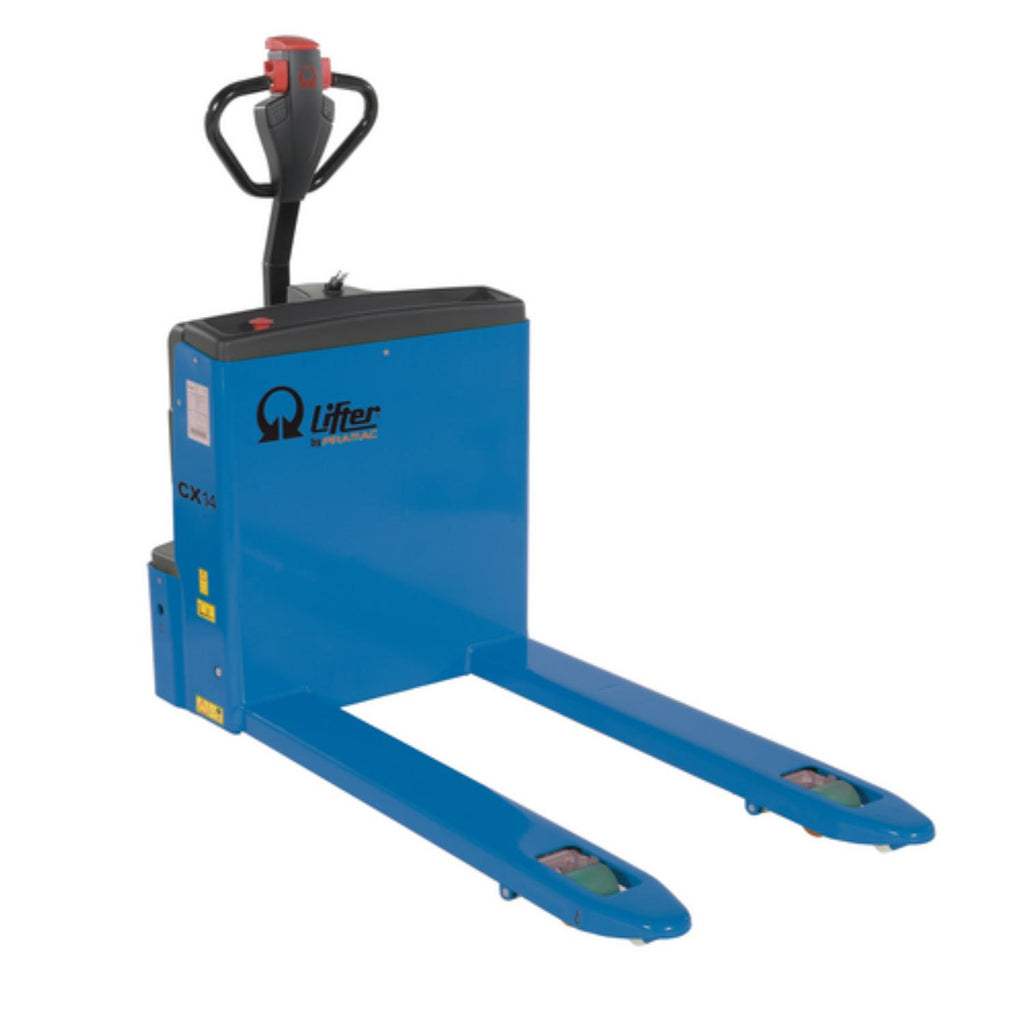

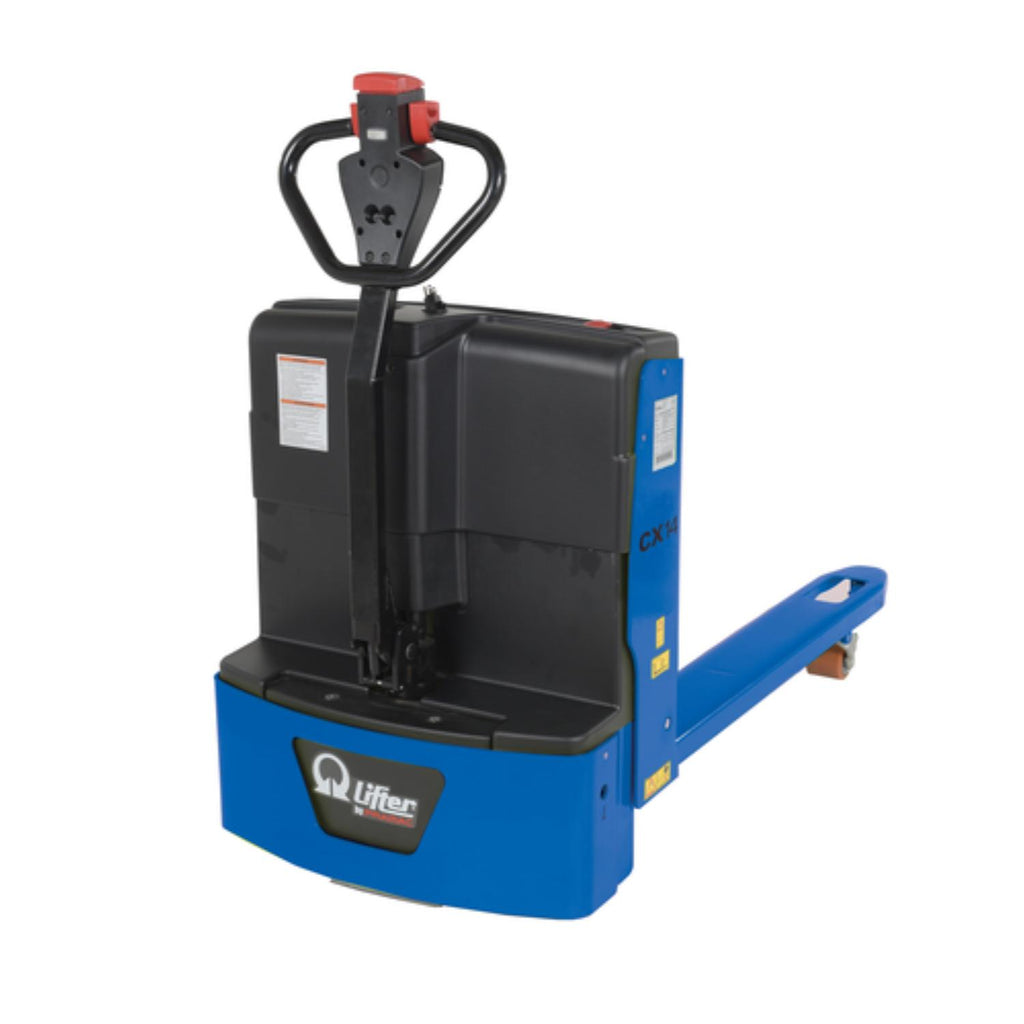

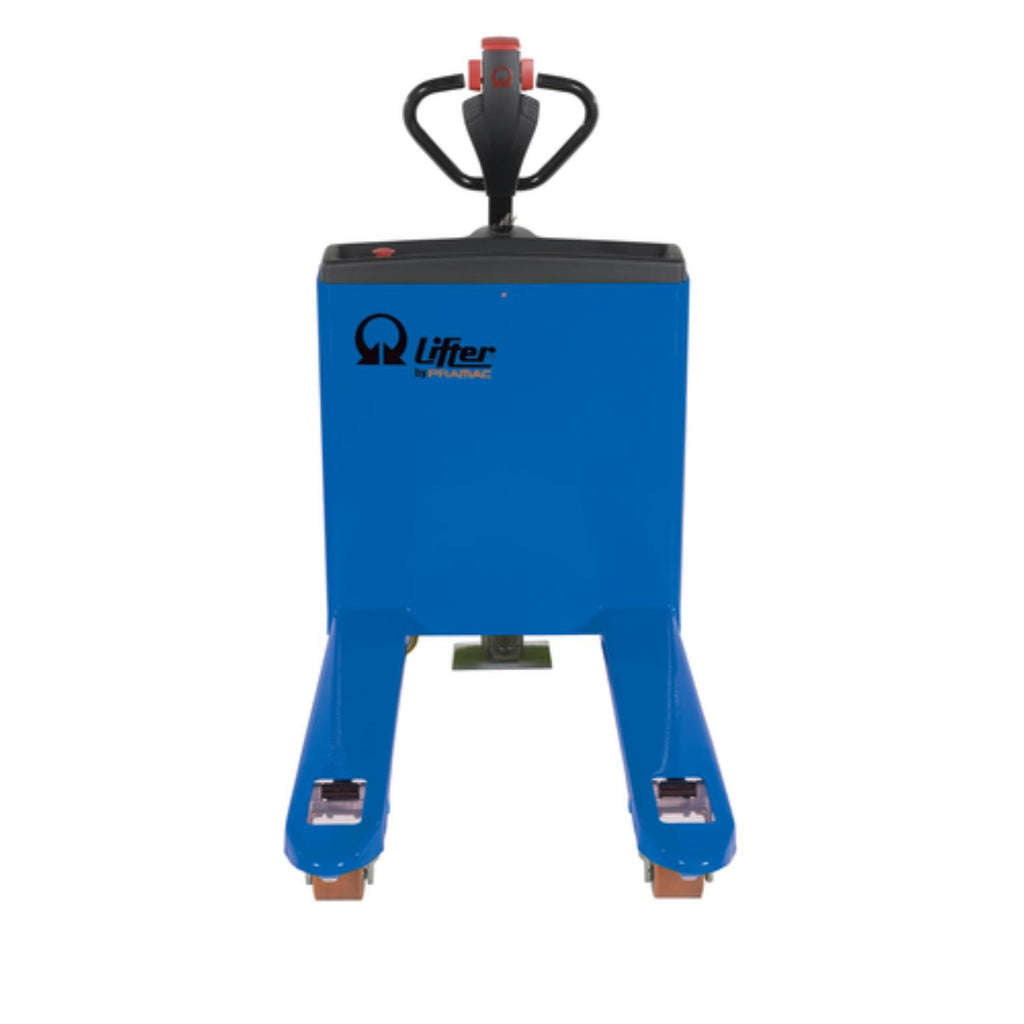

Designed to make the operator's task extremely easy. This truck combines the compactness and versatility of a hand pallet truck with the ergonomics of an electric pallet truck. It is suited for moving loads in confined spaced where larger electric pallet trucks will not fit. Overall dimensions are 20" x 60", with a turning radius of only 50". Individual fork width is 6.". Machine's stability is guaranteed by the lateral stabilizing wheels. Ergonomic handle offers ease of use with battery charge LED indicator. Features "tortoise" push button for slow motion and a safety punch button with warning buzzer. Utilizes (2) two 12V batteries.
Features
- Two wheels for stabilization during movement
- Bright battery charge indicator for clear discernment
- Long handle for ergonomically friendly posture
- Push button safety for secure warning
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue / Black |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 53 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 7.875 |
| Maximum Travel Distance (in) | 4.5 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 2500 |
| Turning Radius (in) | 50 |
| Maximum Fork Height (in) | 7.875 |
| Depth (in) | 60 |
| Height (in) | 53 |
| Width (in) | 27 |
| Wheel Material | Rubber |
| Fork Lowered Height (in) | 3.375 |
| Fork Width (in) | 27 |
| Fork Length (in) | 45 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
