Description
Description

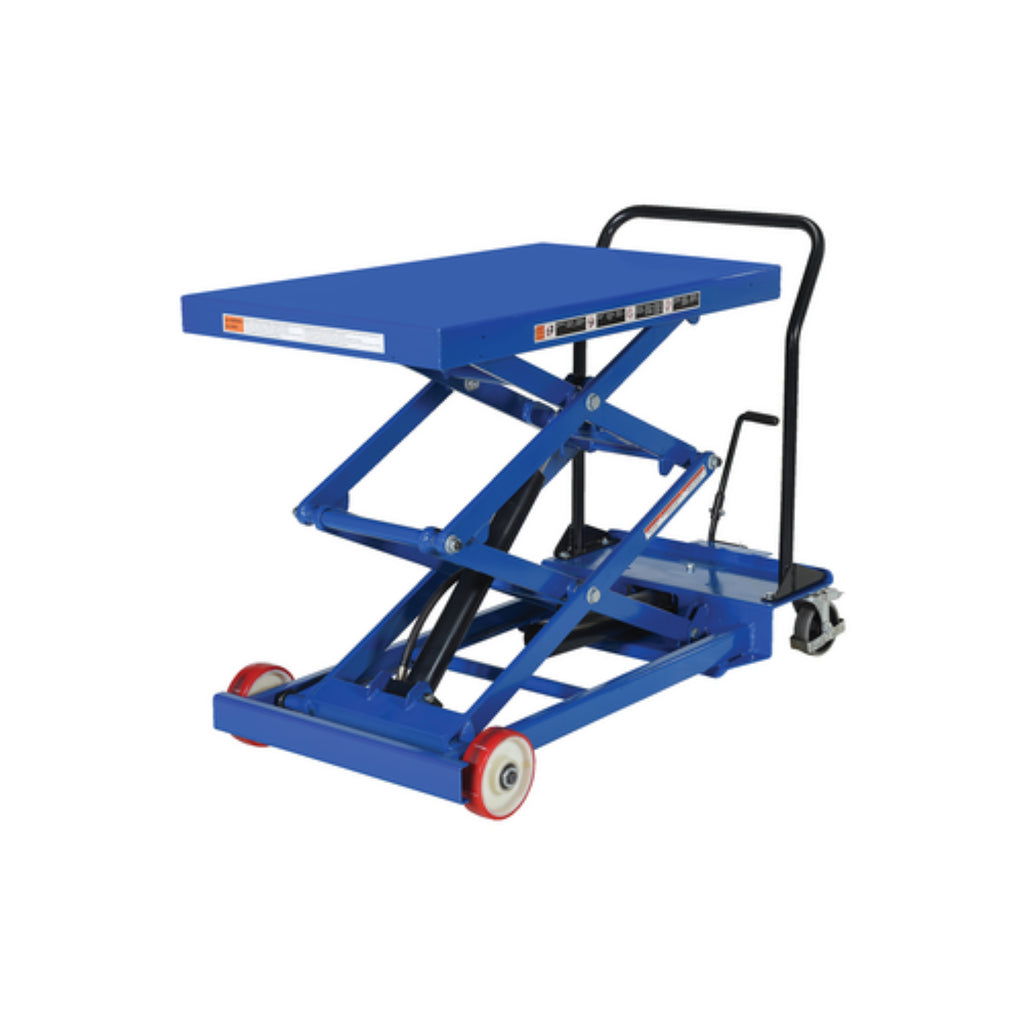

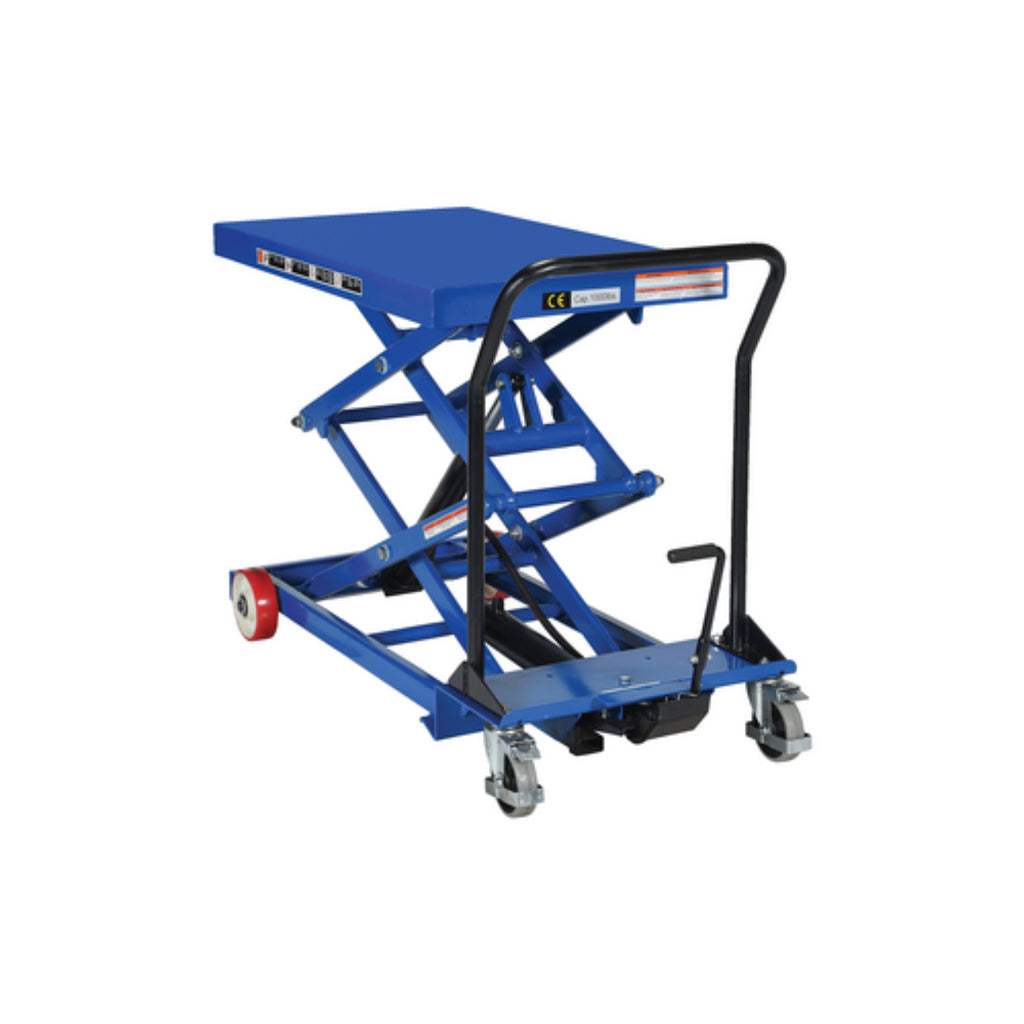

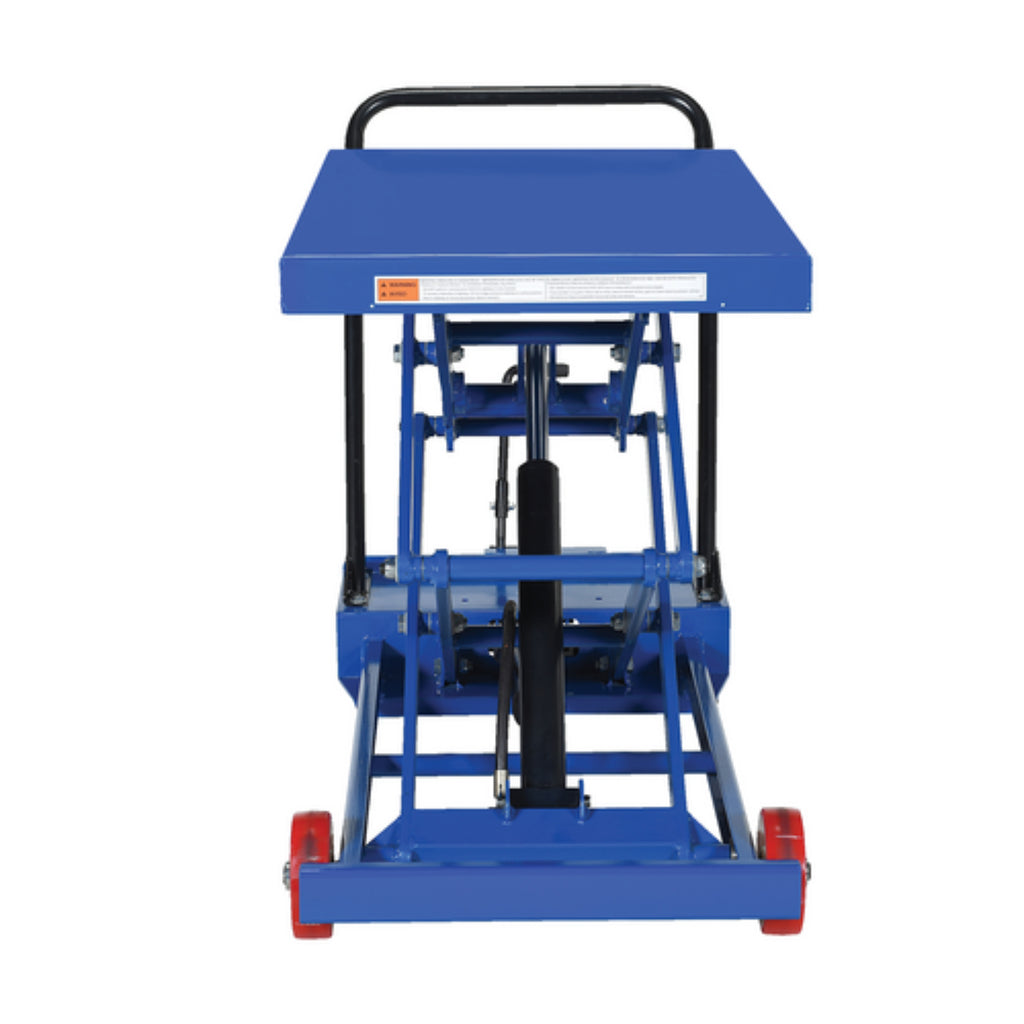

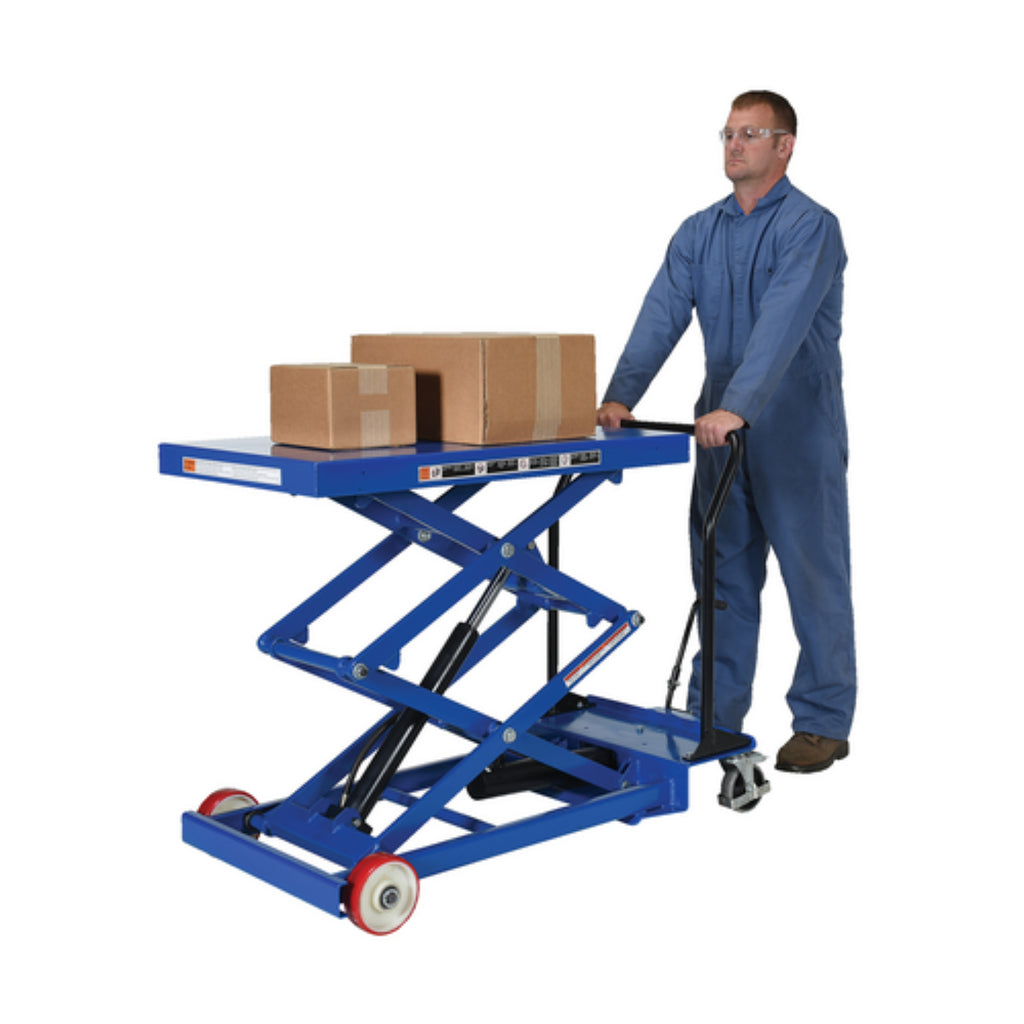

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 40.5 |
| Platform Width (in) | 24 |
| Platform Material | Steel |
| Maximum Height (in) | 61.5 |
| Minimum Height (in) | 11.75 |
| Maximum Travel Distance (in) | 49.75 |
| Weight Capacity (lbs) | 1,000 |
| Color / Finish | Blue |
| Weight (lbs) | 316 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 1 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 8 |
| Front Wheel Material | Hard Rubber |
| Additional Contents | Double Scissor - Includes (2) Rear Casters with 1.5" Width, and (2) Front Casters with 2" Width |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 53.5 |
| Overall Width (in) | 26 |
| Overall Height (in) | 38 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
