Description
Description

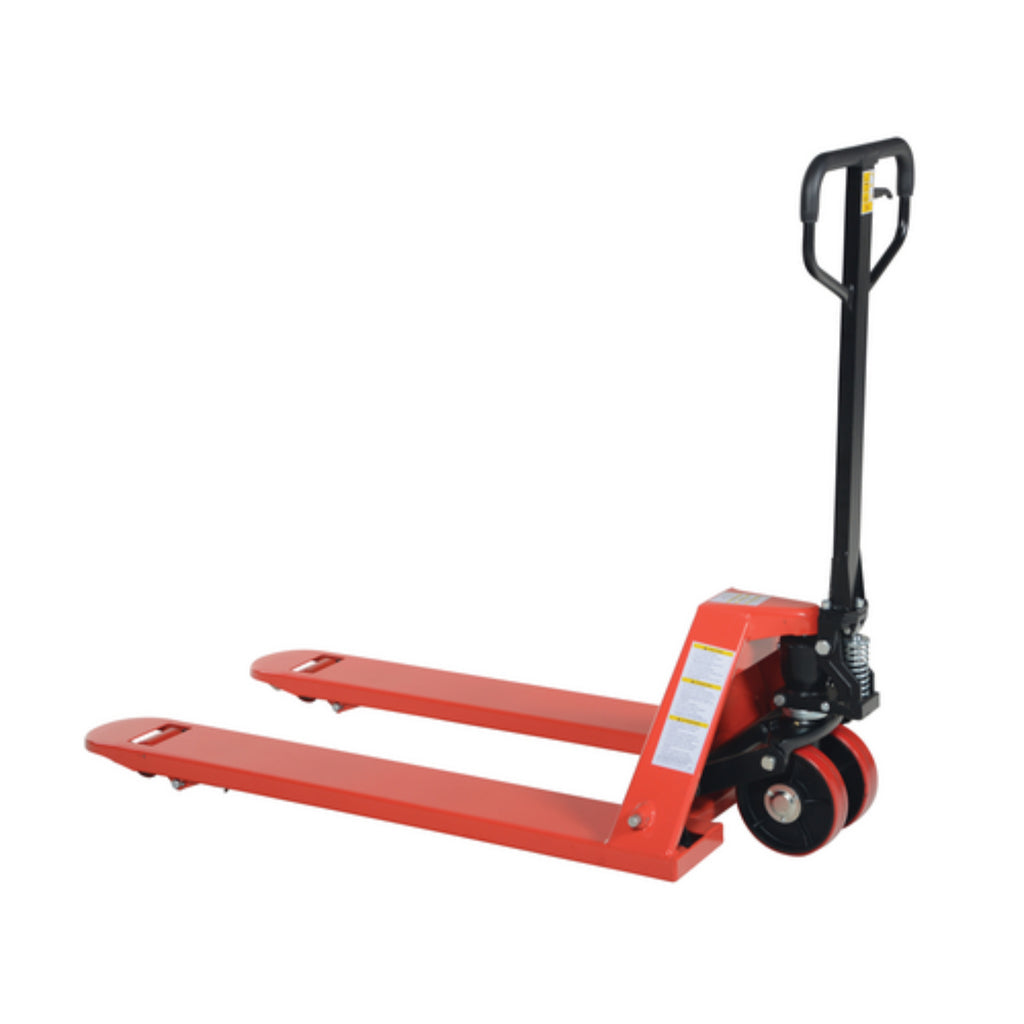

An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Forks are 7" wide each. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement.
Features
- Requires seventy-five (75) pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Triple-formed steel forks provide twice the strength of single-formed forks
- Spring loaded handle automatically returns to vertical position
Specifications
| Specification | Value |
|---|---|
| Assembly Required | None |
| Color / Finish | Red |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 48 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 7.75 |
| Power Source | Hand |
| Weight Capacity (lbs) | 6000 |
| Application | Move fully loaded pallets without the use of a fork truck |
| Depth (in) | 61 |
| Height (in) | 48 |
| Width (in) | 27 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
