Description
Description

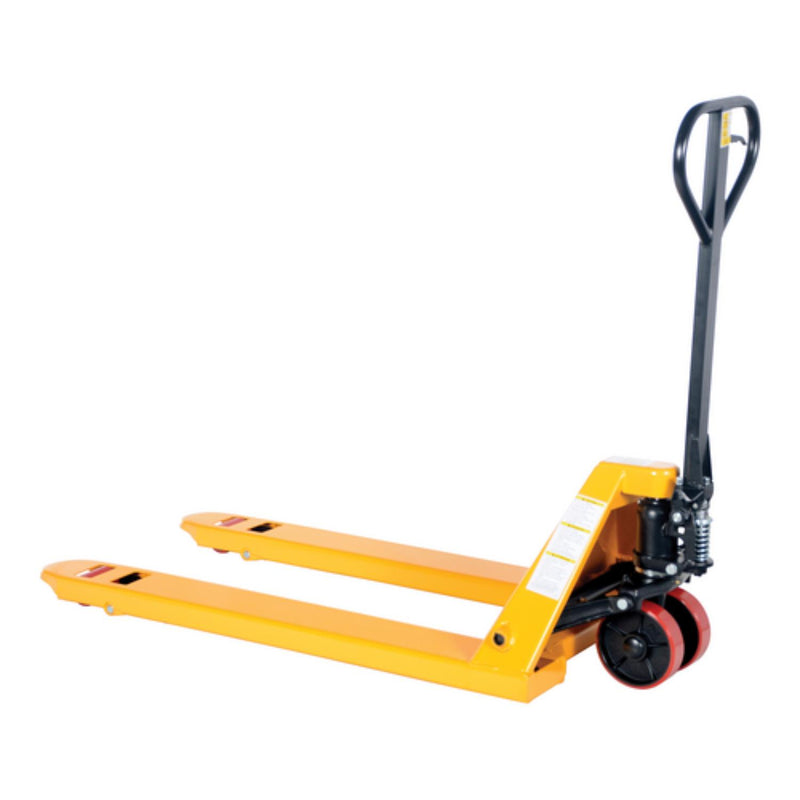

The standard pallet truck has a proven ergonomic design that has been time-tested for providing years of reliable service. It's an economical way for one person to move pallet loads without the use of a fork truck. The ergonomic design requires only 75 pounds of pulling force when fully loaded. The spring loaded hoop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. The pallet truck is quality built, user friendly, requires low maintenance, and has a powder coat finish.
Features
- Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
- Chrome-plated hydraulic pump piston for long seal life
Specifications
| Specification | Value |
|---|---|
| Assembly Required | Partial |
| Color / Finish | Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 48 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 7.75 |
| Power Source | Hand |
| Weight Capacity (lbs) | 5500 |
| Application | Move fully loaded pallets without the use of a fork truck |
| Depth (in) | 61.6875 |
| Height (in) | 48.625 |
| Width (in) | 27 |
| Wheel Material | Polyurethane |
| Fork Lowered Height (in) | 2.875 |
| Fork Width (in) | 7 |
| Fork Length (in) | 48 |
| Load Center (in) | 19 |
| Fork Saddle Width (in) | 27 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
