Description
Description

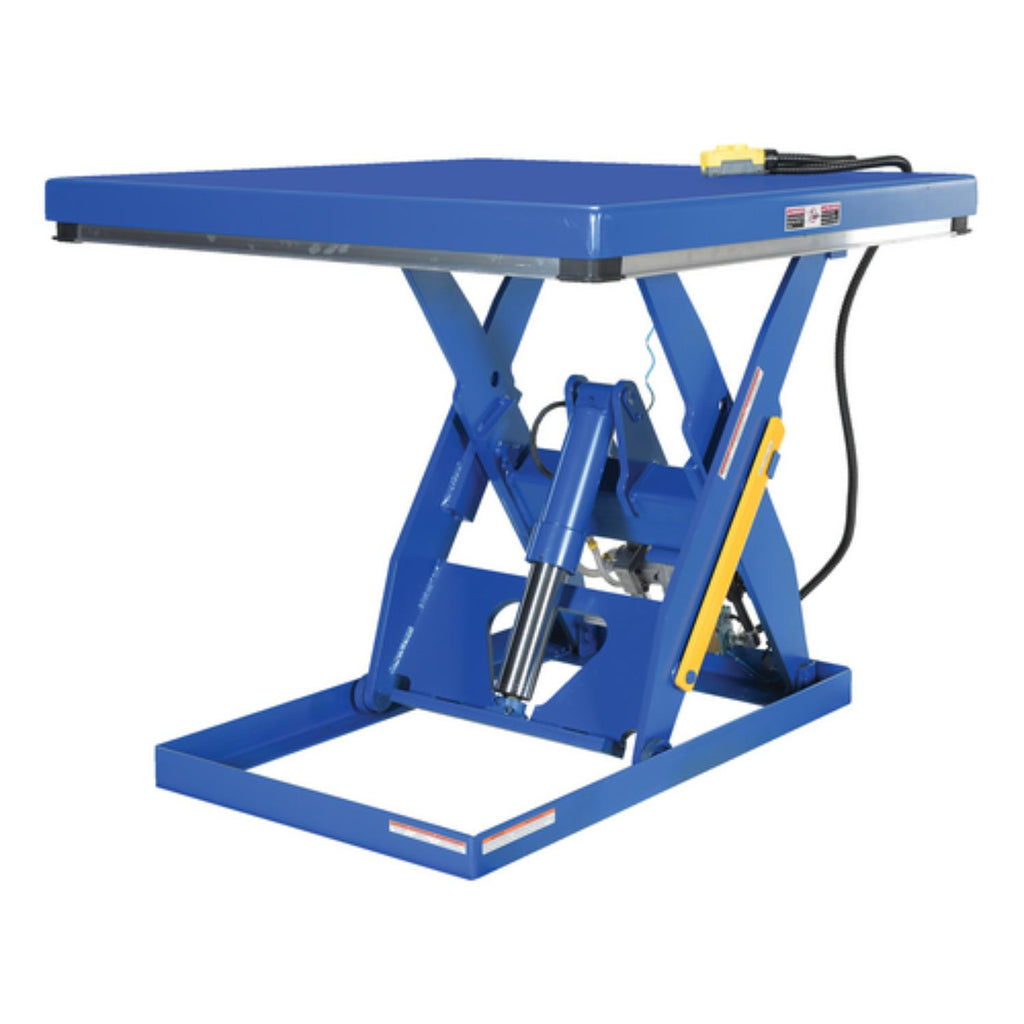

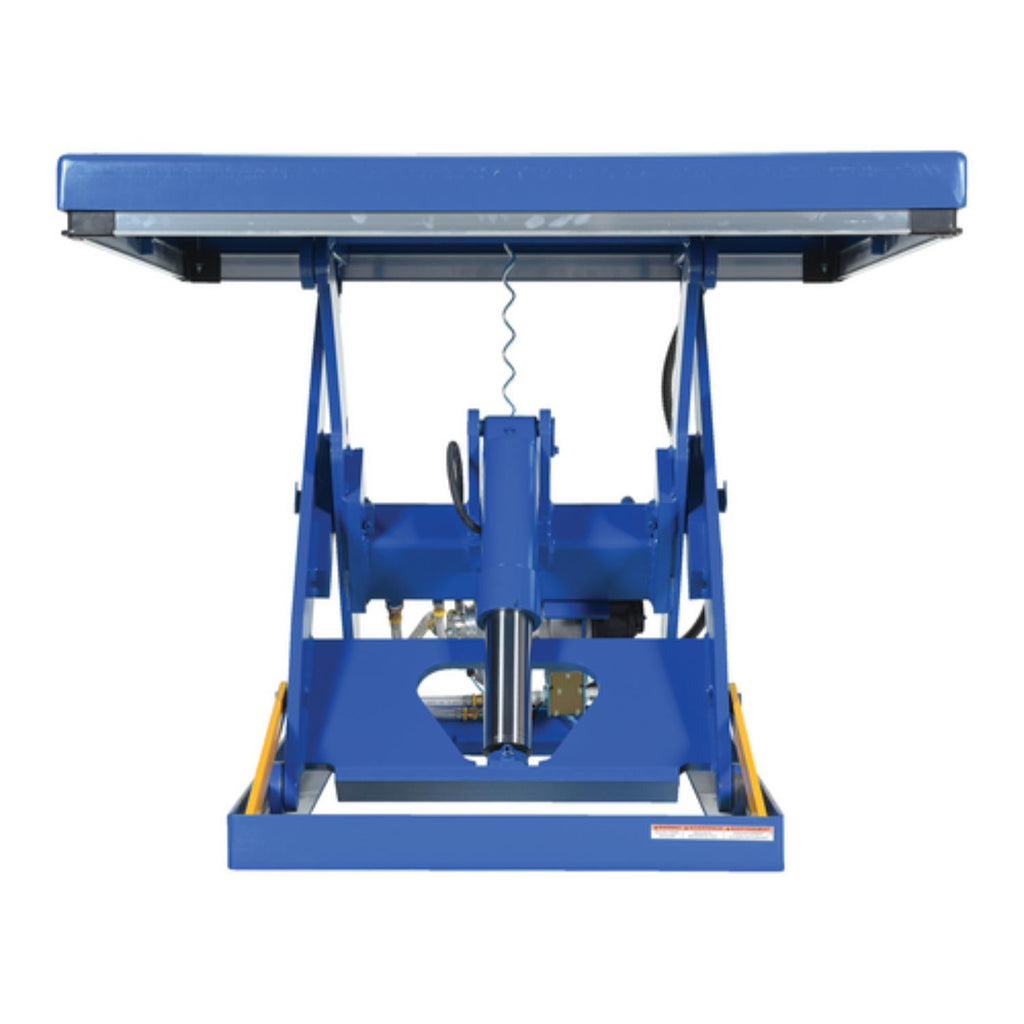

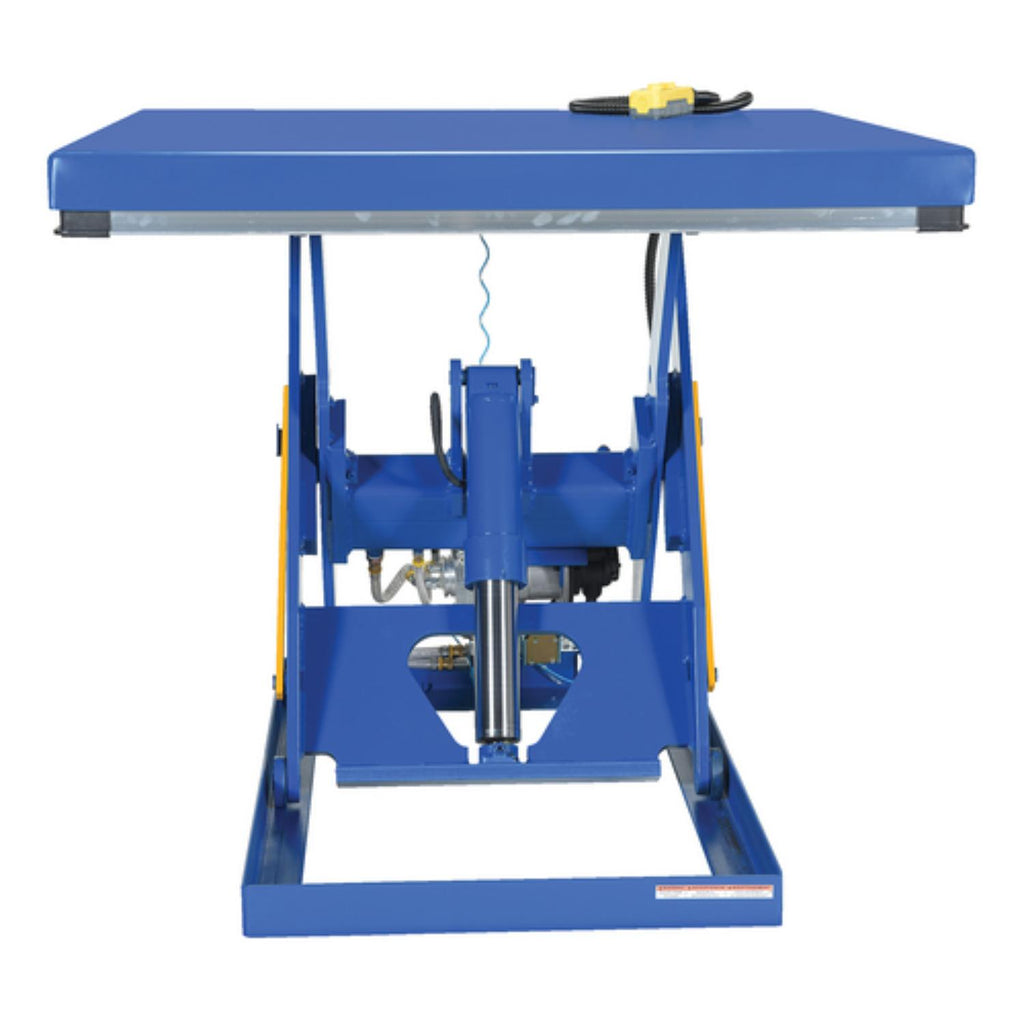

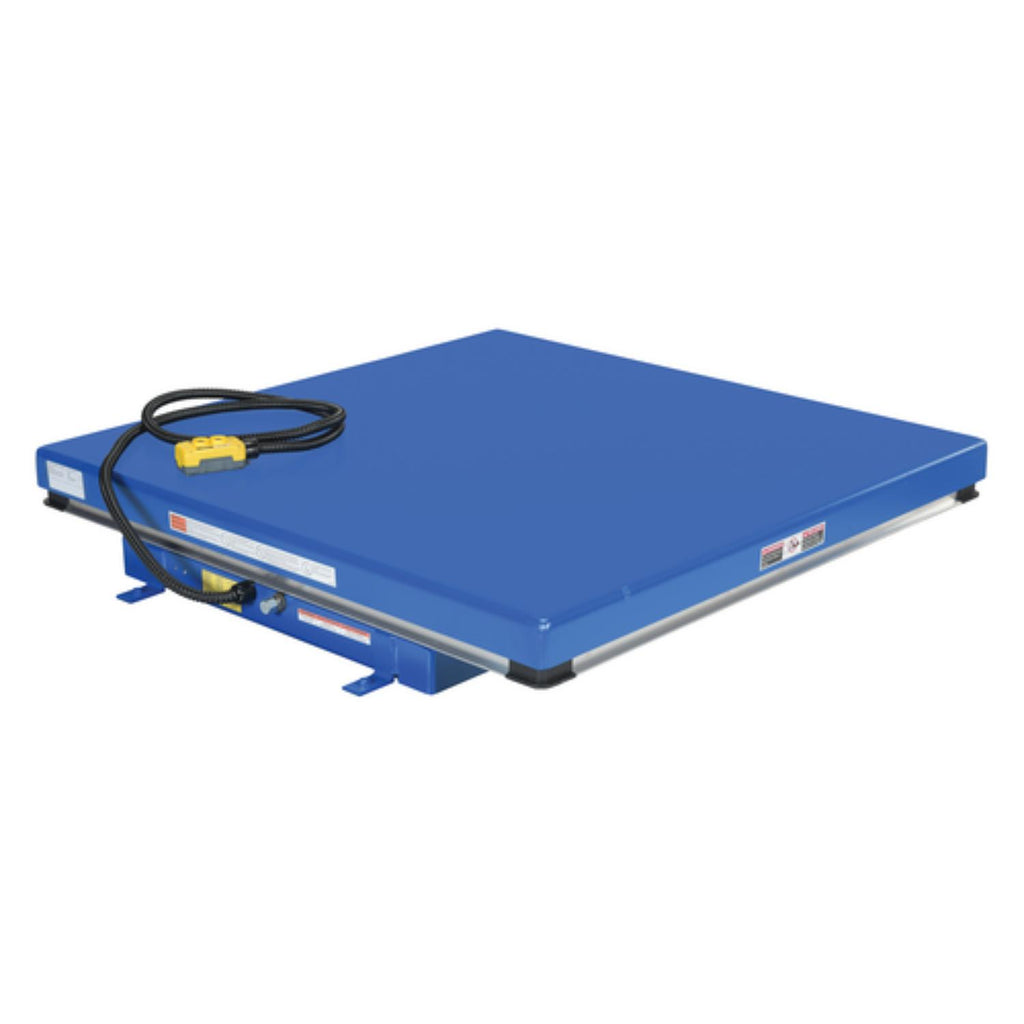

The rotary air/Hydraulic scissor lift table utilizes the convenience of factory air to power the lift table. Simply connect to an air supply through a filter, regulator, lubricator, and you will have a lift table suitable for a wide range of applications and operating environments. It features a pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.
Features
- Utilizes the convenience of factory air for power
- Connect through a filter, regulator, or lubricator
- Suitable for a wide range of applications and environments
- Features a pneumatic upper travel limit switch and safety toe guards
Specifications
| Specification | Details |
|---|---|
| Power Source | Pneumatic |
| Platform Length (in) | 48.375 |
| Platform Width (in) | 43.375 |
| Platform Material | Steel |
| Maximum Height (in) | 43 |
| Minimum Height (in) | 7 |
| Weight Capacity (lbs) | 3000 |
| Color / Finish | Blue |
| Weight (lbs) | 732 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Hand Operated |
| Air Inlet Size (in) | 0.5 |
| Operating Pressure | 80 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 51 |
| Overall Width (in) | 48.375 |
| Overall Height (in) | 7 |
| Maximum Travel Distance (in) | 36 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
