Description
Description

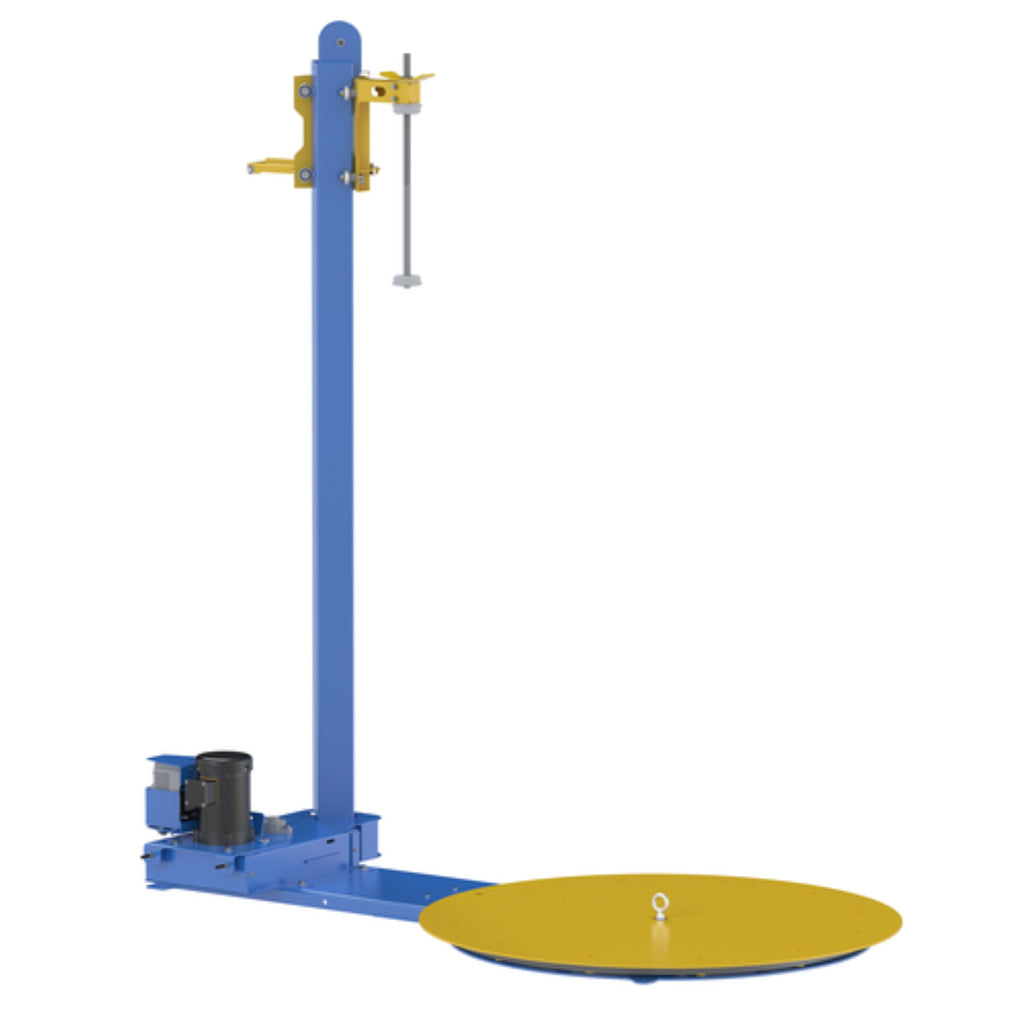

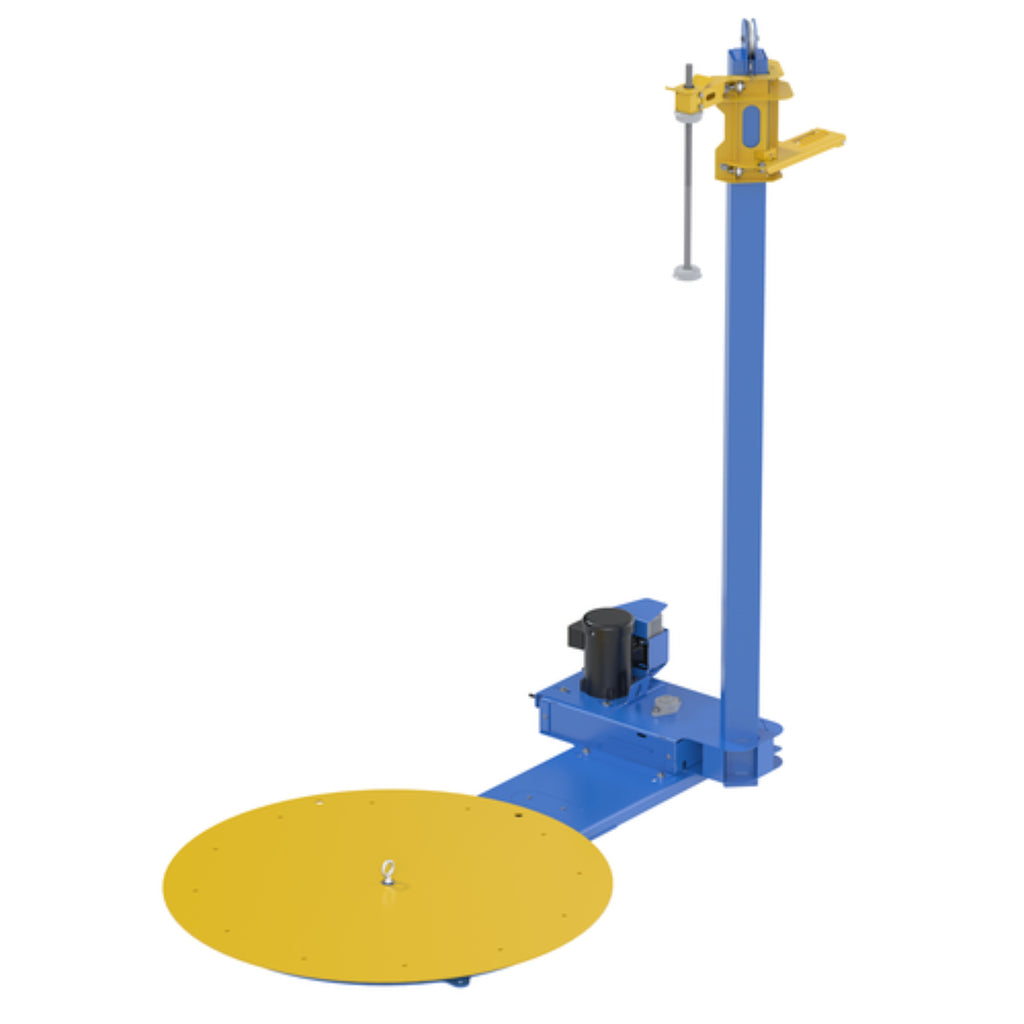

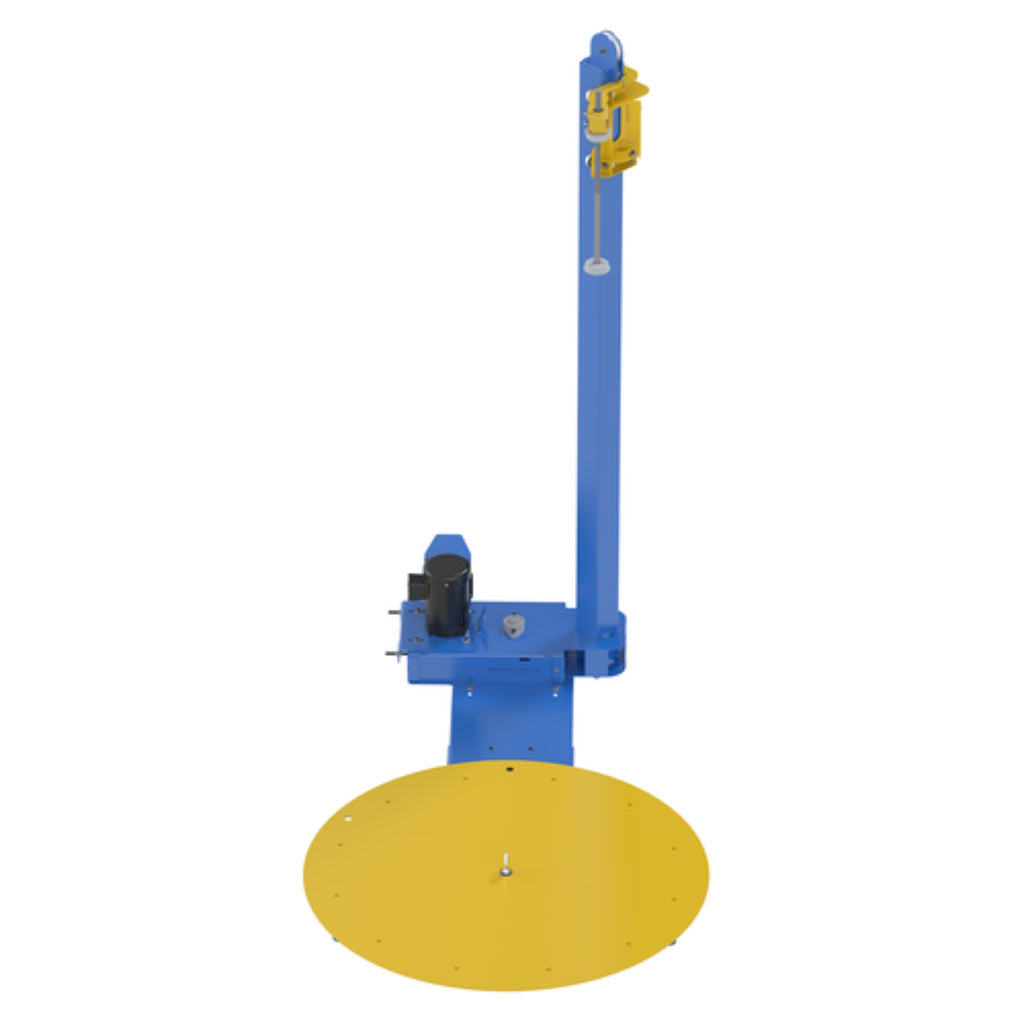

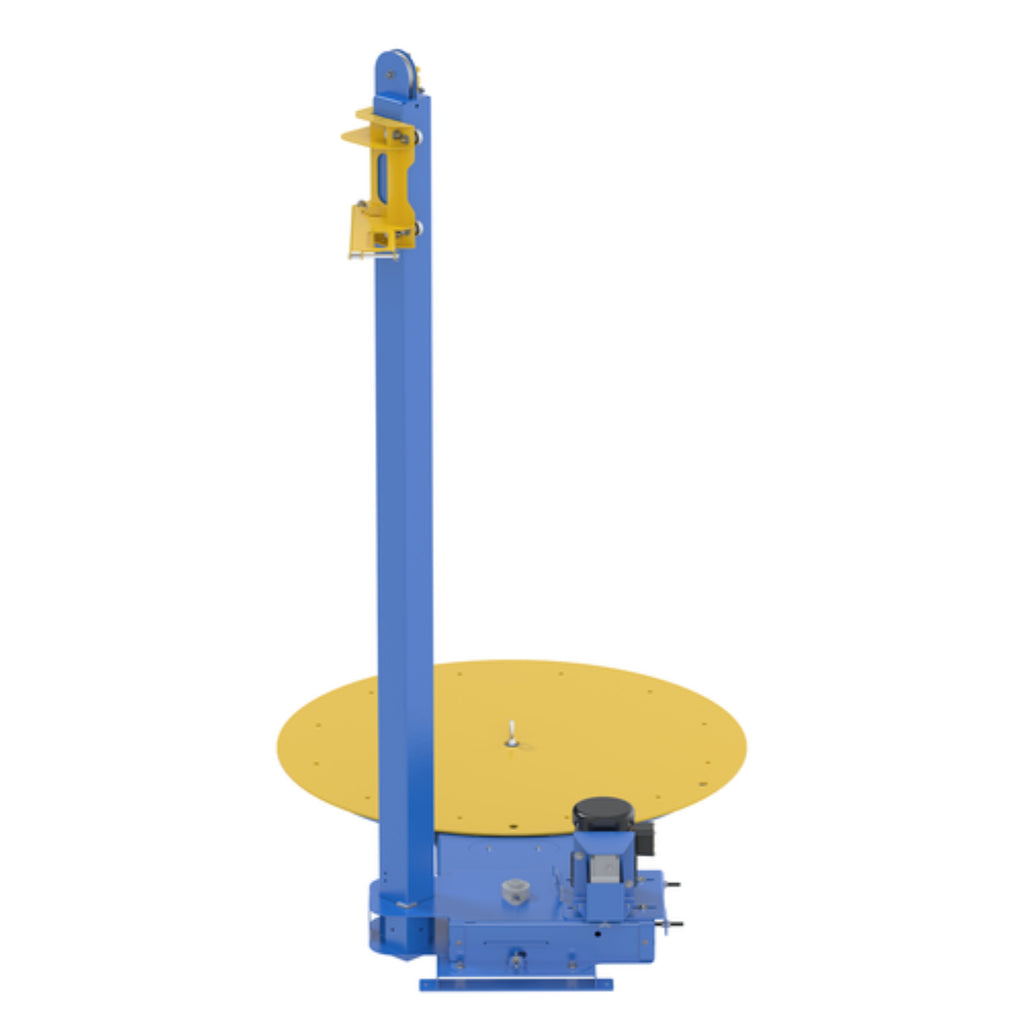

The semi-automatic stretch wrap machine design offers bigger carousel sizes with carousel rotation that is controlled by a foot switch. The power input has variable AC motor that allows adjustable deck speed and includes soft-start/stop. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.
Features
- Stretch wrap design increases shipping productivity
- Simple depress foot pedal powers turntable
- Manual mast allows user to wrap the needed areas
- Steel construction provides a long lasting rugged use
Specifications
| Attribute | Specification |
|---|---|
| Overall Length (in) | 87.125 |
| Overall Width (in) | 50 |
| Overall Height (in) | 92.375 |
| Capacity (lbs) | 4000 |
| Color / Finish | Yellow (Deck), Blue (Frame) |
| Housing Material | Steel |
| Weight (lbs) | 544 |
| Turntable Diameter (in) | 50 |
| Turntable Height (in) | 2.06 |
| Maximum Compatible Load Diameter (in) | 64 |
| Maximum Wrap Height (in) | 82 |
| Minimum RPM | 3 |
| Maximum RPM | 12 |
| Min/Max Stretch Wrap Core Diameter (in) | 3 |
| Max Stretch Wrap Outside Diameter (in) | 11 |
| Stretch Wrap Width (in) | 10 – 20 |
| Scale Included | No |
| Power Cord Length (ft) | 8 |
| Motor Horsepower (hp) | 0.5 |
| Motor Voltage (V) | 115 |
| Motor Amperage | 1.8 |
| Phase | Single Phase |
| Stretch Wrap Film Quantity Included | None Included |
| Additional Contents | NEMA 5-15 Plug |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
