Description
Description

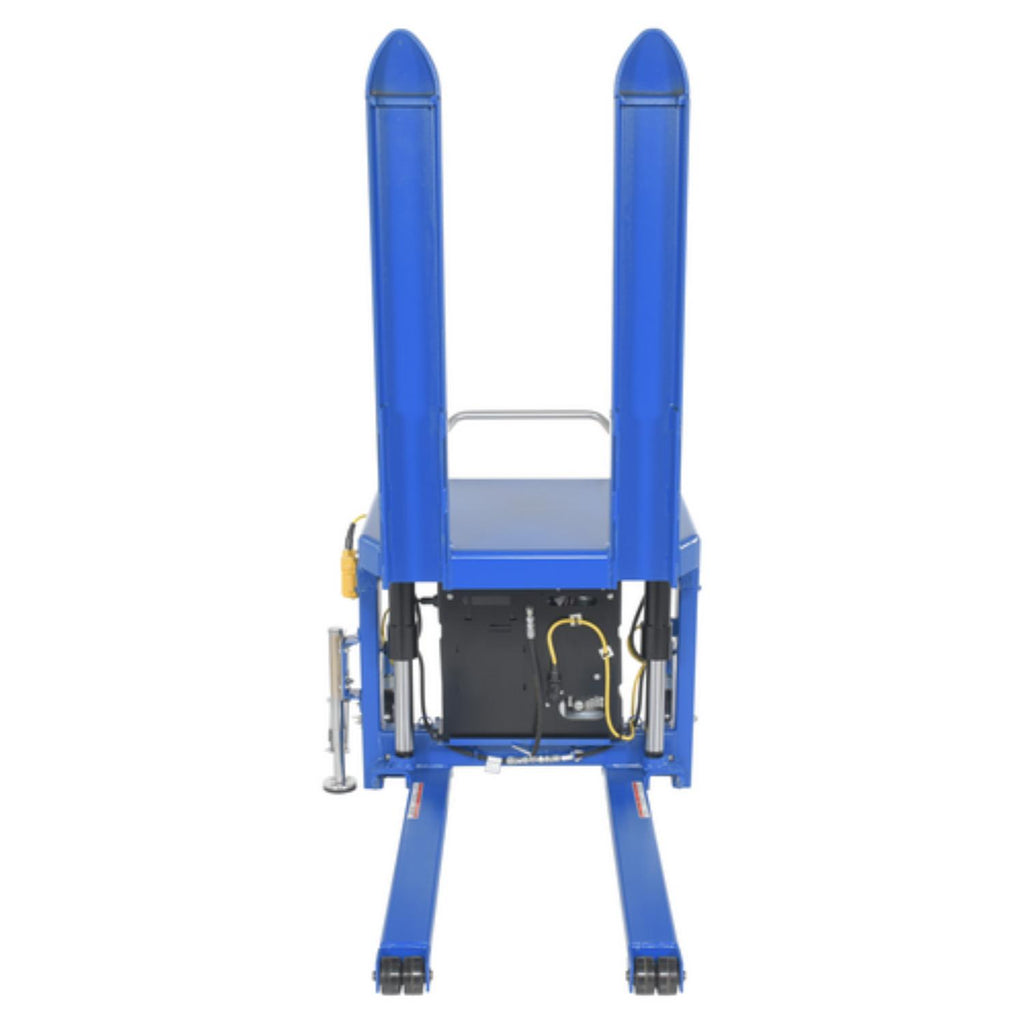

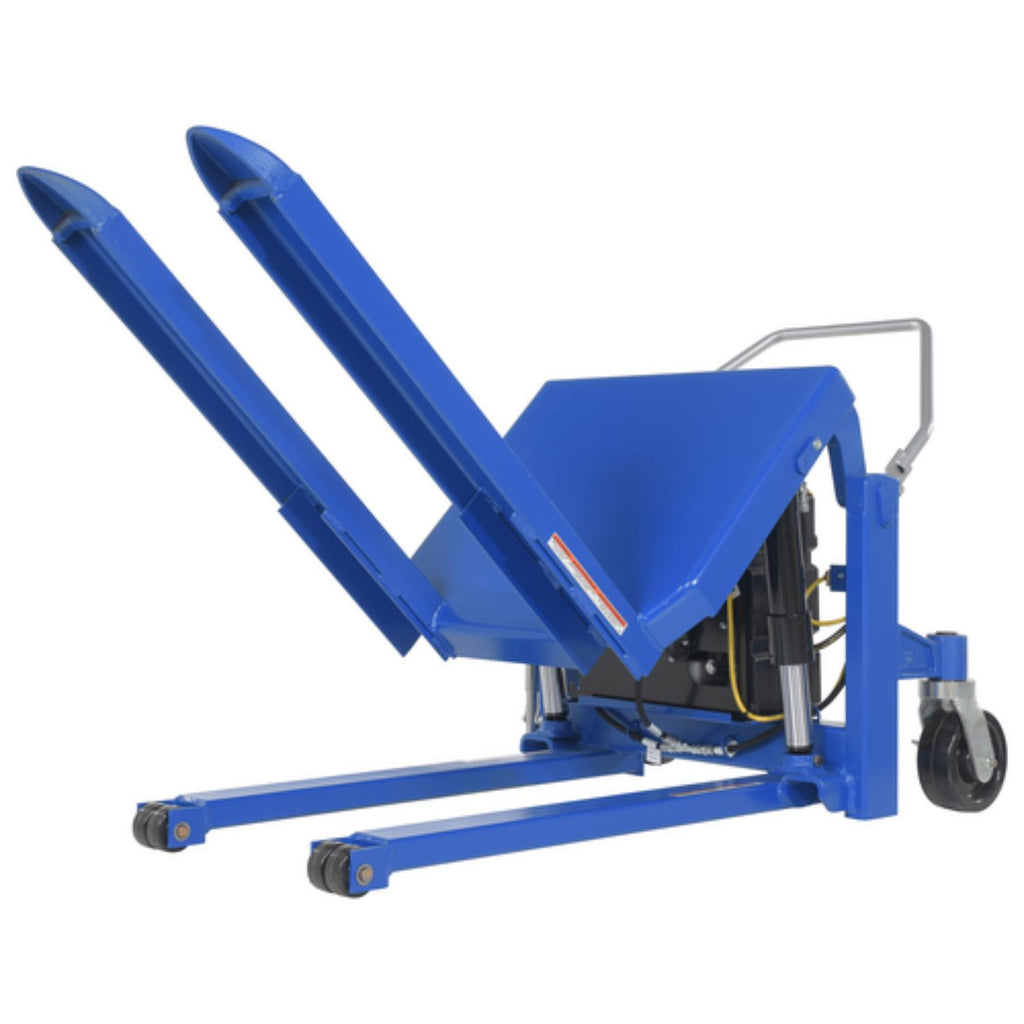

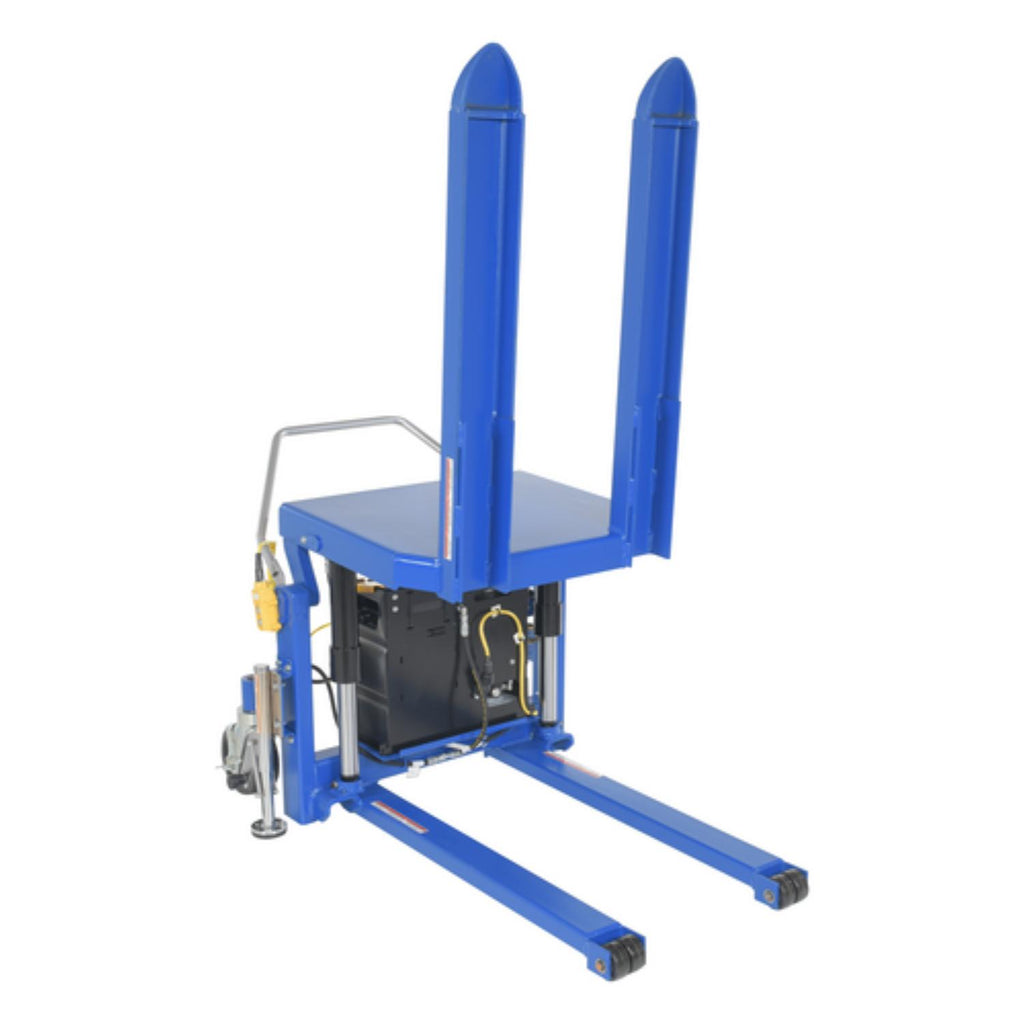

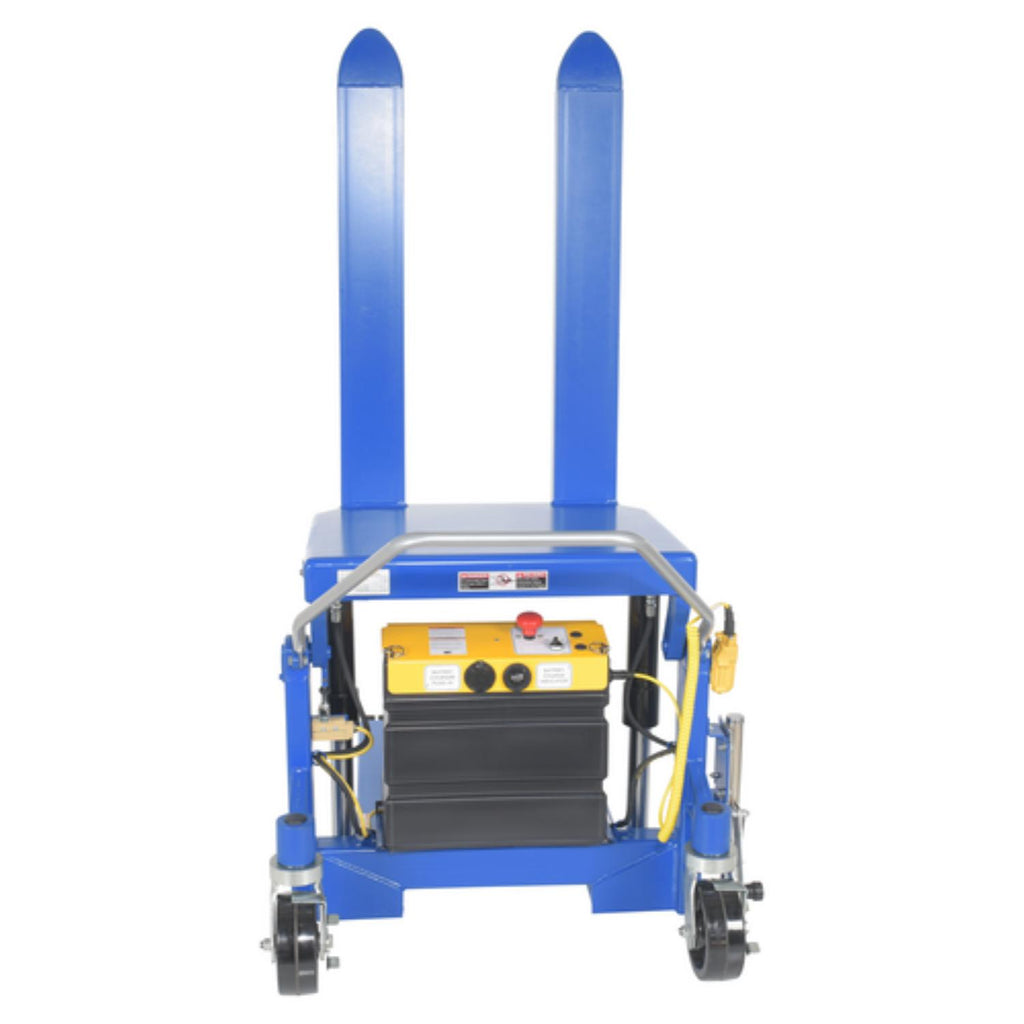

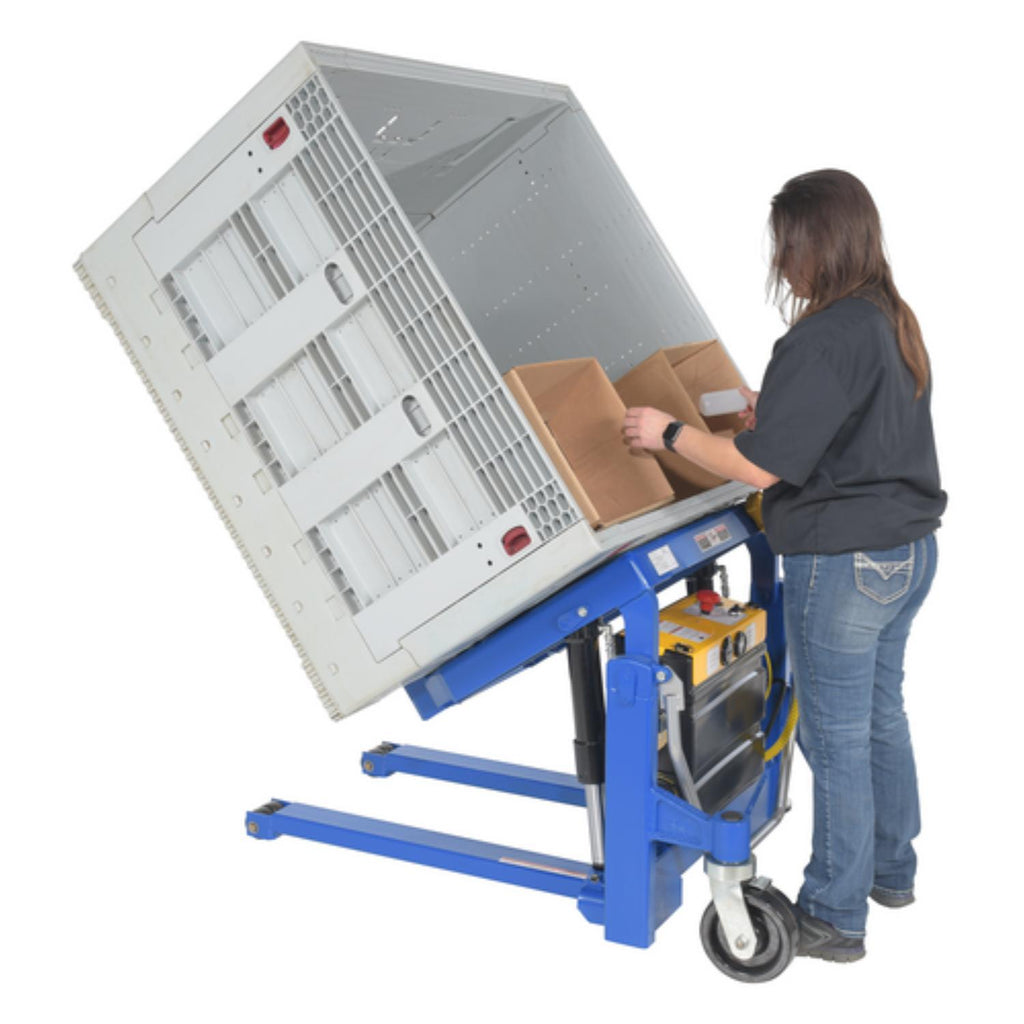

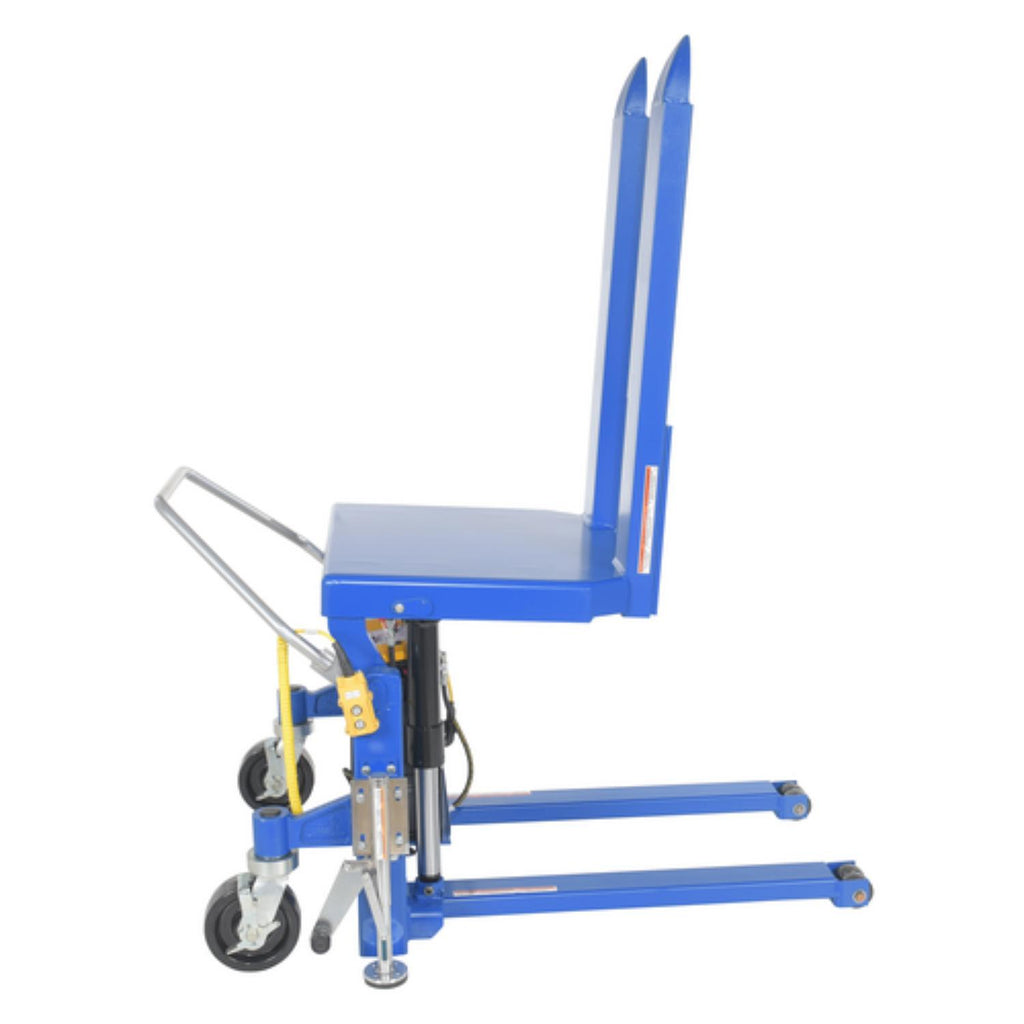

The tilt master lifts and positions filled tote boxes or baskets. It also functions as a transporter, by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an electric DC motor that includes an on-board battery charger and battery charge indicator.
Features
- Folding ergonomic handle
- Two rigid and two swivel casters provide smooth and efficient mobility
- 90 Degrees tilt angle allows for better ergonomic access
- Push button hand control for quick lifting and lowering
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Cordless |
| Color / Finish | Blue |
| Weight Capacity (lbs) | 2000 |
| Overall Height (in) | 28.3125 |
| Overall Length (in) | 75.5625 |
| Overall Width (in) | 41.0625 |
| Maximum Height (in) | 33 |
| Minimum Height (in) | 3.625 |
| Maximum Travel Distance (in) | 29.375 |
| Overload Protection | Yes |
| Battery Charger Included | Yes |
| Phase | Not Applicable |
| Voltage (V) | 12 |
| Fork Height (in) | 3.5 |
| Fork Length (in) | 38.125 |
| Fork Width (in) | 6 |
| Minimum Width Between Forks (in) | 26 |
| Number of Casters / Wheels | 6 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Width (in) | 3 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 3 |
| Front Wheel Width (in) | 1.5 |
| Front Wheel Material | Phenolic |
| Weight (lbs) | 767 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
