Description
Description

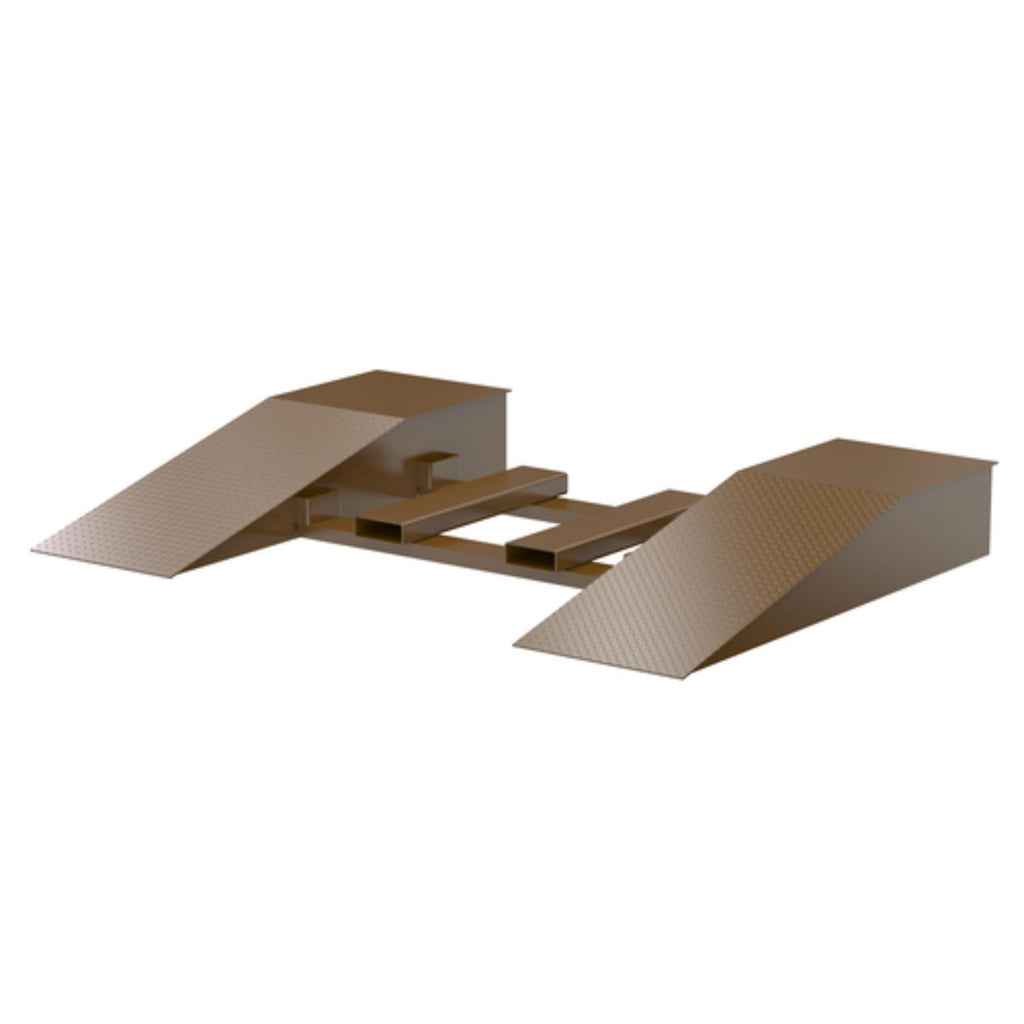

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.
Features
- Built-in fork pocket loop
- Raised diamond tread plate surface provides a non-slip grip
- 24" fork pocket center
- 1/4" thick material
Specifications
| Specification | Value |
|---|---|
| Compatibility | SWR MODELS |
| Color / Finish | Brown / Liquid Coat |
| Material | Steel |
| Length (in) | 72.0625 |
| Width (in) | 24 |
| Height (in) | 8.25 |
| Load Weight Capacity (lbs) | 40000 |
| Attachment Method | Factory Installed |
| Package Contents | (2) Factory Installed Fork Pockets |
| Manufacturer Warranty | 30 Days |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
