Description
Description

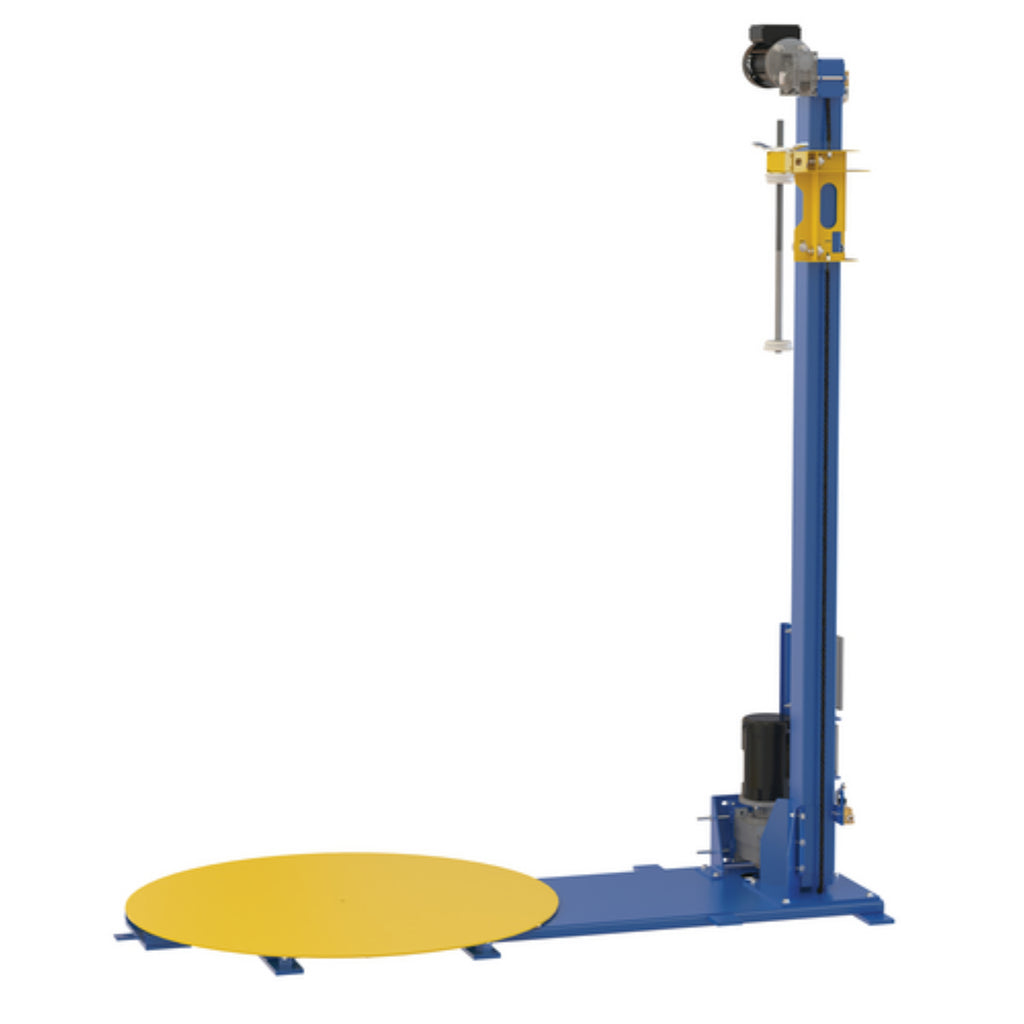

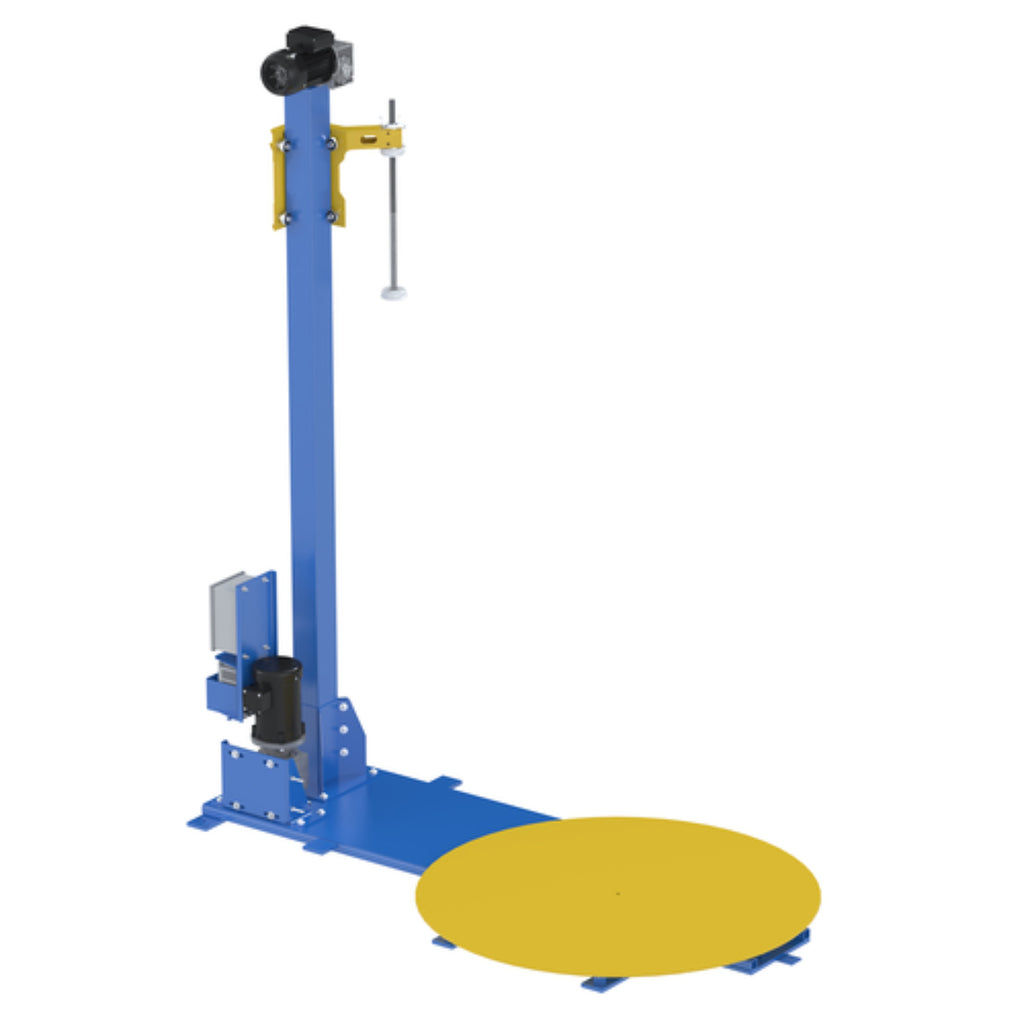

The semi-automatic stretch wrap machine is a great addition to the shipping department or at the end of a production line. This unit is complete with a powered turntable and counter-balanced stretch film mast. The unit's motor has a soft start/stop and variable speed control (3-12 RPM). It comes with one film rod with special spacers that can be used with any height roll stretch wrap material between ten (10) and twenty (20) inches. Table rotation is powered by a foot control. Mast movement is powered by a 24V hand control.
Features
- Stretch wrap design increases shipping productivity
- Simple depress foot pedal powers turntable
- Manual mast allows user to wrap the needed areas
- Steel construction provides a long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Overall Length (in) | 83.75 |
| Overall Width (in) | 48 |
| Overall Height (in) | 98.75 |
| Capacity (lbs) | 4000 |
| Color / Finish | Yellow (Deck), Blue (Frame) |
| Housing Material | Steel |
| Weight (lbs) | 574 |
| Turntable Diameter (in) | 48 |
| Turntable Height (in) | 2.375 |
| Maximum Compatible Load Diameter (in) | 62 |
| Maximum Wrap Height (in) | 80.31 |
| Minimum RPM | 3 |
| Maximum RPM | 12 |
| Minimum Compatible Stretch Wrap Core Diameter (in) | 3 |
| Maximum Compatible Stretch Wrap Core Diameter (in) | 3 |
| Maximum Compatible Stretch Wrap Outside Diameter (in) | 11 |
| Minimum Compatible Stretch Wrap Width (in) | 10 |
| Maximum Compatible Stretch Wrap Width (in) | 20 |
| Scale Included | No |
| Power Cord Length (ft) | 8 |
| Motor Horsepower (hp) | 0.5 |
| Motor Voltage (V) | 115 |
| Motor Amperage | 6 |
| Phase | Single Phase |
| Stretch Wrap Film Quantity Included | None Included |
| Additional Contents | Features NEMA 5-15 Plug |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
