Description
Description

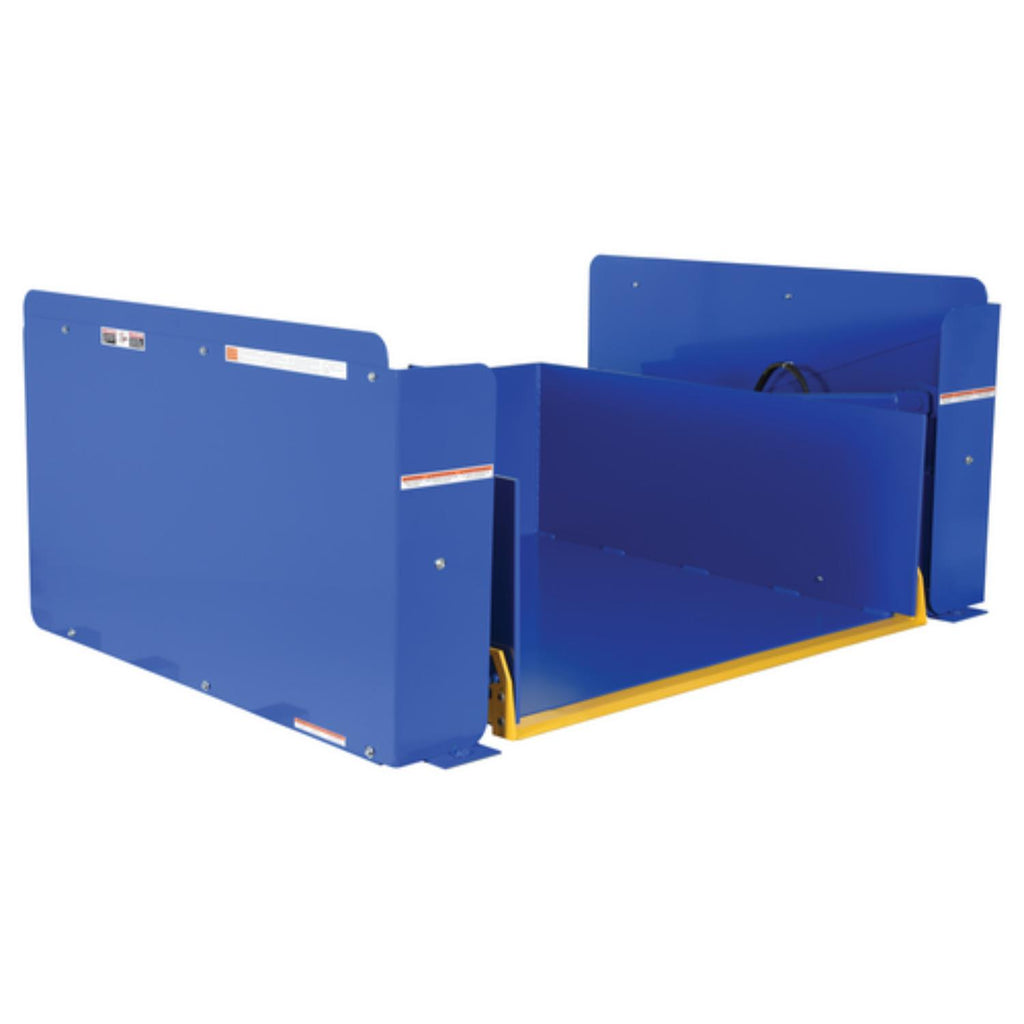

The zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.
Features
- 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
- Lift and tilt options are controlled separately allowing a precise working angle for the employee
- No pit mounting required makes installation quick and easy
- Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Specifications
| Feature | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 51.5 |
| Platform Width (in) | 44 |
| Platform Material | Steel |
| Height at Level (in) | 36 |
| Lip Height (in) | 20.25 |
| Maximum Tilt Angle (°) | 45 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 1926 |
| Frame Material | Steel |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft) | 2 |
| Operation Method | Push Button |
| Controller Cord Length (ft) | 8 |
| Voltage (V) | 460 |
| Installation Hardware Included | No |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
