Description
Description

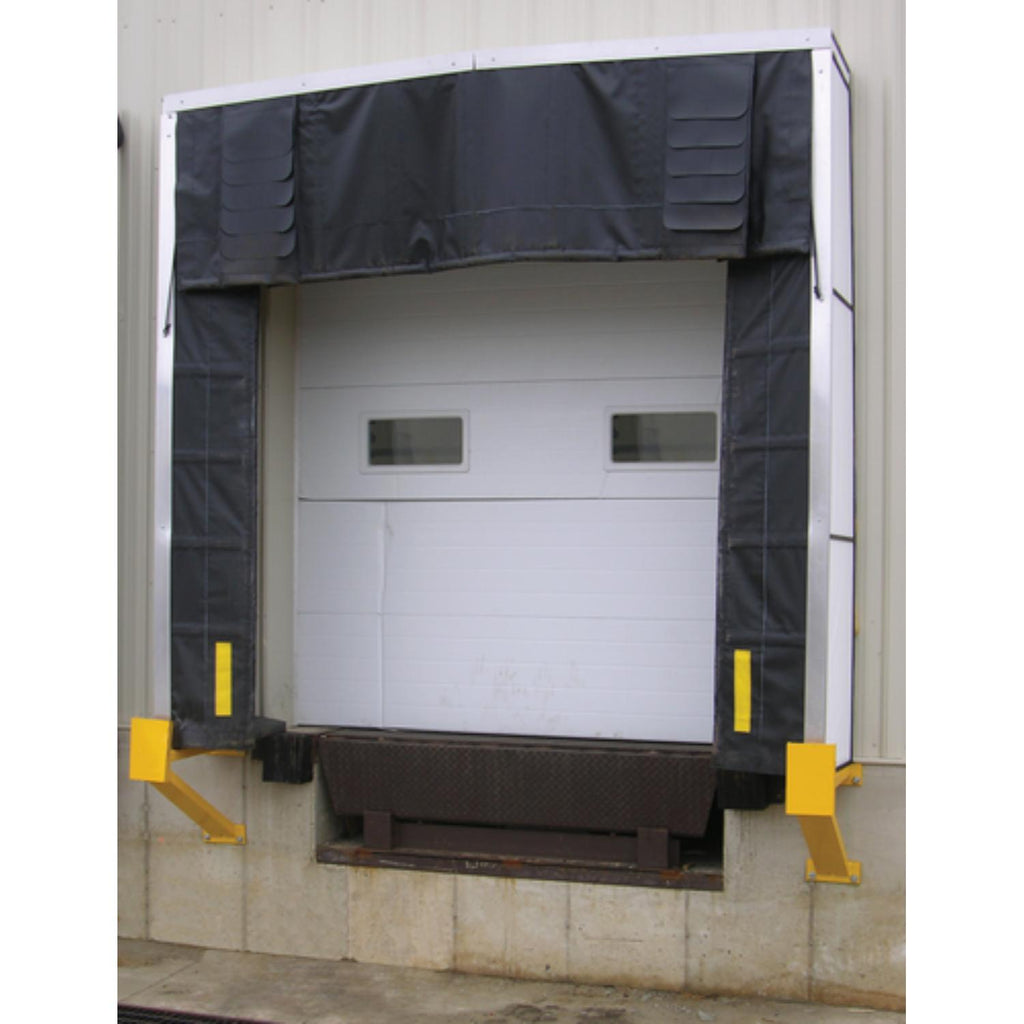

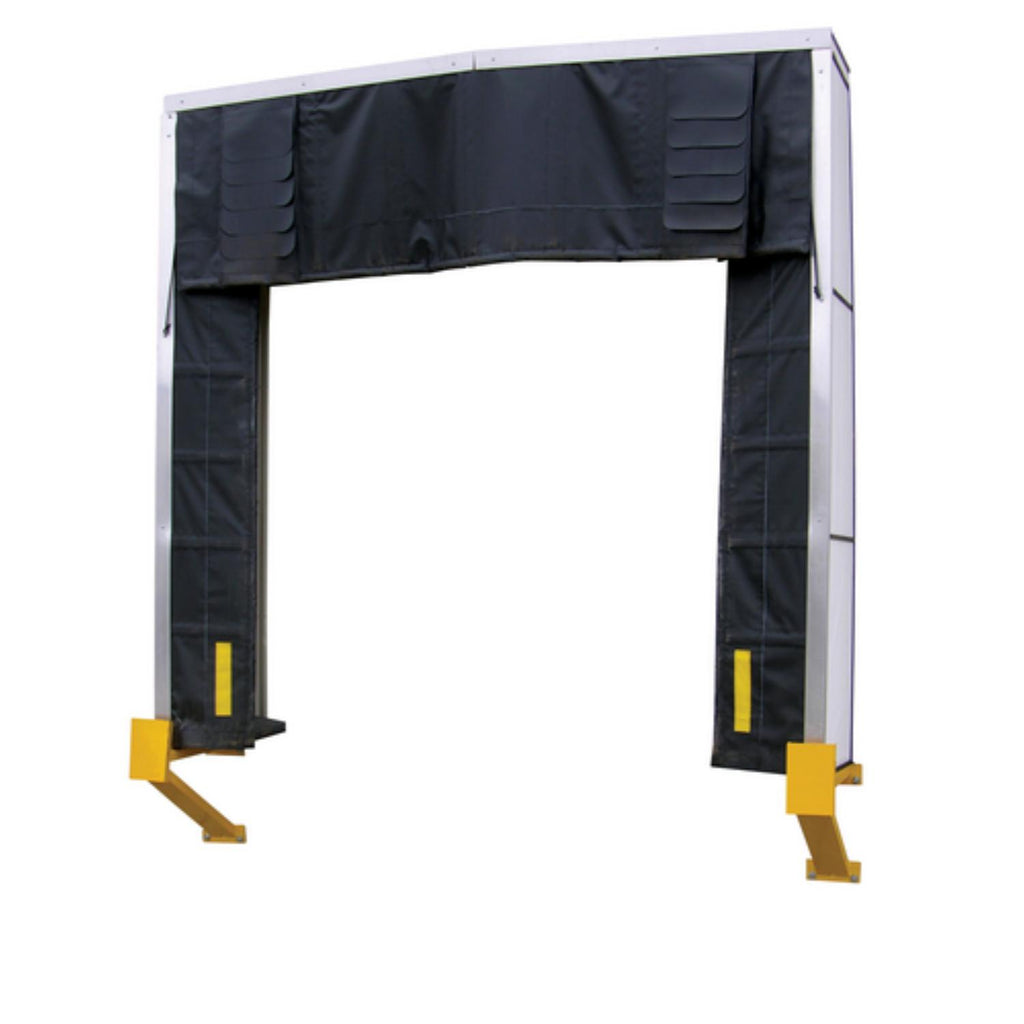

The Dock Shelter is used with doors up to one-hundred twenty (120) inch width by one-hundred twenty (120) inch height. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staved are sewn into the flaps. Seal is formed along the fronts and top of trailer when the vertical and top panels are pushed inward by the trailer. There has a recommended minimum trailer penetration for a good seal with a supporting structure that is made of wolmanized lumber. Shelter is protected by safety yellow steel guide protectors. When installed, the shelter will close the door opening down to ninety (90) inch width by ninety (90) inch height (between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra sealing action. This unit is non-returnable.
Features
- Three foam-filled pads offer full dock protection
- Maximum compression design offers the maximum protection
- Built-in air tunnels allow air to escape when contacted by a trailer
- Mounting hardware and installation instructions make installation quick and easy
Specifications
| Specification | Value |
|---|---|
| Color / Finish | Black |
| Overall Height (in) | 126 |
| Overall Width (in) | 132 |
| Maximum Projection (in) | 36 |
| Door Height (in) | 120 |
| Door Width (in) | 120 |
| Weight (lbs) | 278 |
| Seal Material | Vinyl-Coated Nylon Flaps |
| Curtain Material | Vinyl |
| Frame Material | Wolmanized Lumber/Aluminum |
| Shelter Material | Vinyl |
| Head Curtain Drop (in) | 36 |
| Maximum Recommended Compression (in) | 10 |
| Retractable | No |
| Top Seal Width (in) | 132 |
| Top Seal Height (in) | 90 |
| Side Seal Height (in) | 126 |
| Side Seal Width at Wall (in) | 42 |
| Mounting Hardware Included | Yes |
| Attachment Method | Bolt on Mounted |
| Additional Contents | Includes Standard Guide Strips 24 In. Height |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
